TP-6150/NP 15-inch Resistive Touch Panel Monitor, RS-232/USB, w/o PSU
15-inch 1024 x 768 panel mount touch monitor with a 5-wire resistive touch panel, RS-232 or USB connectivity and an IP65 front panel. Supplied without power supply.
- 15-inch TFT LCD with 1024 x 768 resolution and 400 cd/m2 brightness
- Resistive touch panel (5-wire analog, 80% light transmission)
- Full-function OSD control for display adjustment
- IP65-rated front panel with aluminium front bezel
- RS-232 (combo) and USB interfaces
- Wide operating temperature range of -20 to +70 °C
826,00 € pro Stück
| 1–9 Stück | 826,00 € | |
|---|---|---|
| 10–30 Stück | 802,00 € | −3 % |
| ab 31 Stück | 785,00 € | −5 % |
Produktinformationen "TP-6150/NP 15-inch Resistive Touch Panel Monitor, RS-232/USB, w/o PSU"

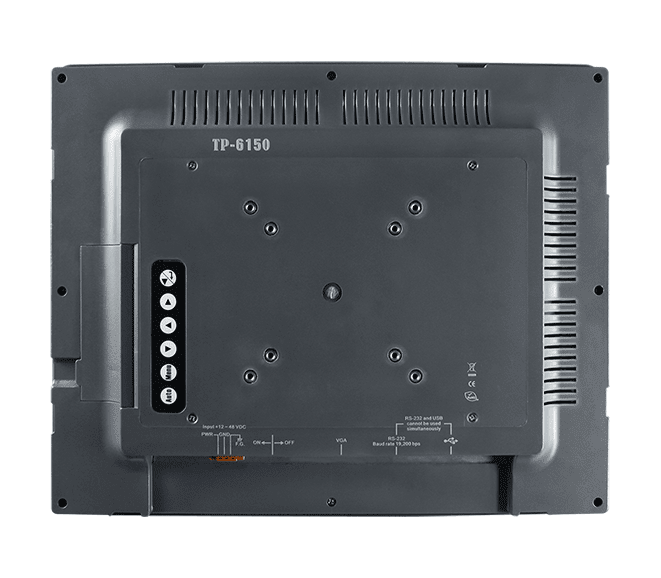

TP-6150/NP CR is a 15-inch TFT LCD touch monitor for panel mounting, aimed at operator interfaces on industrial control systems. It combines a 1024 x 768 display with a resistive touch panel and an IP65-rated front panel, and it can be installed in a panel cut-out or on a VESA 75 mm or 100 mm mounting pattern.

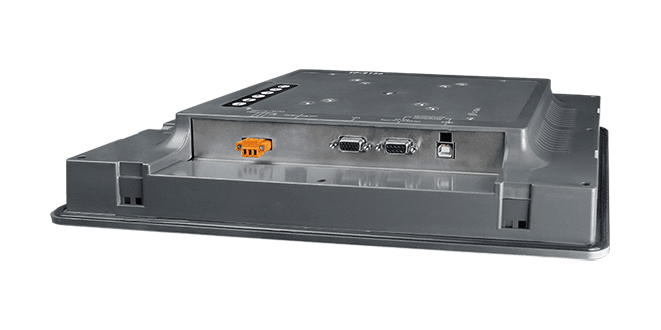

The NP suffix indicates the variant without a power supply, so a +12 to 48 VDC supply must be provided separately. The unit includes a single RS-232 port (combo) and one USB port, and its on-screen display allows brightness, contrast, clock, phase, position and sharpness adjustments. The manufacturer states that the monitor works with ICP DAS WP8000, LinPAC and XP-9000 series PAC controllers.
Driver support covers Windows, Windows IoT, Windows Embedded Standard, Windows Embedded Compact, and Linux. The operating range is -20 to +70 °C, and the unit carries CE, UKCA, FCC, RoHS and WEEE declarations.
Applications
- Operator panels and HMI for PAC-based control systems
- Panel-mounted machine and process control stations
- Touch-operated monitoring in harsh or temperature-variable environments
| Product type: | Touch monitor |
|---|---|
| Interface: | RS-232 (combo), USB |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel, VESA |
| Housing: | IP65 front, plastic casing |
Technische Daten
| Software | |
|---|---|
| OS Support | Windows 10/11/ 8/7/ XP (32/64-bit), Windows 10 IoT Enterprise, Windows Embedded Standard 7 Windows Embedded Compact (WinCE 5.0/6.0/7.0), Linux (32/64-bit) |
| Display | |
| Size | 15" |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 1024 x 768 |
| Touch Panel | 5-wire, analog resistive; light transmission: 80% |
| Contrast Ratio | 500：1 |
| LED Indicators | |
| Status | 1 x Power, 1 x Display |
| HMI | |
| Power Switch | Yes |
| OSD Control | Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness |
| COM Ports | |
| Ports | 1 x RS-232 (Combo) |
| USB | |
| Ports | 1 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 14.4 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 381 x 305 x 65 (W x L x H) |
| Installation | Panel Mounting, VESA Mounting (75 mm x 75 mm, 100 mm x 100 mm) |
| Ingress Protection Rating | Front panel: IP65 |
| Weight | 2775 g |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
