TP-7170/NP 17-inch Resistive Touch Panel Monitor, 1280 x 1024, No PSU
17-inch 1280 x 1024 resistive touch panel monitor with RS-232 or USB, IP65 front panel and -20 ~ +70 °C operating range. Supplied without power supply.
- 17-inch TFT LCD, 1280 x 1024 resolution, 350 cd/m2 brightness
- 5-wire analogue resistive touch panel, 80% light transmission
- Front panel rated IP65 (NEMA 4) with rugged aluminium bezel
- Wide operating temperature -20 ~ +70 °C
- One RS-232 combo port and one USB port
- Full-function OSD control for display adjustment
997,00 € pro Stück
| 1–9 Stück | 997,00 € | |
|---|---|---|
| 10–30 Stück | 967,00 € | −3 % |
| ab 31 Stück | 947,00 € | −5 % |
Produktinformationen "TP-7170/NP 17-inch Resistive Touch Panel Monitor, 1280 x 1024, No PSU"

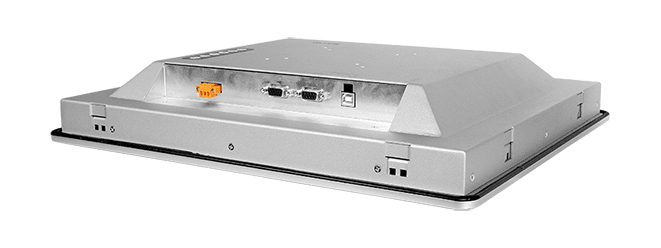

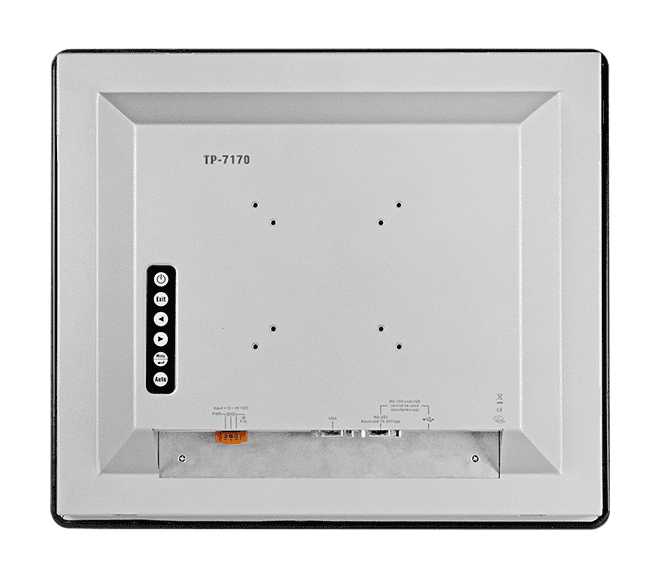

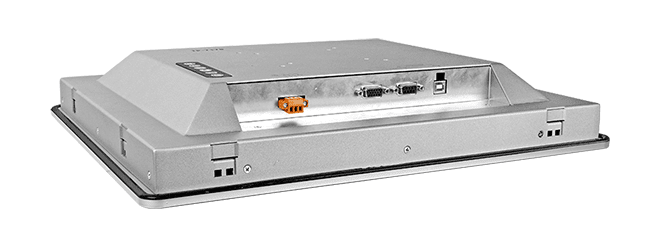

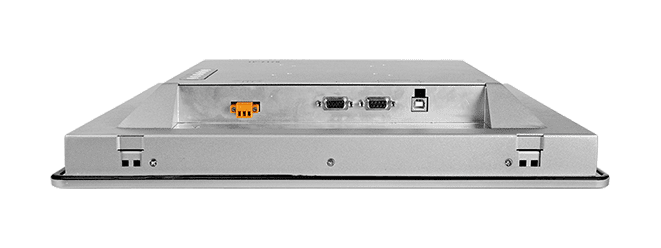

The TP-7170/NP CR is a panel mount touch monitor built around a 17-inch TFT LCD with 1280 x 1024 resolution and a 5-wire analogue resistive touch layer. It suits operator interfaces that need a rugged front bezel, front-panel IP65 protection and a wide -20 ~ +70 °C operating range.
The /NP suffix identifies the variant without a power supply, so a separate +12 ~ 48 VDC source is required (consumption 22.0 W). The unit provides one RS-232 combo port and one USB port, and the on-screen display covers brightness, contrast, clock, phase, position and sharpness adjustment.
ICP DAS states that the TP-7170 is guaranteed to work with its PAC control systems, including the WP8000, LinPAC and XP-9000 series. Driver support is listed for Windows, Windows IoT, WES, WinCE and Linux.
Applications
- Operator panels for PAC-based control systems
- Panel-mounted HMI where front-panel IP65 protection is required
| Product type: | Touch monitor |
|---|---|
| Interface: | RS-232, USB |
| Ports: | 1 RS-232 (combo), 1 USB |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel, VESA |
| Housing: | Plastic |
Technische Daten
| Software | |
|---|---|
| OS Support | Windows 10/11/ 8/7/ XP (32/64-bit), Windows 10 IoT Enterprise, Windows Embedded Standard 7 Windows Embedded Compact (WinCE 5.0/6.0/7.0), Linux (32/64-bit) |
| Display | |
| Size | 17" |
| Backlight Life | 50,000 hours |
| Brightness | 350 cd/m2 |
| Resolution | 1280 x 1024 |
| Touch Panel | 5-wire, analog resistive; light transmission: 80% |
| Contrast Ratio | 500：1 |
| LED Indicators | |
| Status | 1 x Power, 1 x Display |
| HMI | |
| Power Switch | Yes |
| OSD Control | Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness |
| COM Ports | |
| Ports | 1 x RS-232 (Combo) |
| USB | |
| Ports | 1 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 22.0 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 413 x 359 x 70 (W x L x H) |
| Installation | Panel Mounting, VESA Mounting (75 mm x 75 mm, 100 mm x 100 mm) |
| Ingress Protection Rating | Front panel: IP65 |
| Weight | 3550 g |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
