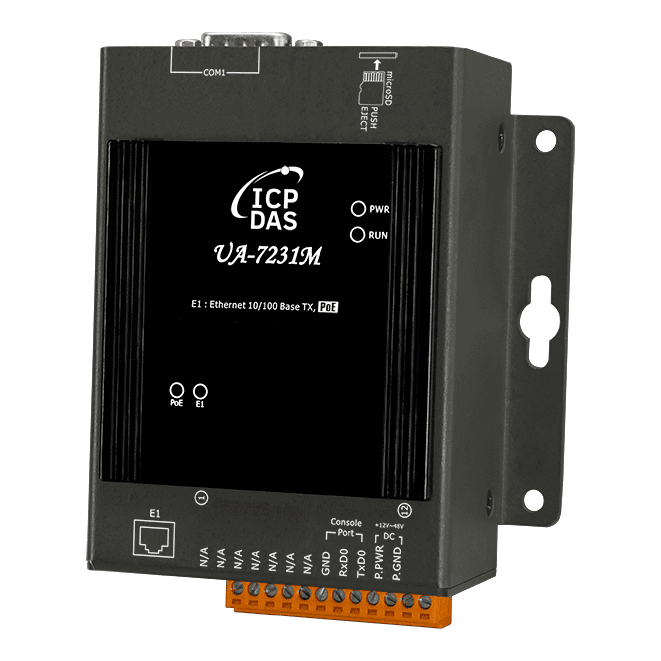

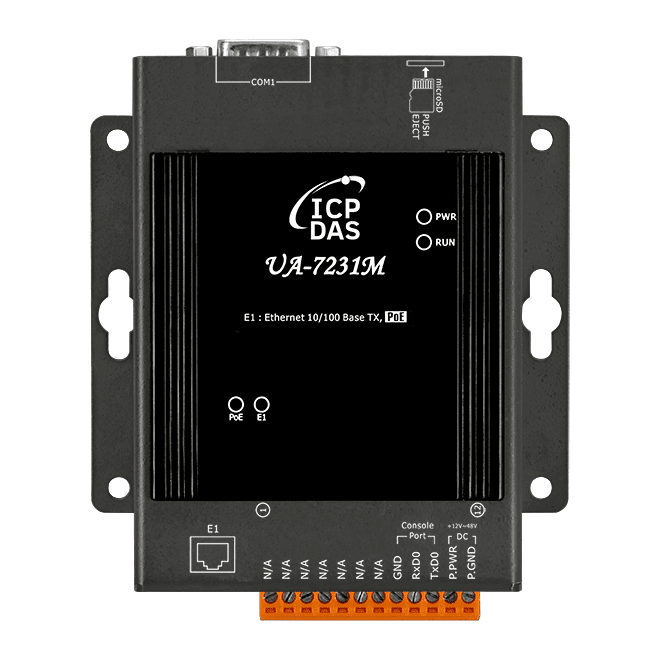

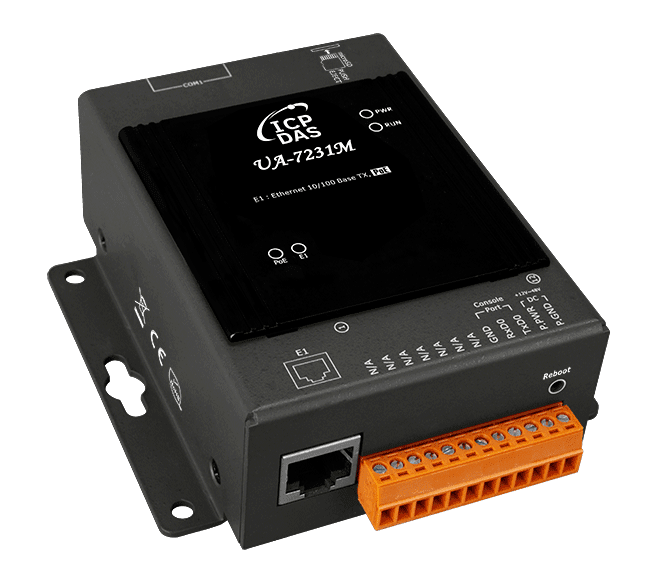

UA-7231M IIoT Communication Server, 1 PoE Ethernet Port, OPC UA/MQTT
IIoT communication server with a PoE Ethernet port, an isolated RS-232/485 COM port and a DIN-rail metal case. Bridges Modbus, EtherNet/IP and MQTT I/O data to OPC UA, MQTT and SNMP.
- Gateway from Modbus TCP, Modbus RTU/ASCII, MQTT and EtherNet/IP sources to OPC UA, MQTT and SNMP outputs
- Simultaneous writing of I/O data to a remote database and a local data logger, with offline data recovery for the remote database
- Built-in MQTT broker, including WebSocket support
- Cloud connection to Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, plus IFTTT event notifications
- Security features include HTTPS, OpenVPN client, SNMP v3, communication encryption, and dynamic blocklist and whitelist
- PID logic operation function and IFTTT logic control triggers
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "UA-7231M IIoT Communication Server, 1 PoE Ethernet Port, OPC UA/MQTT"
The UA-7231M CR is an IIoT communication server that links field devices to IT systems. It polls remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII, MQTT and EtherNet/IP, then republishes that data through OPC UA, MQTT and SNMP, which can run at the same time. This makes it a practical bridge between shop-floor equipment and MES, ERP or SCADA platforms.
Data logging is built in. I/O values can be written to a remote MS SQL, MySQL or MariaDB database, or saved as CSV files on a microSD card. If the remote database becomes unavailable, the offline recovery mechanism helps keep the record intact. Cloud connectivity covers Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, and IFTTT can trigger app notifications from events.

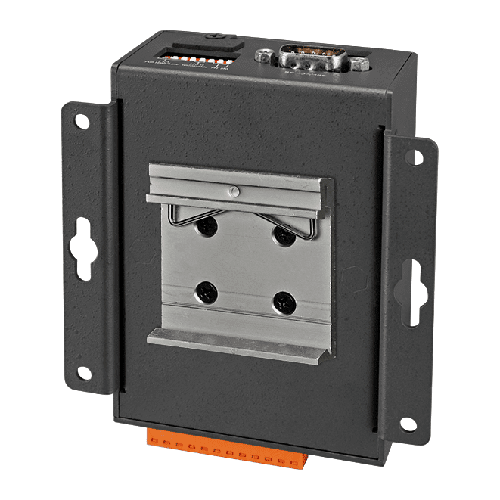

The unit is powered from +12 ~ +48 VDC or via PoE (IEEE 802.3af, Class 1) and mounts on a DIN rail in a metal case. The CR ordering code is the RoHS-listed version of the UA-7231M.
Applications
- Connecting shop-floor I/O and controllers to MES, ERP and SCADA systems
- Industrial IoT data collection and cloud reporting
- Historical data logging to remote databases or local microSD storage
- Event-driven alerts through IFTTT mobile app notifications
| Product type: | IIoT communication server |
|---|---|
| Interface: | RJ-45, RS-232/485 |
| Protocol: | Modbus TCP, MQTT, OPC UA, SNMP |
| Ports: | 2 |
| PoE: | IEEE 802.3af, Class 1 |
| Isolation: | Isolated (COM1) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Technische Daten
| Data Logger | |
|---|---|
| Local Data Logger | Record I/O data, and save to the local MicroSD card in CSV format. |
| Remote Database | Record I/O data, and send to the remote database of MS SQL, MySQL and MariaDB. Support keeping 1 database connection, with a max. 1000 Tags. |
| Software | |
| OS | Linux Kernel 3.2.14 |
| Protocol | · OPC UA Server · MQTT Broker/Client · Modbus TCP Master · Modbus RTU/ASCII Master · EtherNet/IP Scanner · SNMP Agent · OpenVPN Client |
| Function | · PID Function · Internal Module |
| IoT Service Integration | · Microsoft Azure · Amazon Web Services · IBM Cloud · ThingSpeak · IFTTT |
| Main Unit | |
| CPU | ARM CPU, 1.0 GHz |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 8 GB eMMC microSD socket with one 32 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | 64 KB FRAM |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| LED Indicators | |
| Status | 1 x PWR 1 x RUN 1 x Ethernet 1 x PoE |
| HMI | |
| DIP Switch | 1 x 9 Position (1 ~ 8, ON) (System Boot DIP Switch) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| PoE | PoE (IEEE 802.3af, Class 1) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232/485 (COM1) |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | 7N1, 7E1, 7O1, 7N2, 7E2, 7O2, 8N1, 8E1, 8O1, 8N2, 8E2, 8O2 (Among which, Modbus RTU is available in: 8N1, 8E1, 8O1, 8N2) |

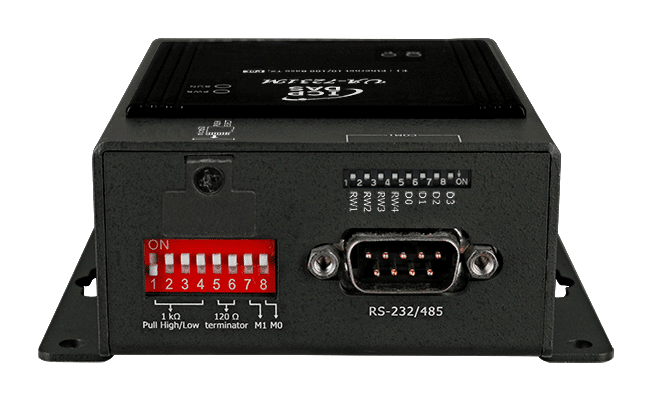

| Bias Resistor | Switch-selectable (1 kΩ for RS-485, Non-Resistor for RS-232) (COM1 DIP Switch) |
| Terminal Resistor | Switch-selectable (120 Ω, Enable/Disable) (COM1 DIP Switch) |
| Isolation | Isolated |
| Power | |
| Input Range | +12 ~ +48 VDC |
| Consumption | 3.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 97 x 114 x 38 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +80°C |
| Humidity | 5 ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
