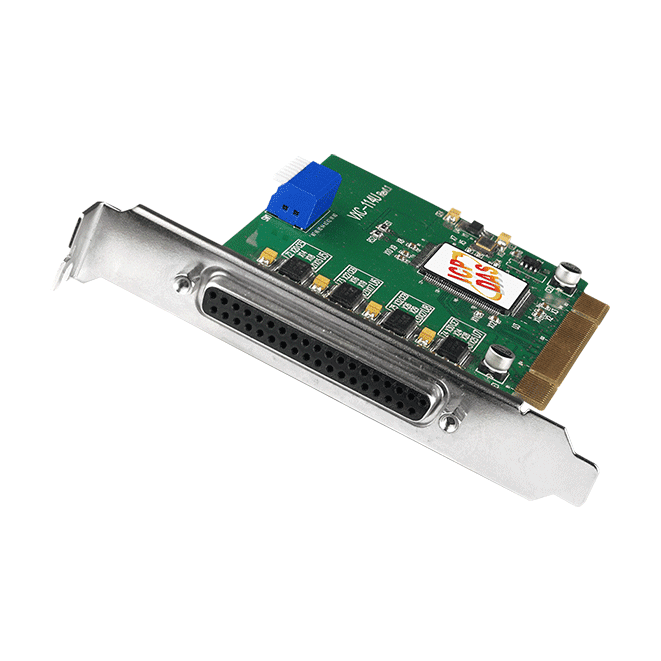

VXC-114U/D2 PCI Serial Communication Board, 4 x RS-232 Ports
Universal PCI serial card providing four RS-232 ports, each with a 128-byte hardware FIFO, for connecting bar code readers, printers, instruments and PCs with RS-232 interfaces.
- Four RS-232 ports on a universal PCI card, supporting 3.3 V/5 V PCI bus
- 128-byte hardware FIFO per port with up to 115200 bps and full-duplex communication
- Up to 128 KB software buffer per COM port under Windows for large file transmission
- Built-in COM-Selector (8-bit DIP switch) for manual COM port numbering, or automatic assignment by the driver
- Supports 5, 6, 7 and 8 data bits, 1, 1.5 and 2 stop bits, and None, Even, Odd, Mark and Space parity
- Short card design with DB-37 female connector
145,00 € pro Stück
| 1–9 Stück | 145,00 € | |
|---|---|---|
| 10–30 Stück | 140,00 € | −3 % |
| ab 31 Stück | 138,00 € | −5 % |
Produktinformationen "VXC-114U/D2 PCI Serial Communication Board, 4 x RS-232 Ports"

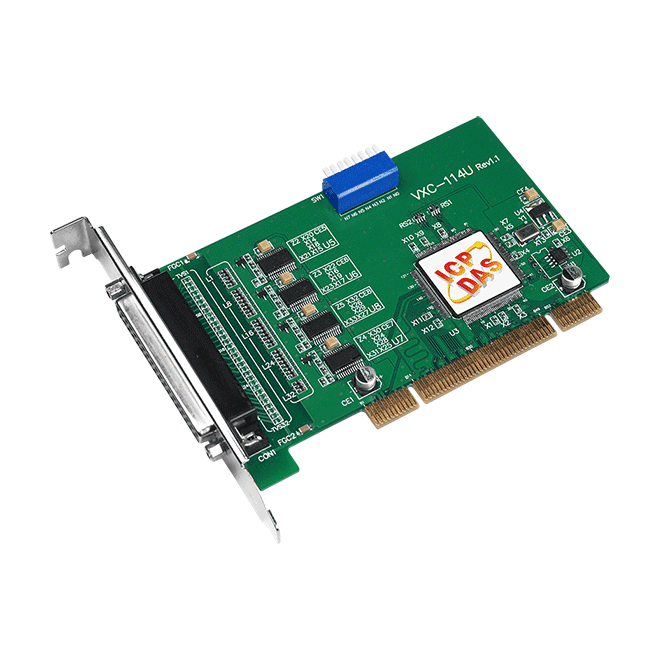

The VXC-114U/D2 CR is a universal PCI serial communication board that adds four RS-232 ports to a PC. It suits engineers who need to connect several serial devices, such as bar code readers, serial printers, intelligent sensors and instrumentation, to a single host without fitting a separate serial adapter for each port.
Each port has a 128-byte hardware FIFO and supports speeds from 50 to 115200 bps, with full-duplex communication. Under Windows, the driver provides a software buffer of up to 128 KB per COM port, which helps with large file transfers. The COM port number can be set manually using the built-in 8-bit DIP switch, or the driver can assign an available number automatically.
This variant is supplied with a CA-9-3715D cable rather than the CA-4002 connector included with the VXC-114U CR. The board uses a DB-37 female connector, is a short card design and supports the 3.3 V/5 V PCI bus.
Applications
- Industrial machinery
- Building automation
- Restaurant appliances
- Laboratory equipment and research
- Industrial communication
| Product type: | Multi-port serial board |
|---|---|
| Interface: | PCI |
| Ports: | 4 |
| Power input: | 3.3 V/5 V PCI bus |
| Operating temperature: | 0 ~ +60 °C |
Technische Daten
| Hardware | |
|---|---|
| Connector | DB-37 (Female) |
| COM-Selector | Yes (8-bit DIP switch) |
| COM Ports | |
| Ports | 4 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND) |
| Baud Rate | 50 ~ 115200 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 128 bytes |
| Power | |
| Consumption | 120 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 84 x 142 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
