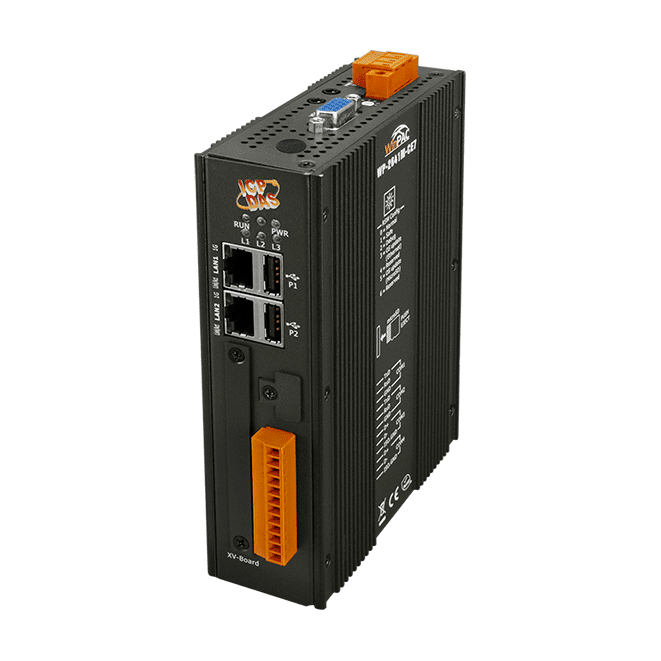

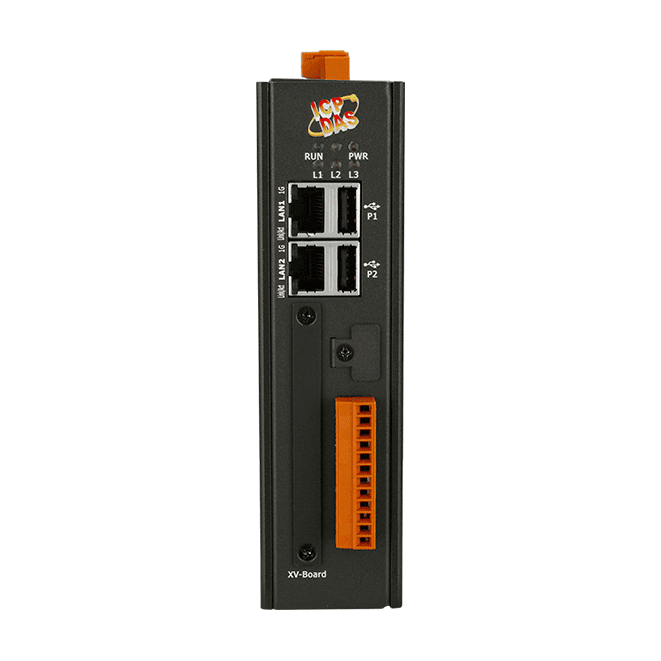

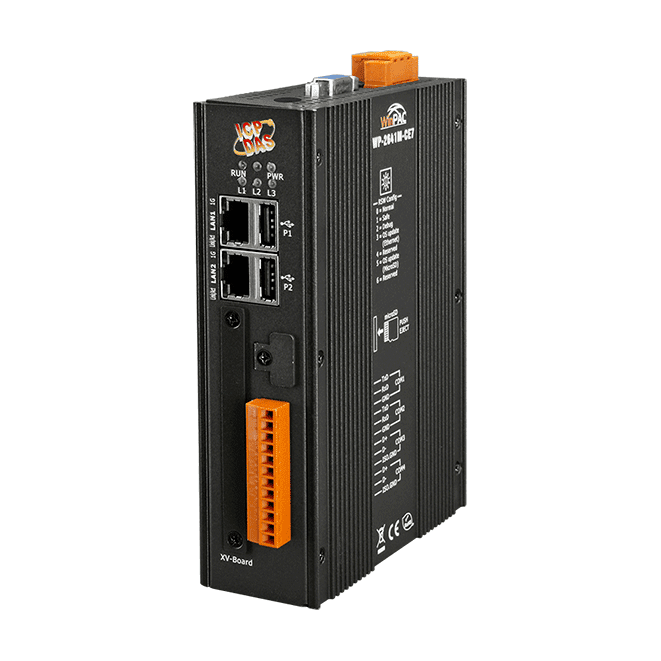

WP-2641M-CE7 WinCE 7.0 PAC with Quad-core Cortex-A9 CPU and I/O Expansion Bus
Quad-core Cortex-A9 PAC running Windows CE 7.0, with an XV-board I/O expansion bus, dual 10/100/1000 Ethernet, four serial ports and a metal DIN-rail housing.
- Quad-core Cortex-A9 CPU at 1 GHz per core running Windows CE 7.0 Professional
- 1 GB DDR3 SDRAM, 8 GB eMMC Flash and optional microSD card up to 32 GB
- FRAM and MRAM non-volatile memory for data retention
- Two 10/100/1000 Base-TX Ethernet ports with auto MDI/MDI-X
- Two RS-232 and two RS-485 serial ports, RS-485 isolated at 2500 VDC
- Two USB 2.0 host ports and built-in VGA output
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "WP-2641M-CE7 WinCE 7.0 PAC with Quad-core Cortex-A9 CPU and I/O Expansion Bus"
The WP-2641M-CE7 is a Windows CE 7.0 PAC built around a quad-core Cortex-A9 processor running at 1 GHz per core. It suits engineers who need a capable embedded controller with Windows-based application development, local display output and a dedicated expansion bus for I/O. The CR ordering variant is the one offered here.
Memory and storage combine 1 GB of DDR3 SDRAM with 8 GB of eMMC Flash, plus an optional microSD card of up to 32 GB for application programs, image files and data. FRAM and MRAM provide non-volatile memory for data retention, and a 64-bit hardware serial number is available for software protection.
Connectivity includes two 10/100/1000 Base-TX Ethernet ports, two RS-232 and two RS-485 serial ports (RS-485 isolated at 2500 VDC), and two USB 2.0 host ports, with a built-in VGA port for display output. The dual watchdog timer, real-time clock and metal casing support dependable operation on a DIN rail across an operating range of -25 ~ +75 °C.
Applications
- Industrial control with a programmable automation controller
- Local HMI applications with VGA display output
- Serial device integration over RS-232 and RS-485
- Embedded Windows CE applications with .Net Compact Framework 3.5 support
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB 2.0, VGA |
| Ports: | 2 Ethernet, 4 serial, 2 USB |
| Isolation: | 2500 VDC (RS-485) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| OS | Windows CE 7.0 Professional |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Quad-core Cortex-A9, 1GHz/Core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 1 GB DDR3 SDRAM |
| Storage | 8 GB eMMC Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 64 KB FRAM; 128 KB MRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |

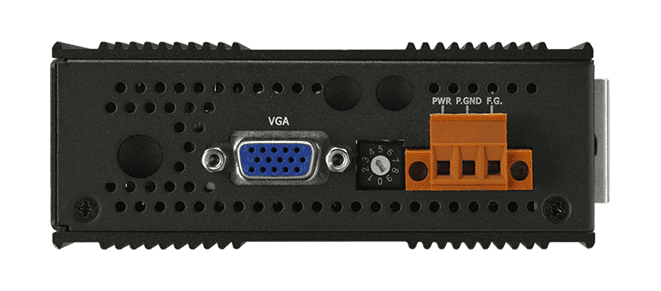

| Signal | VGA |
| Resolution | 640 x 480, 800 x 480, 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 3 x Programmable |
| I/O Expansion | |
| I/O Type | XV-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 2 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 35 x 167 x 119 (W x L x H) |

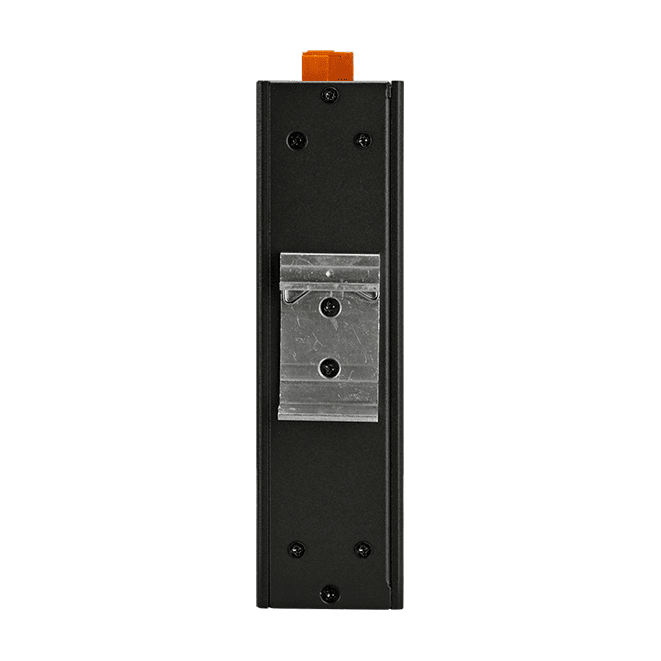

| Installation | DIN-Rail mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
