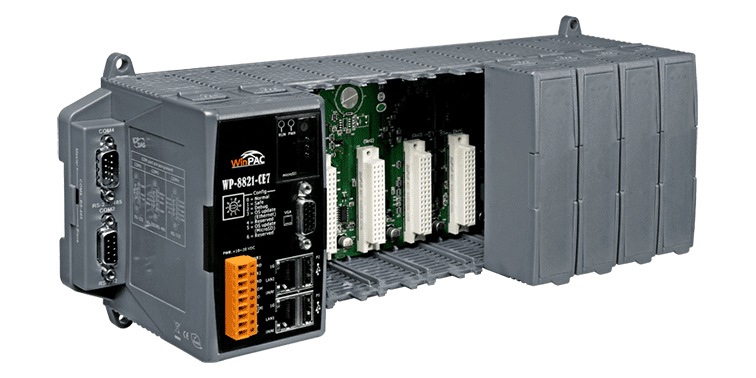

WP-8821-CE7 8-Slot Standard PAC, Cortex-A8 1 GHz with Windows CE 7.0
8-slot Windows CE 7.0 PAC with a 1 GHz Cortex-A8 CPU, 10/100/1000BASE-T Ethernet, four serial ports and eight I/O expansion slots for I-8K and I-87K modules.
- 1 GHz Cortex-A8 CPU running Windows CE 7.0 with hard real-time capability
- Eight I/O expansion slots for I-8K (parallel-type) and I-87K (serial-type) modules
- 512 MB SDRAM, 256 MB Flash, 512 KB MRAM and optional microSD card up to 32 GB
- 2 x 10/100/1000BASE-T Ethernet, 2 x USB 2.0 (host) and built-in VGA port
- 4 serial ports: 2 x RS-232, 1 x RS-485 (3000 VDC isolated), 1 x RS-232/RS-485
- Dual watchdog timer, redundant power input and built-in real-time clock
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "WP-8821-CE7 8-Slot Standard PAC, Cortex-A8 1 GHz with Windows CE 7.0"
The WP-8821-CE7 CR is an 8-slot programmable automation controller built around a 1 GHz Cortex-A8 processor and Windows CE 7.0. It suits engineers who need a PC-style control platform that can run Visual Basic .NET, Visual C#, Visual C++, SCADA or soft PLC software alongside its I/O.
Eight expansion slots accept I-8K (parallel-type) and I-87K (serial-type) I/O modules, allowing the controller to be configured for different signal types. Connectivity includes two 10/100/1000BASE-T Ethernet ports, two USB 2.0 host ports, a VGA port and four serial ports (RS-232 and RS-485).
The 8-slot version provides 512 MB SDRAM, 256 MB Flash and 512 KB MRAM for data retention, with optional microSD storage of up to 32 GB. Dual watchdog timers, a redundant power input and a 64-bit hardware serial number add to its suitability for industrial deployment. The operating temperature range is -25 ~ +75 °C.
Applications
- PC-based control using SCADA software, soft PLC and Visual Basic .NET, Visual C# or Visual C++ applications
- Automation systems that integrate I-8K and I-87K series I/O modules
- Industrial control installations requiring DIN-rail or wall mounting
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB 2.0, VGA |
| Ports: | 2 Ethernet, 4 serial, 2 USB |
| Isolation: | 1 kV (power), 3000 VDC (RS-485) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Technische Daten
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 512 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1x Power, 1 x System/Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | WP-8121-CE7: 1 WP-8421-CE7: 4 WP-8821-CE7: 8 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| DIP Switch | 8-bit for address * (except WP-8121-CE7) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | WP-8121-CE7: 1 x RS-232, 1 x RS-485 (3000 VDC Isolated) WP-8421-CE7: 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 WP-8821-CE7: 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Capacity | 1.2 A, 5 V supply to CPU and backplane, 4.8 A, 5 V supply to I/O expansion slots, total 30 W |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | WP-8121-CE7: 7.3 W (0.3 A @ 24 VDC) WP-8421-CE7: 9.1 W (0.38 A @ 24 VDC) WP-8821-CE7: 9.6 W (0.4 A @ 24 VDC) |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | WP-8121-CE7: 95 x 132 x 111 WP-8421-CE7: 231 x 132 x 111 WP-8821-CE7: 355 x 132 x 111, (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Ingress Protection Rating | IP30 |
| Weight | WP-8121-CE7: 510 g WP-8421-CE7: 885 g WP-8821-CE7: 1225 g |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
