XV111 16-ch Isolated Sink DO Expansion Board, 3.5 ~ 50 VDC
16-channel isolated sink-type (NPN) digital output expansion board for 3.5 to 50 VDC loads, rated 600 mA per channel, with overvoltage and short-circuit protection.
- 16 isolated digital output channels, sink-type NPN
- Load voltage 3.5 ~ 50 VDC, 600 mA per channel
- Overvoltage protection at 60 VDC and overload protection on outputs
- Short-circuit protection on each digital output
- Programmable power-on output values
- RS-232 port with Modbus/RTU at 115200 bps
95,00 € pro Stück
| 1–9 Stück | 95,00 € | |
|---|---|---|
| 10–30 Stück | 93,00 € | −2 % |
| ab 31 Stück | 91,00 € | −4 % |
Produktinformationen "XV111 16-ch Isolated Sink DO Expansion Board, 3.5 ~ 50 VDC"

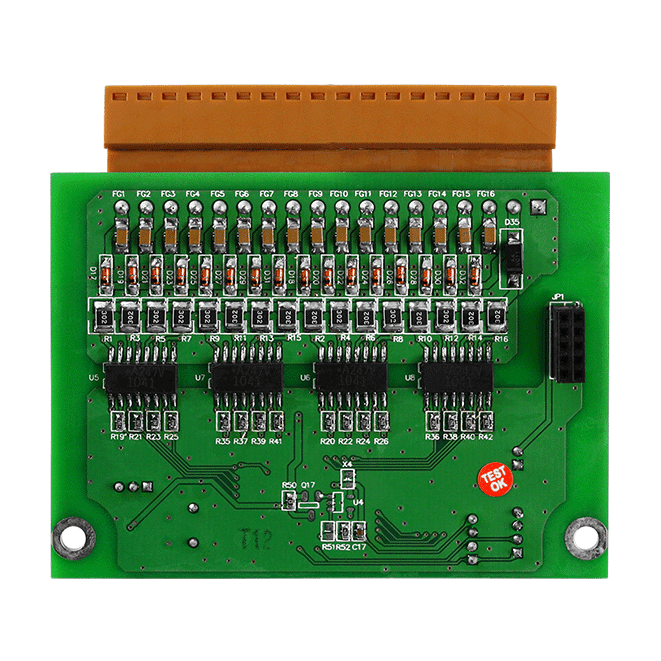

XV111 CR is a 16-channel digital output expansion board for PAC I/O systems. Each channel is photocoupler-isolated and switches sink-type (NPN) loads powered between 3.5 and 50 VDC, with up to 600 mA per channel.
Outputs are protected against overvoltage (60 VDC) and overload, and each channel is short-circuit protected, which helps the board survive wiring faults in the field. Power-on output states can be programmed, so the outputs can be set to a defined state when the system starts.
The board communicates over a single RS-232 port using Modbus/RTU at 115200 bps, N, 8, 1. It draws 0.2 W maximum from a 5 VDC terminal block supply, with 3750 VDC intra-module isolation and ±4 kV contact / ±8 kV air ESD protection. The XV111A offers the same specification with the output type reversed.
Applications
- Digital output expansion for ICP DAS PAC I/O systems
- Switching of sink-type DC loads from 3.5 to 50 VDC
| Product type: | Expansion Board |
|---|---|
| Interface: | RS-232 |
| Protocol: | Modbus/RTU |
| Digital outputs: | 16 |
| Ports: | 1 |
| Isolation: | 3750 VDC |
| Power input: | 5 VDC |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
| Digital Output | |
| Channels | 16 |
| Type | Sink |
| Load Voltage | 3.5 ~ 50 VDC |
| Load Current | 600 mA/channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | Yes |
| Short-circuit Protection | Yes |
| Power on Value | Yes, Programmable |
| COM Ports | |
| Ports | 1 x RS-232 |
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus/RTU |
| Power | |
| Consumption | 0.2 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
