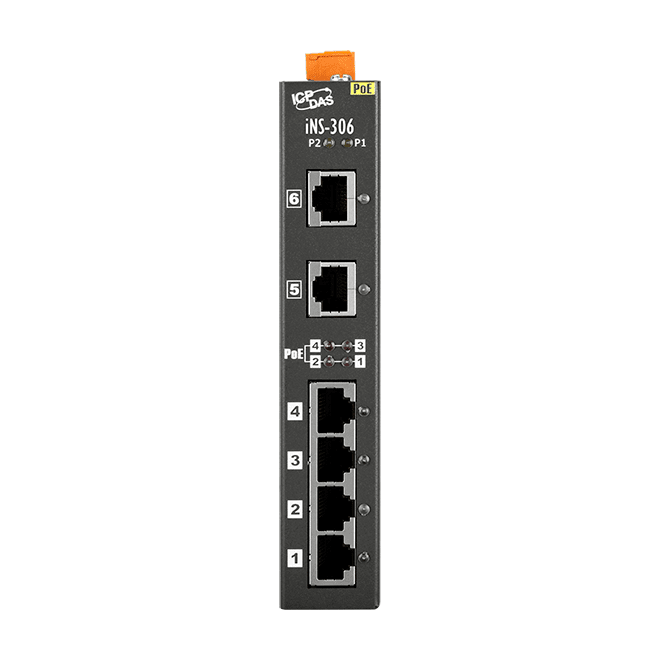

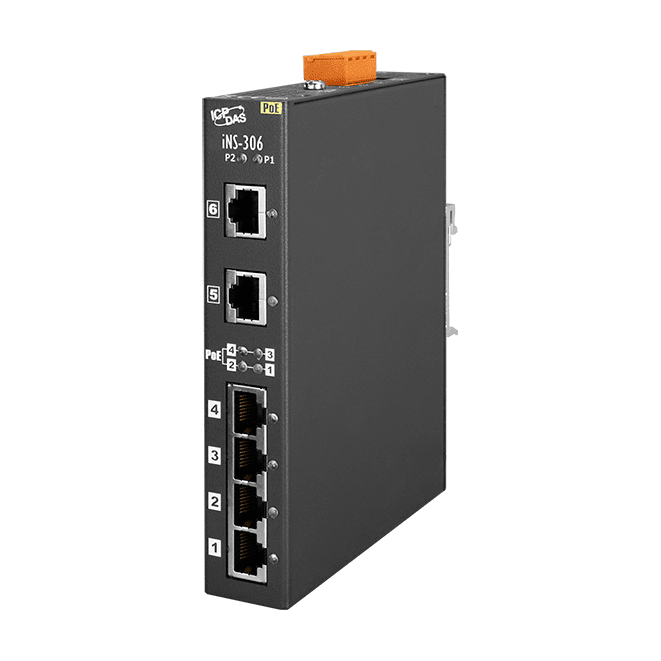

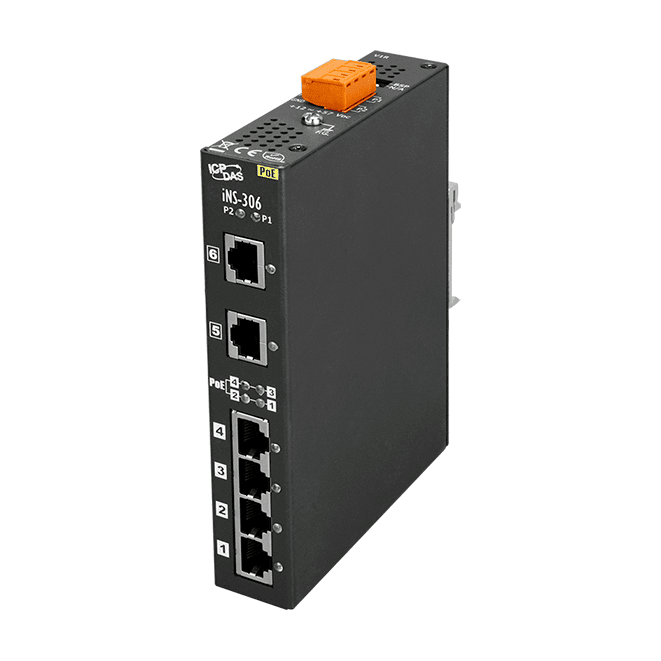

iNS-306 6-Port 10/100 Mbps PoE PSE IoT Switch with Web GUI
Managed-style 6-port 10/100 Mbps IoT switch that supplies IEEE 802.3af/at power to four PoE ports, with per-port power scheduling, reset scheduling and Ethernet bypass on ports 5 and 6.
- Four PoE/PoE+ PSE ports, compliant with IEEE 802.3af and 802.3at, up to 30 W per port

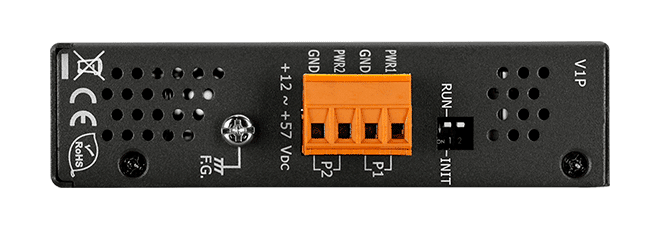

- Dual redundant DC inputs from +12 VDC to +57 VDC with reverse polarity protection
- Individual power on/off and power reset schedules for each PoE port
- Web GUI for remote configuration, monitoring and PoE management
- Real-time clock synchronised via NTP
- Ethernet bypass on Port 5 and Port 6 when the switch loses power
308,00 € pro Stück
| 1–9 Stück | 308,00 € | |
|---|---|---|
| 10–30 Stück | 299,00 € | −3 % |
| ab 31 Stück | 293,00 € | −5 % |
Produktinformationen "iNS-306 6-Port 10/100 Mbps PoE PSE IoT Switch with Web GUI"
The iNS-306 CR is a six-port Ethernet switch that acts as a Power Sourcing Equipment (PSE) on ports 1 to 4. It centralises power distribution for IEEE 802.3af and 802.3at powered devices, delivering up to 30 W per port from a single DC supply.
Each PoE port can be switched on and off remotely through the built-in web interface, which also reports Ethernet status and PoE voltage, current and consumption. Individual power on/off and reset schedules help reduce energy use and keep attached devices running reliably without site visits.
For daisy-chained networks, ports 5 and 6 bypass the Ethernet signal if the switch loses power, helping important data continue to flow. Dual DC inputs with reverse polarity protection allow a backup supply to take over automatically.
Applications
- Powering IEEE 802.3af/at compliant powered devices from a central DC supply
- Remote on/off and reset control of PoE-powered devices
- Energy saving through scheduled power-down of unused devices
- Daisy-chained Ethernet installations requiring bypass during power failure
| Product type: | IoT Switch |
|---|---|
| Interface: | 10/100Base-TX RJ-45 |
| Ports: | 6 |
| PoE: | IEEE 802.3af/at, 30 W per port |
| Isolation: | 1500 Vrms |
| Power input: | +12 ~ +57 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Technische Daten
| LED Indicators | |
|---|---|
| Status | PWR1, PWR2, POE, Link/Act, Speed |
| Ethernet | |
| Ports | 6 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3 for 10 Base-T IEEE 802.3u for 100 Base-TX IEEE 802.3x for Flow Control, Back Pressure Flow Control IEEE 802.3af Power Over Ethernet IEEE 802.3at Power Over Ethernet Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 16K |
| Frame Buffer Memory | 4Mbit |
| Isolation | 1500 Vrms 1 minute |
| DIP Switch | Init |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3at compliant |
| PoE Power | Up to 30 watts per channel |
| PoE Operation | Automatic detection and power management |
| PoE Pin Assignments | V+ (pin 1, 2), V-(pin 3, 6) |
| PoE Disconnect Mode | DC disconnect |
| PoE Voltage | +52 VDC |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +57 VDC Redundant dual Input |
| Redundant Power Inputs | Yes |
| Consumption | 0.15 A @ 24 VDC without PD loading, 6A @ 24VDC with PD full loading (30W per ports) 0.10 A @ 48 VDC without PD loading, 3A @ 48VDC with PD full loading (30W per ports) |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 28 x 160 x 119 (W x L x H) Wall mounting: 28 x 199 x 112 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting (optional) |
| Environment | |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
