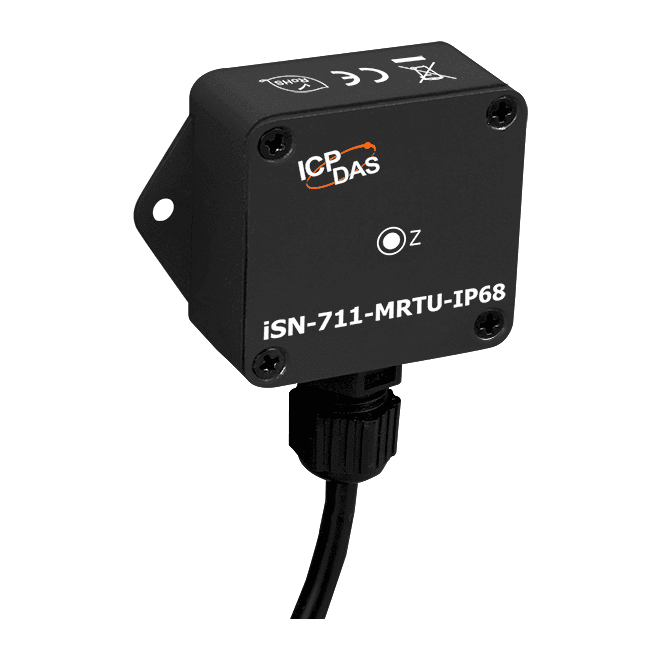

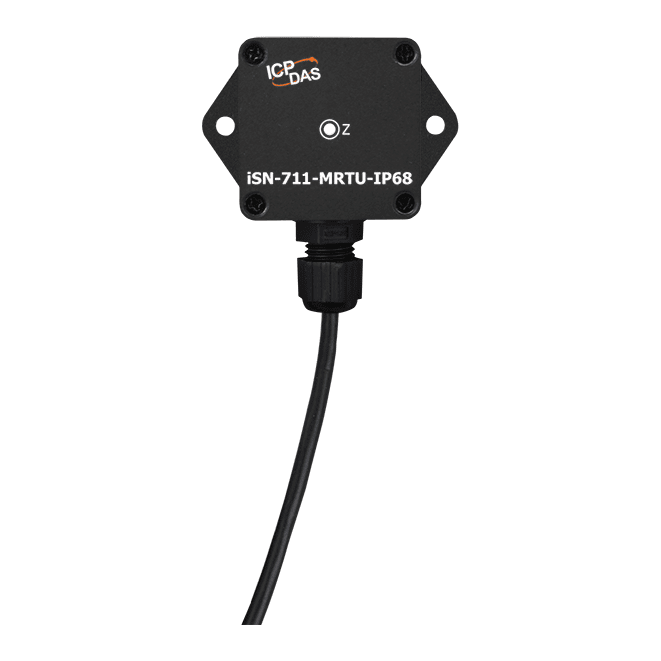

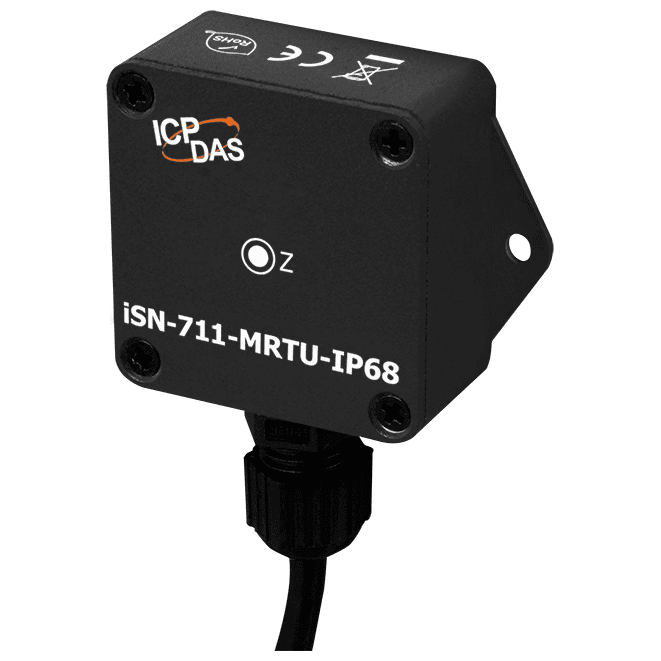

iSN-711-MRTU-IP68 Single-Axis MEMS Vibration Sensor, RS-485 Modbus RTU
IP68 single-axis MEMS vibration sensor module with one RS-485 port running the Modbus RTU slave protocol, for real-time monitoring of machinery vibration.
- IP68 protection rating for water, oil and dust in harsh environments
- 1-axis MEMS vibration measurement, amplitude range ±8g
- Frequency range 6 Hz ~ 1 kHz, suited to low-frequency vibration
- Single RS-485 port with Modbus RTU slave protocol
- Baud rates from 9600 to 115200 bps, data format N, 8, 1
- Input range +10 ~ +30 VDC, consumption 0.3 W
417,00 € pro Stück
| 1–9 Stück | 417,00 € | |
|---|---|---|
| 10–30 Stück | 405,00 € | −3 % |
| ab 31 Stück | 397,00 € | −5 % |
Produktinformationen "iSN-711-MRTU-IP68 Single-Axis MEMS Vibration Sensor, RS-485 Modbus RTU"
iSN-711-MRTU-IP68 CR is a single-axis vibration sensor module for condition monitoring in harsh industrial settings. Its IP68 rating protects the housing against water, oil and dust, so it can be fitted close to the equipment it monitors.
A built-in MEMS accelerometer measures vibration on one axis across 6 Hz ~ 1 kHz, with an amplitude range of ±8g. The module exposes a single RS-485 port with Modbus RTU slave protocol, so a master controller can poll the vibration data directly over the bus using standard Modbus RTU commands.

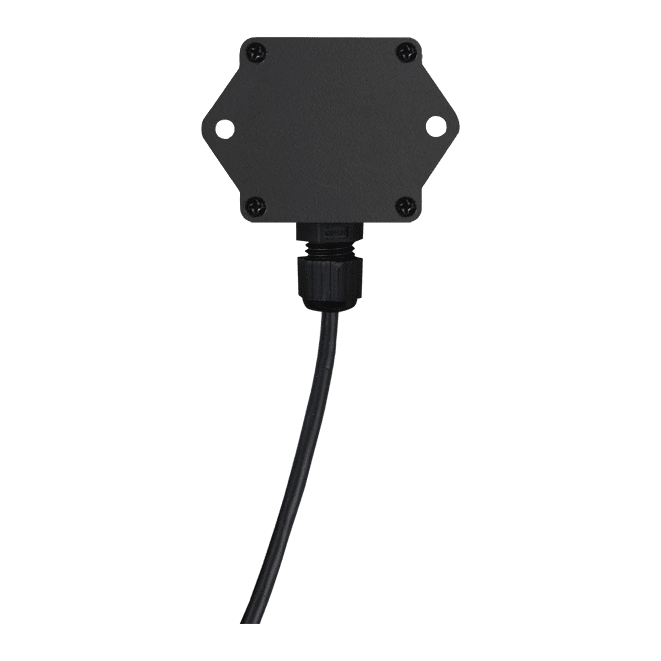

Typical uses include production line equipment, motors and pumps, where engineers need to watch for changes in vibration. The module can be wall-mounted or fixed by magnet adsorption.
Applications
- Vibration monitoring system
- Production line equipment
- Motors
- Pumps
| Product type: | Vibration sensor module |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall-mount or magnet |
| Housing: | IP68 |
Technische Daten
| Vibration Measurement | |
|---|---|
| Axes | 1 |
| Sensor Type | MEMS |
| Amplitude Range | ±8g |
| Frequency Range | 6 Hz ~ 1 kHz |
| COM Ports | |
| Ports | 1 x RS-485(D+, D-) |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus RTU |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.3 W |
| Mechanical | |
| Dimensions (mm) | 65 x 44 x 21 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
