ACS-11-MF-TC Proximity Card Reader with Keypad for Access Control
Keypad and RFID access control reader with built-in voice guidance, elevator floor control and door position detection, offering Ethernet, RS-485 and CAN interfaces.
- Keypad and RFID induction access control for ISO 14443 A cards
- Supports Mifare Classic, Ultralight and DESFire cards, with capacity for 8192 cards
- Built-in voice message function, Chinese version of voice for this ordering code
- Ethernet 10/100Base-T(X), RS-485 and CAN (ISO-11898-2, CAN 2.0A/2.0B) interfaces
- Electric door lock control, door position detection and anti-sabotage micro switch
- Elevator floor control for up to 32 floors, with access records
164,00 € pro Stück
| 1–9 Stück | 164,00 € | |
|---|---|---|
| 10–30 Stück | 159,00 € | −3 % |
| ab 31 Stück | 155,00 € | −5 % |
Produktinformationen "ACS-11-MF-TC Proximity Card Reader with Keypad for Access Control"

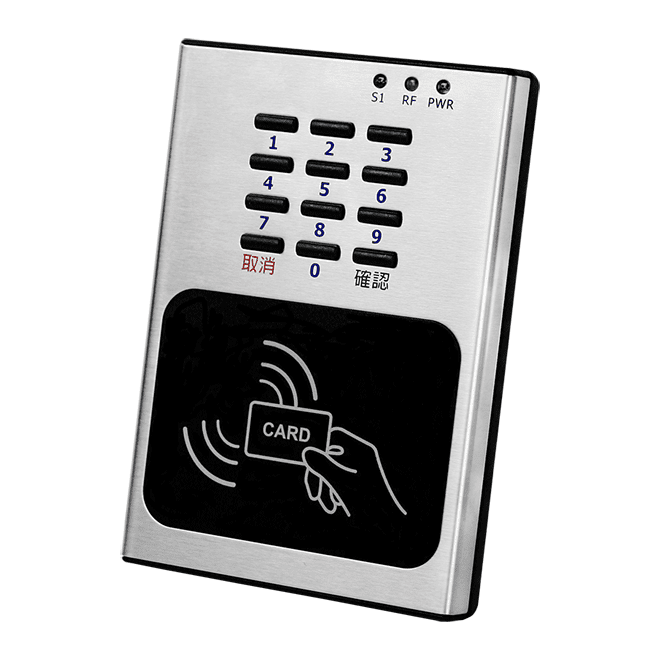

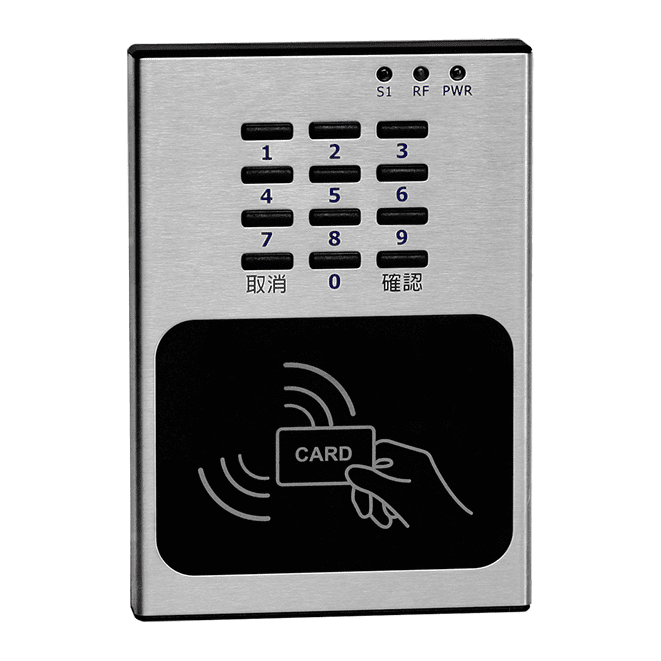

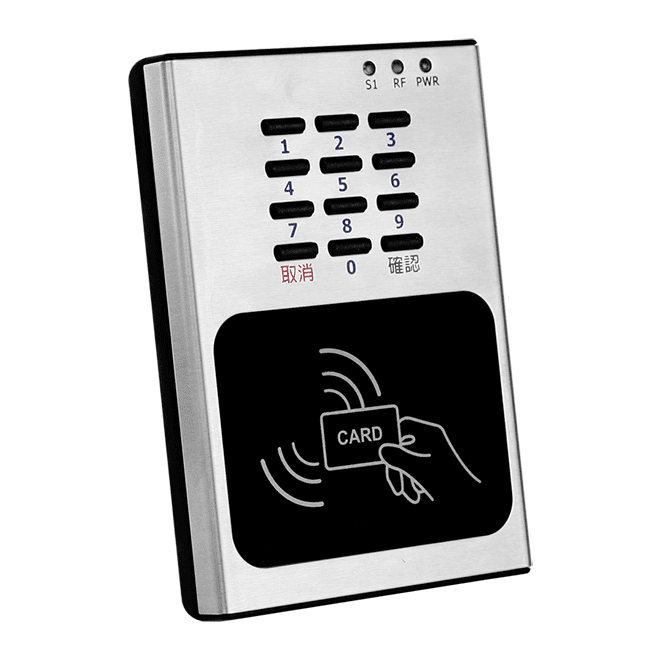

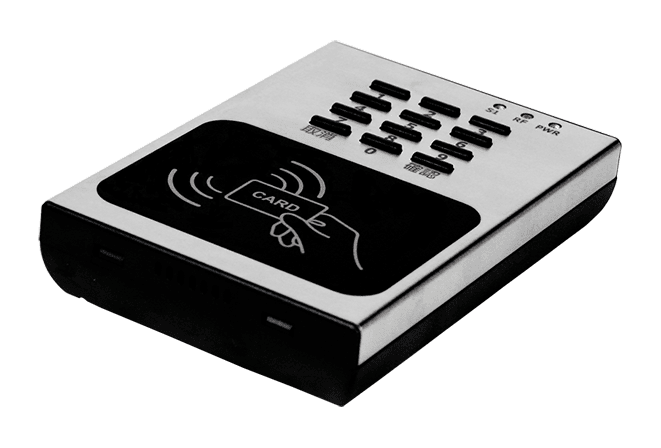

The ACS-11-MF-TC CR is an access control reader that accepts both keypad entry and ISO 14443 A RFID cards, covering Mifare Classic, Ultralight and DESFire card types. It combines door access control, voice guidance and elevator floor control in a single unit, making it suited to community door access and lift control schemes.

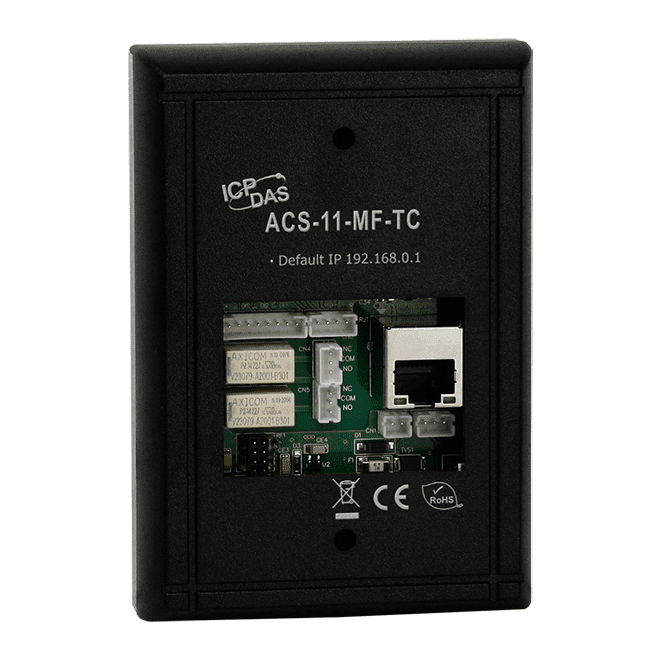

Door hardware can be driven directly through two Form C relay outputs, while four digital inputs and a door position detection function report door status. A built-in micro switch provides anti-sabotage detection, and the reader stores access records with a capacity of 8192 cards.
Communication is available over a 10/100Base-T(X) Ethernet port, an RS-485 port and a CAN bus interface, with a built-in RTC and WDT. The unit is wall mounted and measures 83 x 120 x 28 mm (W x L x H), with an operating range of -20 ℃ to +60 ℃.
Applications
- Community door access control
- Elevator floor control
- Access control systems
| Product type: | Access control reader |
|---|---|
| Interface: | CAN, Ethernet, RS-485 |
| Digital inputs: | 4 |
| Relay outputs: | 2 |
| Ports: | 1 Ethernet, 1 RS-485 |
| Operating temperature: | -20 ~ +60 °C |
| Mounting: | Wall |
Technische Daten
| Keypad | |
|---|---|
| Supported | Yes |
| System | |
| Micro Switch | Channel x 1, SPDT, 6A @125/250 VAC, for anti-sabotage detection |
| RFID | |
| Standard | ISO 14443 A |
| Supported Card | Mifare Classic, Ultralight, DESFire |
| Digital Input | |
| Channels | 4 |
| Type | Dry contact (Source) Wet Contact (Sink, Source) |
| Relay Output | |
| Channels | 2 |
| Type | Form C |
| Contact Rating | 2A@30VDC, 0.5A@120VAC |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| COM Ports | |
| Ports | 1 x RS-485 (D+, D-) |
| Baud Rate | 9600 |
| Data Format | N, 8, 1 |
| CAN | |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 1M |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 83 x 120x 28 (W x L x H) |

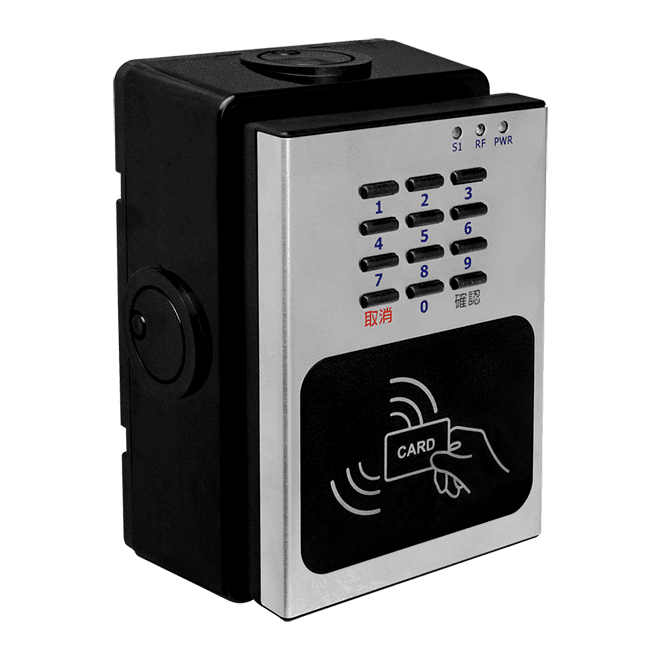

| Installation | Wall Mounting (Suitable for the outlet box in United States) |
| Environment | |
| Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
