AIB-2941M/S1 Edge AI Controller with Hailo-8 Lite AI Accelerator, 13 TOPS
Fanless ARM-based edge AI controller with a Hailo 8 Lite accelerator (13 TOPS), two isolated digital inputs and outputs, RS-485 and dual Ethernet for industrial deployments.
- Includes Hailo 8 Lite AI accelerator rated at 13 TOPS, with the Hailo RT Rev. 4.19 runtime pre-installed
- Quad-core Cortex-A72 64-bit SoC @ 1.5GHz with 4GB LPDDR4 SDRAM and 32GB on-board eMMC
- M.2 Key B (USB) and M.2 Key M (PCIe) connectors for additional AI accelerator modules or SSD
- Two 10/100/1000 Ethernet ports, two RS-485 ports (2500 VDC isolated) and four USB ports
- Two isolated digital inputs (sink/source) and two isolated open-collector digital outputs
- HDMI output up to 4Kp60 with audio, plus an optional XV/XB/eXV expansion board slot
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "AIB-2941M/S1 Edge AI Controller with Hailo-8 Lite AI Accelerator, 13 TOPS"

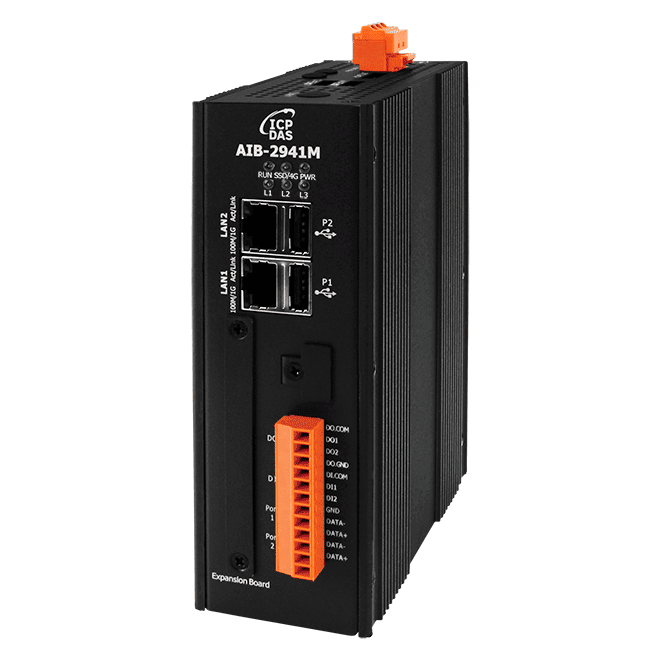

The AIB-2941M/S1 CR is an edge AI controller for engineers who need on-site inference alongside conventional I/O. It ships with a Hailo 8 Lite AI accelerator rated at 13 TOPS, so AI workloads run locally on a compact, fanless unit rather than in a remote data centre. Supported frameworks include TensorFlow, TensorFlow Lite, Keras, PyTorch and ONNX, and the Hailo RT Rev. 4.19 runtime is pre-installed.

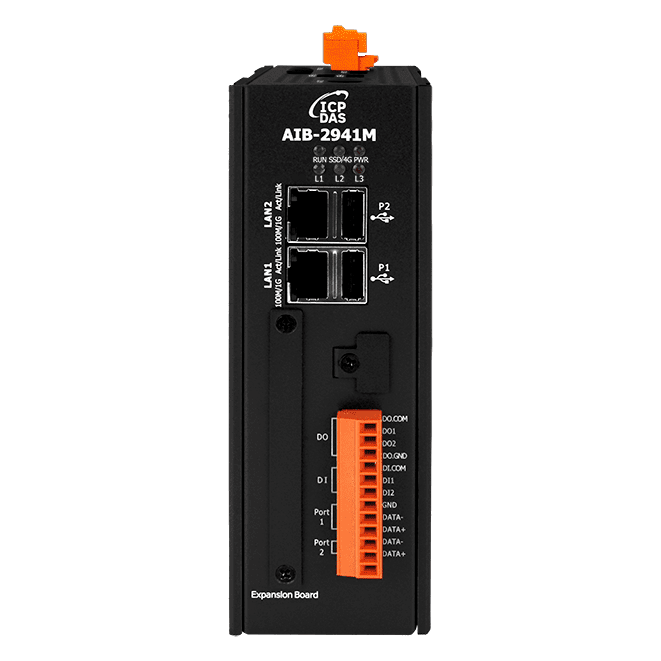

The controller is built around a quad-core Cortex-A72 64-bit SoC running at 1.5GHz, with 4GB LPDDR4 SDRAM and 32GB of on-board eMMC storage. Two 10/100/1000 Ethernet ports, two RS-485 ports with 2500 VDC isolation and four USB ports (two USB 2.0, two USB 3.0) provide connectivity to field devices and networks.

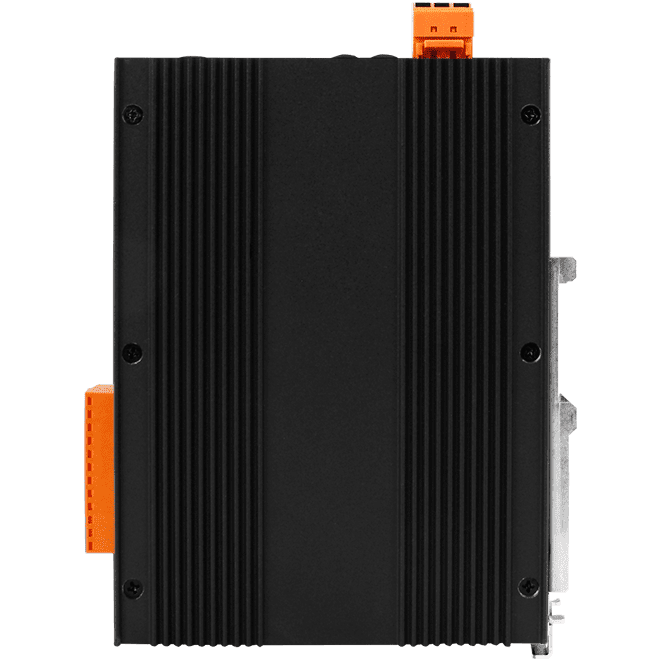

Digital I/O comprises two isolated wet-contact inputs and two isolated open-collector outputs. An HDMI port supports 4Kp60 output, and an optional expansion slot accepts XV, XB or eXV boards. The metal casing is rated for -20 ~ +70 °C and can be fitted to a DIN rail or wall.
Applications
- Industrial edge AI inference
- Local data processing at the machine or edge node
- Serial device connection over RS-485
- Digital I/O monitoring and control with isolated inputs and outputs
| Product type: | Edge AI controller |
|---|---|
| Interface: | Ethernet, HDMI, RS-485, USB |
| Digital inputs: | 2 |
| Digital outputs: | 2 |
| Ports: | 2 Ethernet, 2 RS-485, 4 USB |
| Isolation: | 2500 VDC (RS-485) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | DIN-rail / wall |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| OS | Ubuntu OS |
| Multilanguage Support | English, Simplified Chinese, Traditional Chinese |
| SDK | C / Python Library |
| Main Unit | |
| CPU | Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 4GB LPDDR4 SDRAM |
| Storage | On-board 32GB eMMC |
| Non-Volatile Memory | 16 KB FRAM |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | Yes |
| AI Accelerator (Optional) | |
| Model Number | Hailo 8 Lite |
| AI frameworks | TensorFlow, TensorFlow Lite, Keras, PyTorch & ONNX |
| TOPS | 13 |
| Runtime | Hailo RT Rev. 4.19, pre-installed |
| Power Consumption | 1.5 W |
| Display | |
| GPU | VideoCoreVI (OpenGL ES 3.0), H.265(up to 4Kp60fps decode), H.264 (up to 1080p60fps, 1080p30 encode) |

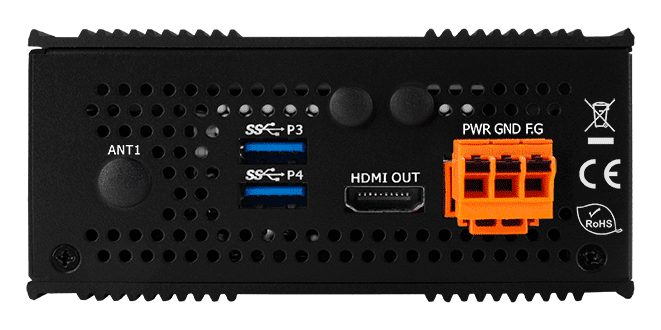

| Signal | HDMI port x 1 (4Kp 60fps with Audio) |
| LED Indicators | |
| Status | 6 LED indicators for Power and Running; 3 LED for user defined |
| Digital Input | |
| Channels | 2 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +19 VDC ~ +24 VDC |
| OFF Voltage Level | +11 VDC Max. |
| Digital Output | |
| Channels | 2 |
| Type | Isolated Open Collector |
| Load Voltage | +24 VDC |
| Load Current | 100 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.1 A |
| Short-circuit Protection | Yes |
| I/O Expansion | |

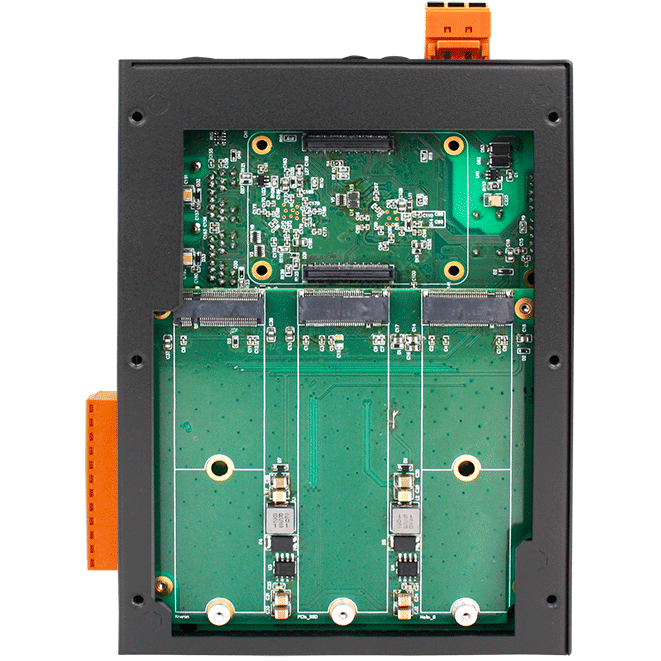

| Slots | 1x XV-board/XB-board/eXV-board (Optional) 1x M.2 key B 2x M.2 key M Note: the three M.2 slots share one PCIe-2.0x1 |
| Audio | |
| Jack | Mic-In x 1 and Line-Out x 1 (Optional) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 (host)，2 x USB 3.0 (host) |
| Power | |
| Input Range | +12 ~ +48 VDC |
| Consumption | 4.8 W (0.2 A @ 24 VDC) |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 52 mm x 177 mm x 128 mm |
| Installation | DIN-Rail / Wall Mounting |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90 % RH,(non-condensing) |
Technische Daten laut Hersteller. Änderungen vorbehalten.
