ANT-18 18 dBi Directional Panel Antenna, 2.4 GHz, RP-SMA Male
An 18 dBi directional panel antenna for the 2.4 to 2.5 GHz band, supplied with a 1 m cable and an RP-SMA male plug connector.
- 18 dBi gain for focused, directional coverage
- Panel type antenna for the 2.4 to 2.5 GHz band
- 1 m cable with RP-SMA male plug connector
- Body dimensions 270 mm x 205 mm x 15 mm (L x W x H)
- Body weight 1000 g ±10
- Operating temperature -20°C to 60°C
220,00 € pro Stück
| 1–9 Stück | 220,00 € | |
|---|---|---|
| 10–30 Stück | 213,00 € | −3 % |
| ab 31 Stück | 209,00 € | −5 % |
Produktinformationen "ANT-18 18 dBi Directional Panel Antenna, 2.4 GHz, RP-SMA Male"

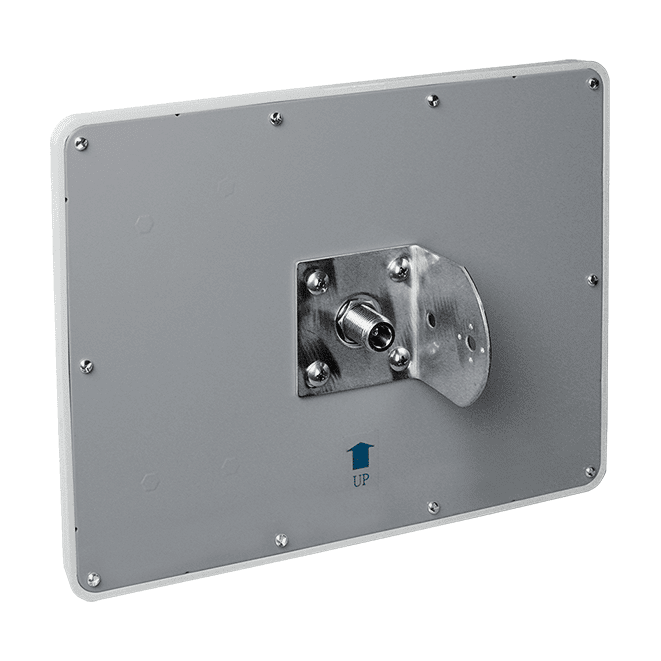

ANT-18 is an 18 dBi directional panel antenna covering 2.4 to 2.5 GHz. Its high gain and directional pattern concentrate radiated energy in one direction, which suits point-to-direction links where coverage is needed along a defined sector rather than in all directions.

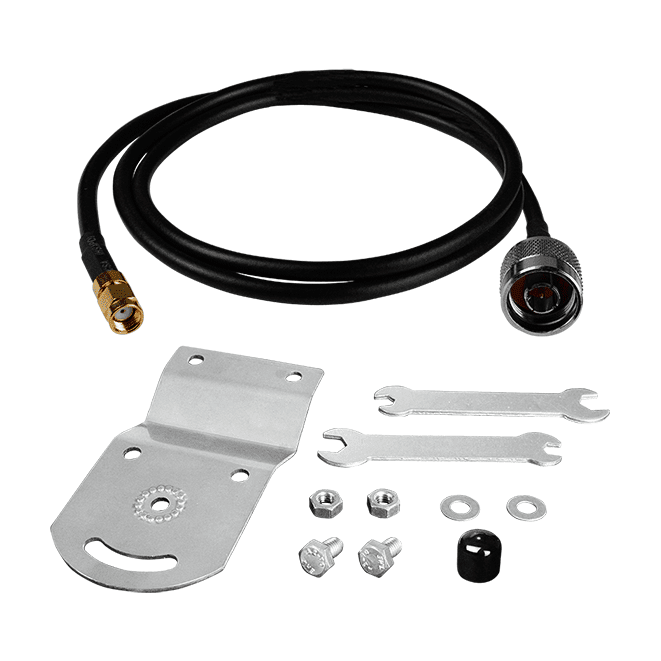

The antenna is fitted with a 1 m cable terminated in an RP-SMA male plug, allowing it to be connected to compatible 2.4 GHz radio equipment with an RP-SMA female socket. The body measures 270 mm x 205 mm x 15 mm (L x W x H), excluding the cable, and weighs 1000 g ±10 for the antenna body only.
Rated for an operating temperature range of -20°C to 60°C, the ANT-18 is RoHS and WEEE certified.
| Product type: | Antenna |
|---|---|
| Interface: | RP-SMA |
| Operating temperature: | -20 ~ +60 °C |
Technische Daten
| Mechanical | |
|---|---|
| Dimensions (mm) | 270 mm x 205 mm x 15 mm (L x W x H) (Only Antenna Body) |
| Weight | 1000 g ±10 (Only Antenna Body) |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Antenna | |
| Type | Panel |
| Connector | RP SMA Male (Plug) |
| Gain (dBi) | 18 |
| Band | 2.4 ~ 2.5GHz |
Technische Daten laut Hersteller. Änderungen vorbehalten.
