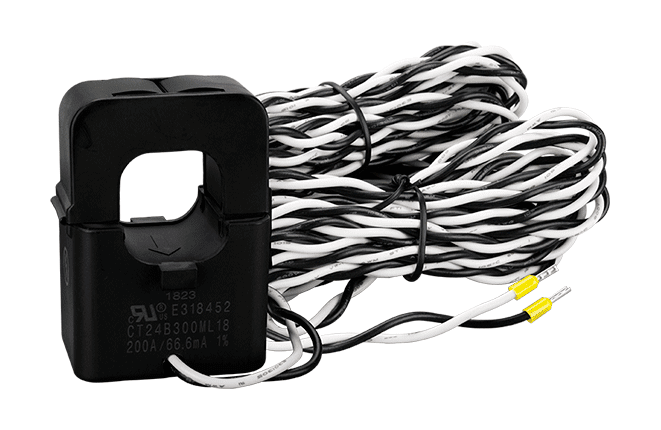

CA-SCT24I-200A-L080 Split-Core Current Transformer, 200A Φ24mm, 8 m Wire
200A split-core current transformer with a Φ24mm aperture and 8 m wire, intended for iWSN and iXN series energy monitoring applications.
- 200A rating with Φ24mm split-core aperture
- Single channel current transformer
- Maximum input voltage 500VAC, 50/60Hz
- 8 m wire length
- Accuracy 1% for CT only
- ±3% or ±0.3A accuracy with iWSN-1110X, iWSN-1131P, iWSN-750P and iWSN-757P
75,00 € pro Stück
| 1–9 Stück | 75,00 € | |
|---|---|---|
| 10–30 Stück | 73,00 € | −3 % |
| ab 31 Stück | 71,00 € | −5 % |
Produktinformationen "CA-SCT24I-200A-L080 Split-Core Current Transformer, 200A Φ24mm, 8 m Wire"
The CA-SCT24I-200A-L080 is a single-channel split-core current transformer rated at 200A, with a Φ24mm aperture. Its split-core construction lets it be fitted around an existing conductor, which suits retrofit metering work where the circuit cannot easily be disconnected.
Supplied with an 8 m lead, this CT is intended for use with the iWSN and iXN series. The maximum input voltage is 500VAC at 50/60Hz. Accuracy is rated at 1% for the CT alone, and at ±3% or ±0.3A when used with the iWSN-1110X, iWSN-1131P, iWSN-750P and iWSN-757P.
- Choose this variant when you need a 200A-rated CT with a Φ24mm aperture and an 8 m lead for iWSN or iXN metering installations.
Applications
- Energy management
- Power metering
- Current monitoring on iWSN and iXN series installations
| Product type: | Current transformer |
|---|
Technische Daten
| CT | |
|---|---|
| Split-core CT Channels | 1 |
| Split-core CT Type | Φ24mm (200A) ; 8M wire |
| Input Voltage | Maximum 500VAC, 50/60Hz |
| Accuracy | 1% ( CT only ) +-3% or +-0.3A ( Used with iWSN-1110X、iWSN-1131P、iWSN-750P、iWSN-757P ) |
Technische Daten laut Hersteller. Änderungen vorbehalten.
