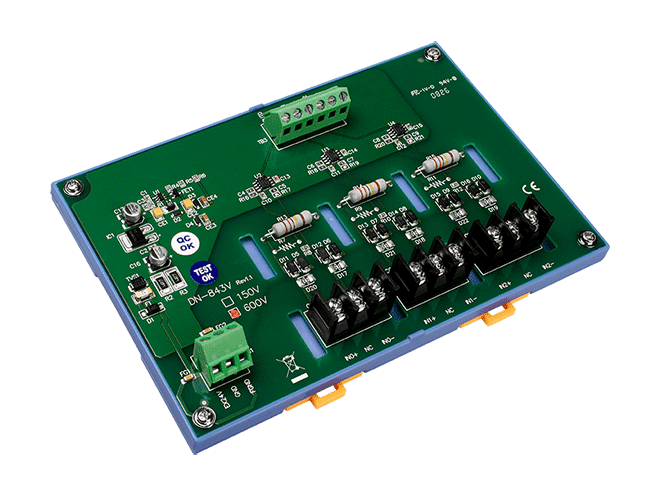

DN-843V-600V 3-channel Voltage Attenuator, ±600 Vpp Input, Non-isolated
3-channel voltage attenuator for scaling ±600 Vpp AC/DC inputs down to ±10 Vpp, so high-voltage signals can be read by standard analog input modules such as the I-7017 and I-87017.
- Attenuates ±600 Vpp AC/DC inputs to a ±10 Vpp output
- Three channels with linear attenuation ratio
- Input impedance >1 MΩ and accuracy of 1% of FSR
- 100 KHz bandwidth
- Power input +10 ~ +30 VDC, 0.56 W consumption
- Plastic casing, 174 x 122 x 25 mm (W x L x D), DIN-rail mounting
133,00 € pro Stück
| 1–9 Stück | 133,00 € | |
|---|---|---|
| 10–30 Stück | 129,00 € | −3 % |
| ab 31 Stück | 126,00 € | −5 % |
Produktinformationen "DN-843V-600V 3-channel Voltage Attenuator, ±600 Vpp Input, Non-isolated"
The DN-843V-600V is a 3-channel voltage attenuator that reduces high-voltage AC or DC inputs, up to ±600 Vpp, to a ±10 Vpp output. This allows high voltages to be measured with analog input modules such as the I-7017 and I-87017.
Each channel offers a linear attenuation ratio and an input impedance of >1 MΩ, with an accuracy of 1% of FSR and a bandwidth of 100 KHz. The module is supplied from +10 ~ +30 VDC and draws 0.56 W, and it mounts on a DIN rail.
This non-isolated variant is intended for applications where channel-to-channel and intra-module isolation are not required. For isolated operation, the DN-843VI-600V provides 3000 VDC isolation between channels and within the module.
- Attenuates ±600 Vpp AC/DC inputs to ±10 Vpp outputs
- Three independent channels with linear attenuation ratio
- Input impedance >1 MΩ and 1% of FSR accuracy
- 100 KHz bandwidth
- Power input of +10 ~ +30 VDC, 0.56 W consumption
- Plastic casing, 174 x 122 x 25 mm, DIN-rail mounting
- Operating temperature -25 ~ +75 °C; CE, UKCA, RoHS and WEEE
Applications
- Measuring high-voltage AC or DC signals with standard ±10 V analog input modules
- Connecting high-voltage sources to I-7017 and I-87017 analog input modules
| Product type: | Voltage attenuator |
|---|---|
| Analog inputs: | 3 |
| Analog outputs: | 3 |
| Isolation: | None |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV contact for power line, input and output channels, ±8 kV air for random point |
| Surge (IEC 61000-4-5) | ±3 kV for power liner |
| Analog Input | |
| Channels | 3 : DN-843V-600V, DN-843VI-600V 8 : DN-848VI-10V, DN-848VI-80V, DN-848VI-150V |
| Type | AC/DC Voltage |
| Range | ±10 ~ ±800 Vpp |
| Accuracy | 1% of FSR |
| Bandwidth | 30 KHz : DN-848VI-10V, DN-848VI-80V, DN-848VI-150V 100 KHz : DN-843V-600V, DN-843VI-600V |
| Input Impedance | >1 MΩ |
| Channel-to-Channel Isolation | 3000 VDC (except DN-843V-600V) |
| Intra-module Isolation | 3000 VDC (except DN-843V-600V) |
| Analog Output | |
| Channels | 3 : DN-843V-600V, DN-843VI-600V 8 : DN-848VI-10V, DN-848VI-80V, DN-848VI-150V |
| Type | AC/DC Voltage |
| Range | ±10 Vpp |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.56 W : DN-843V-600V 3.84 W : DN-843VI-600V 9.2 W : DN-848VI-10V, DN-848VI-80V, DN-848VI-150V |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 174 x 122 x 25 (W x L x D) : DN-843V-600V, DN-843VI-600V 174 x 122 x 33 (W x L x D) : DN-848VI-10V, DN-848VI-80V, DN-848VI-150V |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
