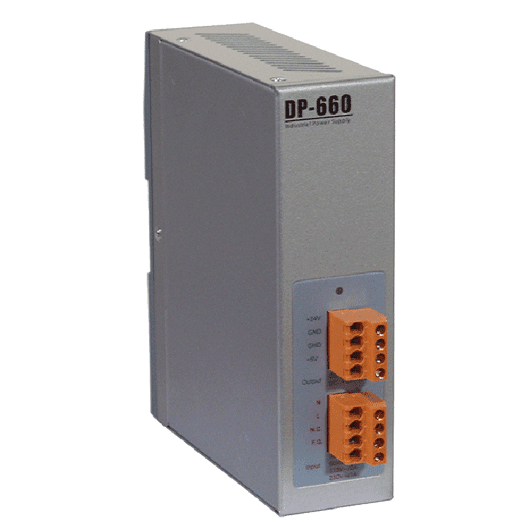

DP-660 DIN-Rail Power Supply, 85~270 VAC to 24 VDC/2.5 A, 65 W
65 W universal-input DIN-rail power supply giving 24 VDC/2.5 A and 5 V/0.5 A, intended for motor and solenoid loads with a separate 5 V rail for logic control circuits.
- Universal input 85 ~ 270 VAC, 47 Hz ~ 63 Hz
- Dual DC outputs: +24 VDC/2.5 A and +5 VDC/0.5 A
- 65 W rated output for DIN-rail installation
- Built-in +5 V output intended for logic control circuits
- Short circuit protection with latch-off behaviour
- Typical hold-up time 16 ms at rated load and 115 VAC
164,00 € pro Stück
| 1–9 Stück | 164,00 € | |
|---|---|---|
| 10–30 Stück | 159,00 € | −3 % |
| ab 31 Stück | 155,00 € | −5 % |
Produktinformationen "DP-660 DIN-Rail Power Supply, 85~270 VAC to 24 VDC/2.5 A, 65 W"
DP-660 is a 65 W switch-mode power supply with a universal input of 85 ~ 270 VAC and a 47 Hz ~ 63 Hz frequency range. It provides a +24 VDC/2.5 A main output together with a +5 VDC/0.5 A output.
The unit is aimed at powering devices such as motors and solenoids. Its built-in +5 V output is intended for supplying a logic control circuit alongside the power-device load, so one supply can serve both roles in a control cabinet.
The DP-660 has a metal casing for DIN-rail mounting and cools by free air convection. Its outputs are protected against short circuits, which latch off, and it offers a typical hold-up time of 16 ms at rated load and 115 VAC. Operating range is 0 ~ 50 °C, with storage from -40 °C to +85 °C.
Applications
- Powering motors and solenoids
- Supplying logic control circuits alongside power-device loads
- Industrial control cabinets
| Product type: | Power supply |
|---|---|
| Power input: | 85 ~ 270 VAC |
| Operating temperature: | 0 ~ 50 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Technische Daten
| Input | |
|---|---|
| Voltage Range | 85 VAC ~ 270 VAC |
| Frequency Range | 47 Hz ~ 63 Hz |
| Inrush Current (Typ.) | Cold start: less than 30A at 115 VAC less than 60A at 230 VAC |
| Output | |
| Hold Up Time (Typ.) | 16ms at rated load and 115 VAC |
| DC Voltage | +24VDC/2.5A +5 VDC/0.5A |
| Efficiency | higher than 70% at rated load and 115 VAC |
| Short Circuit Protection | latch off |
| Protection | |
| Over Voltage | hiccup mode |
| Mechanical | |
| Casing | Metal |
| Environment | |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -40 °C ~ +85 °C |
Technische Daten laut Hersteller. Änderungen vorbehalten.
