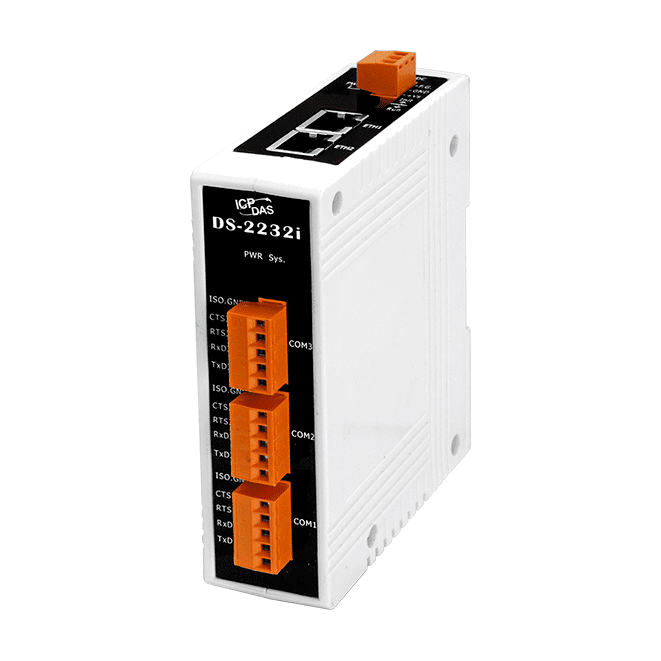

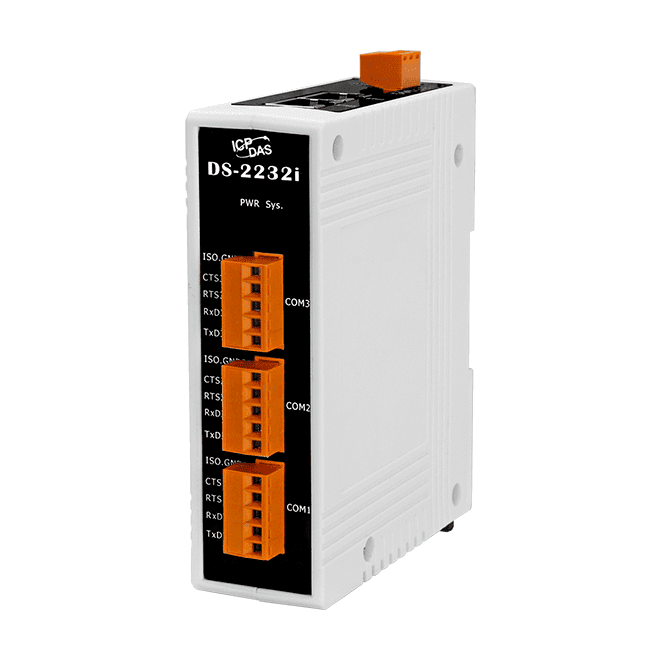

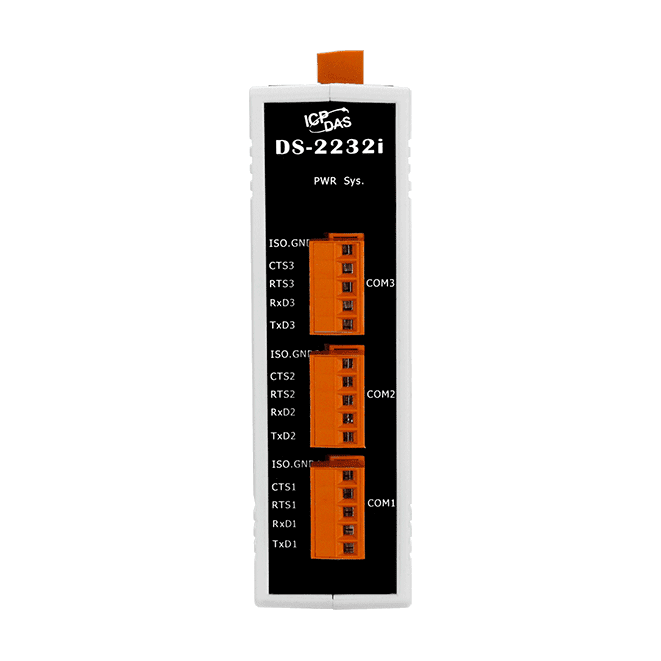

DS-2232i Serial-to-Ethernet Device Server, 3-port Isolated RS-232, PoE
Serial-to-Ethernet device server with a 2-port Ethernet switch and three isolated RS-232 ports, adding Virtual COM, TCP Server and TCP Client modes to serial devices.
- Adds Ethernet connectivity to RS-232 serial devices, with 3 isolated RS-232 ports
- Virtual COM, TCP Server and TCP Client application modes
- Serial bridge and serial tunnel pair-connection support over TCP/IP
- 2-port Ethernet switch with LAN bypass for daisy-chain wiring
- PoE (IEEE 802.3af, Class 1) or +12 ~ 48 VDC terminal block power input
- Static IP or DHCP configuration, UDP Search discovery and built-in web server
194,00 € pro Stück
| 1–9 Stück | 194,00 € | |
|---|---|---|
| 10–30 Stück | 188,00 € | −3 % |
| ab 31 Stück | 185,00 € | −5 % |
Produktinformationen "DS-2232i Serial-to-Ethernet Device Server, 3-port Isolated RS-232, PoE"
DS-2232i CR brings RS-232 serial devices onto Ethernet, so they can be reached across a network instead of being limited by direct serial cable length. It offers Virtual COM, TCP Server and TCP Client operating modes, and can also be set up as a serial bridge or serial tunnel to route data over TCP/IP between two serial devices.
The VxComm Utility maps the unit's serial ports to standard COM ports on 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016, allowing existing software to access the device without modification. Configuration is possible through the built-in web server, which supports static IP or DHCP addressing, and devices can be located on the network with the UDP Search discovery function.
The two Ethernet ports form a switch with LAN bypass, so units can be daisy-chained along a line. Power can come from a PoE source (IEEE 802.3af, Class 1) over standard Category 5 cable, or from a +12 ~ 48 VDC terminal block. The module includes a dual watchdog and, as an i-version unit, provides 3000 VDC signal isolation and ESD protection. It is designed for DIN-rail mounting.
Applications
- Connecting serial devices, computers and servers that lack Ethernet capability to a network
- Remote monitoring of serial devices over Ethernet or the Internet
- Serial bridging or tunnelling between two serial devices over TCP/IP
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232 |
| Ports: | 2 Ethernet, 3 serial |
| PoE: | IEEE 802.3af, Class 1 |
| Isolation: | 3000 VDC signal, 1000 VDC power |
| Power input: | PoE, +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| COM Ports | |
| Ports | 3 x 5-wire RS-232 (1000 VDC for Power Isolation, 3000 VDC for Signal Isolation) |
| Baud Rate | 115200 bps Max. |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Power | |
| Consumption | 0.07 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 97 mm x 126 mm x 33 mm (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
