DS-715 Serial-to-Ethernet Device Server, 1-port Isolated RS-422/485
Serial-to-Ethernet device server with one isolated RS-422/485 port rated at 2000 Vrms, for linking serial devices to Ethernet networks in Virtual COM, TCP Server or TCP Client mode.
- Single isolated RS-422/485 serial port (4-wire RS-422 or 2-wire RS-485) with 2000 Vrms isolation
- Virtual COM mode via VxComm driver, plus TCP Server and TCP Client application modes
- VxComm utility supports 32/64-bit Windows 7 SP1, 10, 2012 and 2016
- Serial port up to 115200 bps, with parity options None, Even and Odd
- Built-in MiniOS7 and watchdog timer for harsh-environment use
- 10/100 Base-TX Ethernet with auto-negotiation and auto MDI/MDI-X
179,00 € pro Stück
| 1–9 Stück | 179,00 € | |
|---|---|---|
| 10–30 Stück | 174,00 € | −3 % |
| ab 31 Stück | 170,00 € | −5 % |
Produktinformationen "DS-715 Serial-to-Ethernet Device Server, 1-port Isolated RS-422/485"

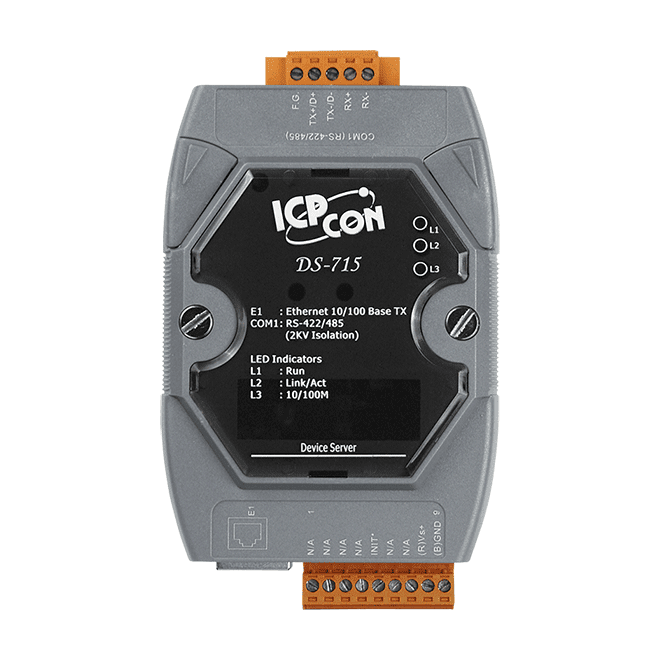

DS-715 CR brings a serial RS-422 or RS-485 device onto an Ethernet network without changing the device itself. Its single serial port is provided on a removable terminal block and can be wired as a 4-wire RS-422 port or a 2-wire RS-485 port, with 2000 Vrms isolation between the serial side and the rest of the unit.
With the VxComm driver and utility, the serial port can be mapped to a standard COM port on Windows PCs, so existing COM-based software can continue to work over the network. The unit can also operate standalone as a TCP Server or TCP Client, which suits applications where the serial device is accessed directly over TCP/IP. The 10/100 Base-TX RJ-45 port auto-negotiates and supports auto MDI/MDI-X.
The built-in MiniOS7 firmware and watchdog timer support dependable operation in harsh environments. The unit accepts 12 VDC to +48 VDC non-regulated input with reverse polarity protection, draws 2.0 W, and can be fitted to a DIN rail or a wall. Its operating range is -25 to +75 °C.
Applications
- Factory Automation
- Building Automation
- Home Automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | RS-422/485 |
| Ports: | 1 serial, 1 Ethernet (RJ-45) |
| Isolation: | 2000 Vrms |
| Power input: | 12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data return: 40 years. |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power 2 x Ethernet |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 1 x RS-485/RS-422 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd |
| Data Bit | 7, 8: for COM1 |
| Stop Bit | 1: for COM1 |
| Node Address | 254 (max.) |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 2.0 W |
| Powered from Terminal Block | 12 VDC ~ +48 VDC (non-regulated) |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 124 mm x 35 mm (W x H x D) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
