ECAT-M808-64AX/S PCI Express EtherCAT MainDevice Board, 64-Axis Motion
PCI Express EtherCAT MainDevice board for up to 64-axis motion and I/O control, with 13 DI, 13 DO and 2 encoder interfaces. Supplied with a DN-26 and a CA-2615M.
- Up to 64-axis motion control with up to 512 EtherCAT slaves
- EtherCAT cycle time up to 0.5 ms
- Synchronised motion (E-GEAR, E-CAM), virtual axes and multi-axis linear interpolation
- 13 digital inputs and 13 digital outputs on board
- 2 encoder interfaces (Quadrant, CW/CCW, Pulse/Dir.) with 32-bit resolution and 2-ch compare trigger output
- Second CPU with EtherCAT communication retention technology
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "ECAT-M808-64AX/S PCI Express EtherCAT MainDevice Board, 64-Axis Motion"

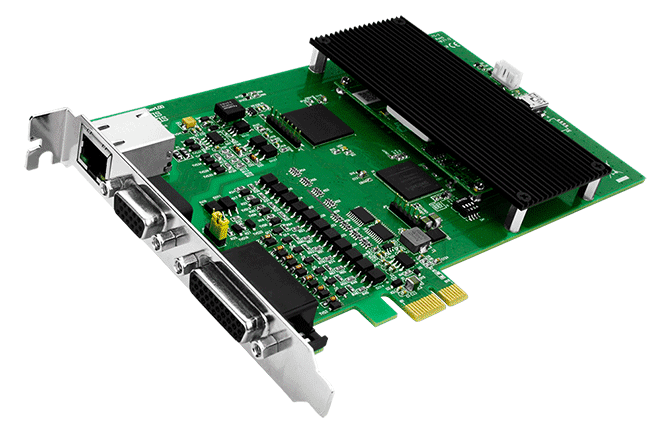

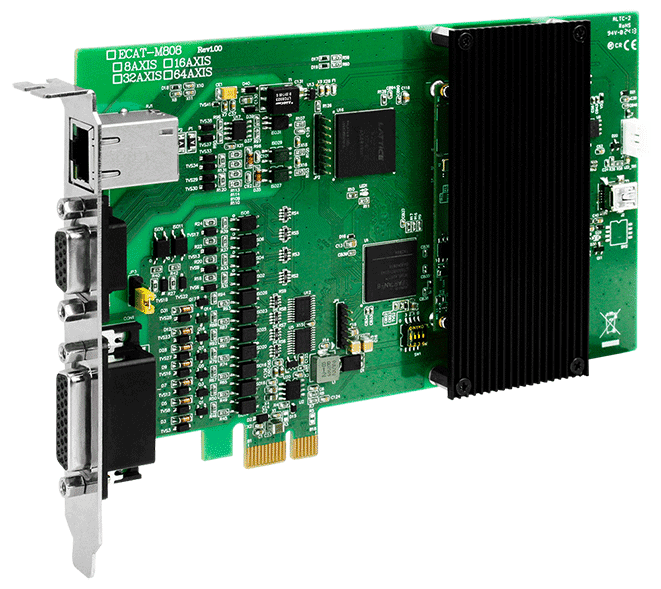

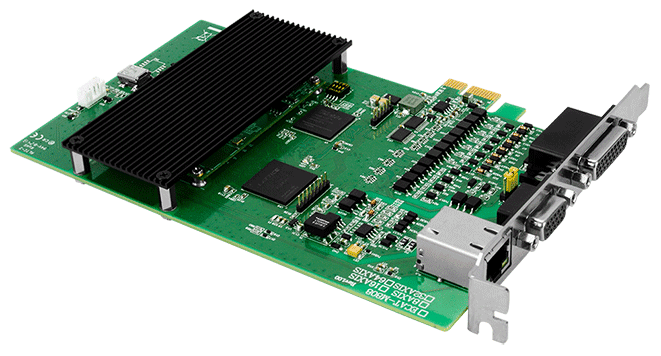

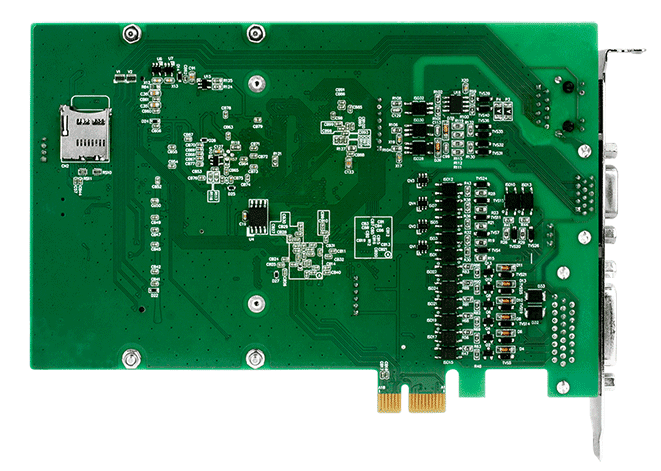

The ECAT-M808-64AX/S CR is a PCI Express EtherCAT MainDevice board for PC-based motion and I/O control. It controls up to 64 axes and up to 512 slaves, with an EtherCAT cycle time down to 0.5 ms. Its built-in CPU handles the motion and I/O functions, which reduces the processing load on the host PC.
Motion features include synchronised motion (E-GEAR and E-CAM), virtual axes and multi-axis linear interpolation. The board also provides 13 digital inputs, 13 digital outputs and 2 encoder interfaces with compare trigger outputs, so encoder feedback and discrete I/O can be handled on the same card.

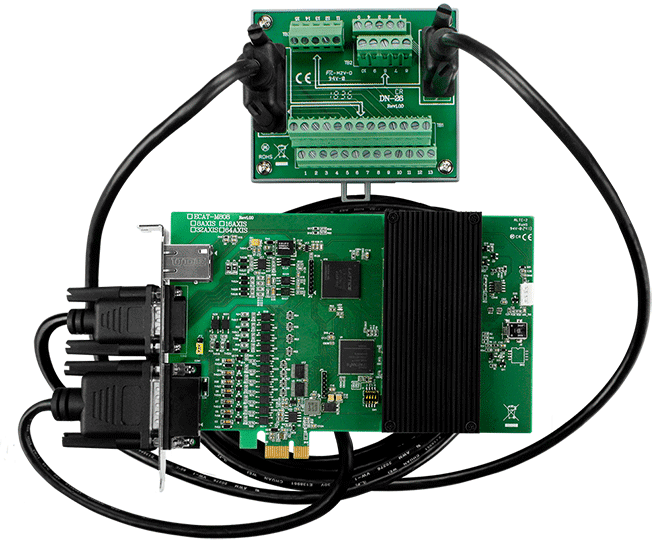

A second CPU supports EtherCAT communication retention, keeping EtherCAT communication and the process recipe running if the operating system or an application crashes. This ordering code includes a DN-26 and a CA-2615M, and the board is supplied with CE, UKCA, RoHS and WEEE certification.
Applications
- Motion control
- I/O control
- Data acquisition system
| Product type: | EtherCAT MainDevice board |
|---|---|
| Interface: | PCI Express x1 |
| Protocol: | EtherCAT |
| Digital inputs: | 13 |
| Digital outputs: | 13 |
| Ports: | 1 x RJ-45 |
| Isolation: | 3000 VDC / 3000 Vrms |
| Operating temperature: | 0 ~ +60 °C |
Technische Daten
| Hardware | |
|---|---|
| Connector | RJ45 x1 DB-26 (Female) DB-15 (Female) |
| Encoder Input | |
| No. of Axes | 2 |
| Type | Quadrant, CW/CCW, Pulse/Dir. |
| Resolution | 32-bit |
| Response Speed | 1 MHz |
| Compare Trigger Output | 2-ch |
| Digital Input | |
| Channels | 13 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +19 V ~ + 24 V |
| OFF Voltage Level | +11 V Max. |
| Isolation | 3000 VDC |
| Digital Output | |
| Channels | 13 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +24 V |
| Load Current | 100 mA/ch |
| Isolation | 3000 Vrms |
| PC Bus | |
| Type | PCI Express x1 |
| EtherCAT | |
| Ports | 1 x RJ-45 |
| No. of Axes | ECAT-M808-8AX Max. 8 ECAT-M808-16AX Max. 16 ECAT-M808-32AX Max. 32 ECAT-M808-64AX Max. 64 ECAT-M808-8AX/S Max. 8 ECAT-M808-16AX/S Max. 16 ECAT-M808-32AX/S Max. 32 ECAT-M808-64AX/S Max. 64 |
| No. of Nodes | Max. 512 |
| Data Transfer Medium | Ethernet Cable (Min. CAT 5e), Shielded |
| Mechanical | |
| Dimensions (mm) | 135 x 192 x 21.5 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 0 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
