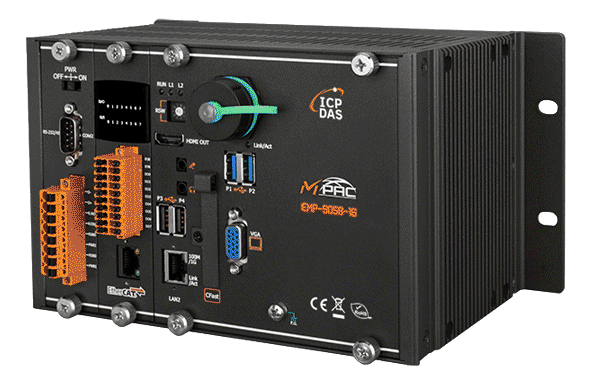

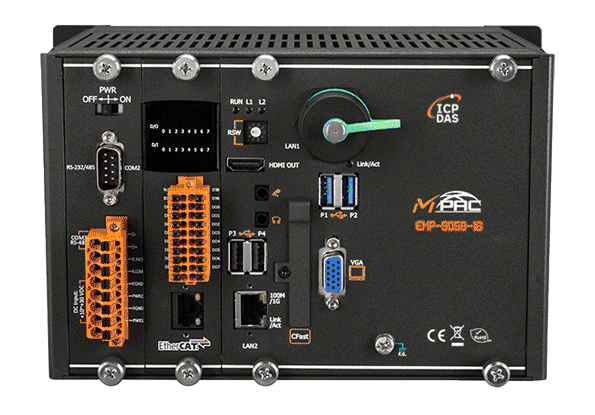

EMP-9058-16 Win-GRAF EtherCAT Motion Controller, 16-Axis, i5-8365UE CPU
Windows IoT motion controller with a SoftPLC runtime, real-time EtherCAT master and 16-axis motion control on an i5-8365UE CPU. No expansion slots fitted.
- Embedded Windows 10 IoT Enterprise with SoftPLC runtime and real-time EtherCAT master
- Supports IEC 61131-3 languages FBD, LD, IL, ST and SFC
- PLCopen and CiA402 motion function blocks for single- and multi-axis control, rated for 16 axes in this code
- Communication via EtherCAT, Modbus TCP/RTU and an OPC UA server
- 8 digital inputs (wet contact, sink/source) and 8 open-collector outputs (1000 mA/ch) on board
- Dual 10/100/1000 Base-TX Ethernet ports, RS-485 and RS-232/RS-485 COM ports, and 4 x USB 2.0
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "EMP-9058-16 Win-GRAF EtherCAT Motion Controller, 16-Axis, i5-8365UE CPU"
The EMP-9058-16 CR is a SoftPLC-based motion controller that runs a PLC, multi-axis motion logic and Windows applications side by side. Its EtherCAT master and motion engine run on a dedicated processor in a real-time environment, so control timing stays deterministic while Windows software such as HMIs or data processing tools operates alongside it.
Programming follows IEC 61131-3, with FBD, LD, IL, ST and SFC available, and motion function blocks based on PLCopen and CiA402. The controller is rated for 16 axes in this ordering code, with a 0.5 ms cycle time specified for the series. Modbus TCP/RTU and an OPC UA server are built into the PLC runtime, so the unit can act as a Modbus/EtherCAT gateway or connect directly to standard OPC UA clients.
This variant uses the Intel Core i5-8365UE processor with 16 GB DDR4 memory and has no expansion slots. Its 8 digital inputs and 8 open-collector outputs are provided on board, and it is suited to machine-builders and system integrators who need a compact, metal-housed controller for control panels or machine cabinets.
Applications
- Multi-axis machine motion control with EtherCAT servo or stepper drives
- Machine-builder and OEM automation with in-house or third-party Windows HMIs
- Data gathering and processing alongside PLC control
- Connecting machines to SCADA or cloud systems via OPC UA
- Modbus network integration as a Modbus/EtherCAT gateway
| Product type: | Motion controller |
|---|---|
| Interface: | EtherCAT, Ethernet, RS-232/485, USB 2.0 |
| Protocol: | EtherCAT, Modbus TCP, OPC UA |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Ports: | 2 x Ethernet, 1 x EtherCAT, 2 x COM, 4 x USB |
| Isolation: | 3000 VDC |
| Power input: | +19 ~ 30 VDC |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise (64-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Compact Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | EMP-9x58-xx : Intel® Core™ i5-8365UE Processor (1.6 ~ 4.1 GHz, 4C8T) EMP-9098-xx : Intel Atom E3950(1.6 ~ 2.0 GHz, 4C4T) |
| 64-bit Hardware Serial Number | Yes |
| System Memory | EMP-9x58-xx : 16 GB DDR4 SDRAM EMP-9098-xx : 8 GB DDR4 SDRAM |
| Storage | 1x 128 GB SSD 1x CFast card slot |
| Non-Volatile Memory | 128 KB MRAM 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA, HDMI |
| Resolution | VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) HDMI 2560 x 1600 @ 24bpp |
| LED Indicators | |
| Status | EMP-9058-16, EMP-9058-32 : 1 x System, 3 x Programmable EMP-9258-16, EMP-9258-32 : 1 x System, 3 x Programmable EMP-9658-16, EMP-9658-32 : 1 x System, 2 x Programmable EMP-9098-16, EMP-9098-32 : 1 x System, 3 x Programmable |
| Interpolation | |
| Circular | Any 2- or 3-axis |
| Helical | Any 3-axis |
| Linear | Any 2- or 32-axis |
| Digital Input | |
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +19V ~ +24V |
| OFF Voltage Level | +11V Max. |
| Isolation | 3000VDC |
| Digital Output | |
| Channels | 8 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +24V |
| Load Current | 1000 mA/ch |
| Isolation | 3000Vrms |
| I/O Expansion | |
| I/O Type | e9K, I-9K, I-97K series |
| Slots | EMP-9058-16, EMP-9058-32 : - EMP-9258-16, EMP-9258-32 : 2 EMP-9658-16, EMP-9658-32 : 6 EMP-9098-16, EMP-9098-32 : - |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-485 (3000 VDC Isolated) 1 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 4 x USB 2.0 |
| EtherCAT | |
| Ports | 1 x RJ-45 |
| No. of Axes | EMP-9058-16 : Max. 16 EMP-9058-32 : Max. 32 EMP-9258-16 : Max. 16 EMP-9258-32 : Max. 32 EMP-9658-16 : Max. 16 EMP-9658-32 : Max. 32 EMP-9098-16 : Max. 16 EMP-9098-32 : Max. 32 |
| No. of Nodes | Max. 512 |
| Data Transfer Medium | Ethernet Cable (Min. CAT 5e), Shielded |
| Power | |
| Input Range | +19 ~ 30 VDC ( 2 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | EMP-9058-16, EMP-9058-32 : 30.5 W (Typical) / 71 W (CPU Full Load) EMP-9258-16, EMP-9258-32 : 31.5 W (Typical) / 72 W (CPU Full Load) EMP-9658-16, EMP-9658-32 : 32.6 W (Typical) / 73 W (CPU Full Load) EMP-9098-16, EMP-9098-32 : 18.5 W |
| Mechanical | |
| Dimensions (mm) | EMP-9058-16, EMP-9058-32 : 239 x 164 x 133 (W x L x H) EMP-9258-16, EMP-9258-32 : 300 x 164 x 133 (W x L x H) EMP-9658-16, EMP-9658-32 : 422 x 164 x 133 (W x L x H) EMP-9098-16, EMP-9098-32 : 239 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
