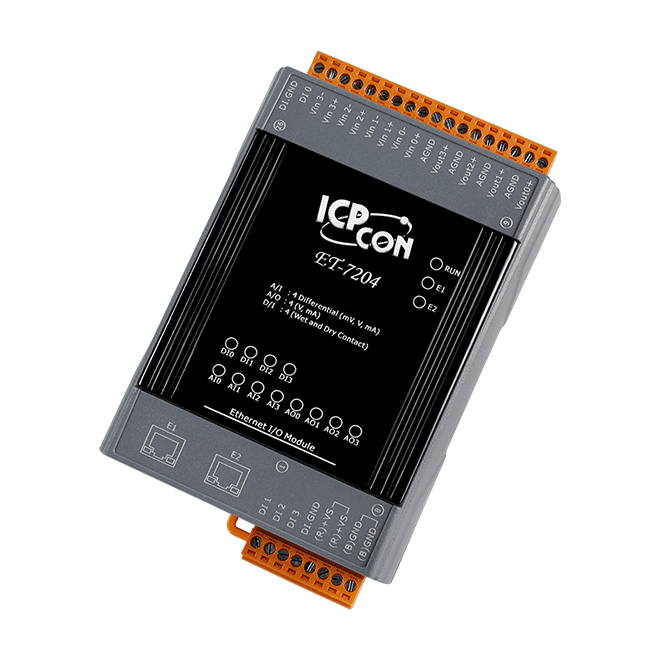

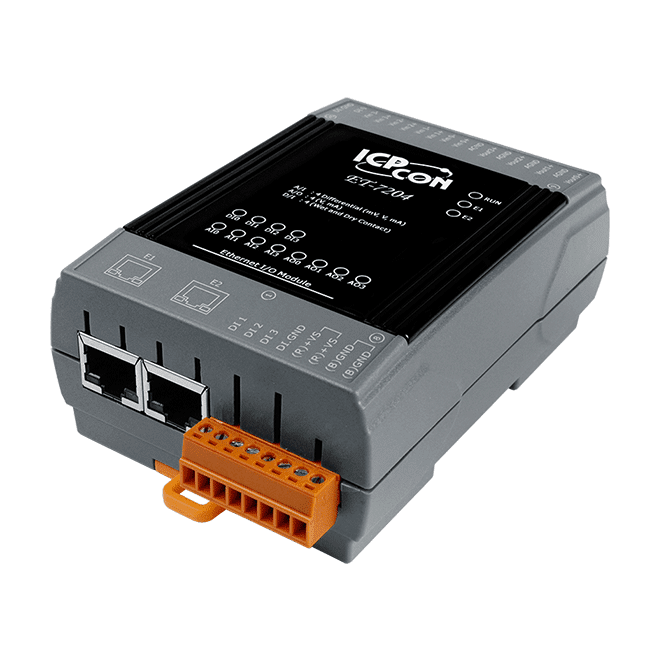

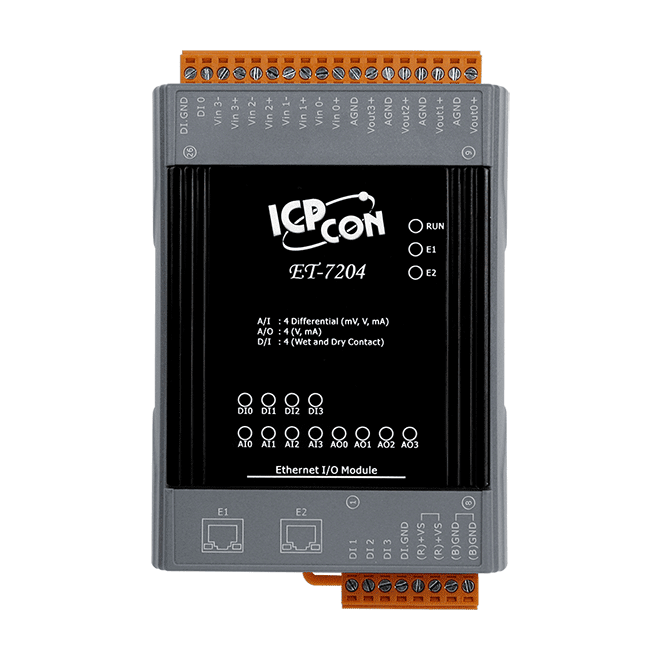

ET-7204 Ethernet I/O Module, 4-ch AI/AO/DI with 2-port Switch
Ethernet I/O module with 4 analogue inputs, 4 analogue outputs and 4 digital inputs, plus a 2-port switch for daisy-chaining and Modbus TCP/UDP support.
- 4 differential analogue inputs, 16-bit, voltage or current selectable by jumper, ranges from ±500 mV to ±20 mA
- 4 analogue outputs, 12-bit, voltage or current selectable by jumper, with programmable power-on and safe values
- 4 digital inputs supporting dry or wet contact, with 32-bit counters and 100 Hz frequency
- 2-port 10/100 Base-TX Ethernet switch with LAN bypass for daisy-chain topology
- Modbus TCP and Modbus UDP protocol support, built-in web server and Web HMI
- Dual watchdog (module and communication) and I/O pair connection
424,00 € pro Stück
| 1–9 Stück | 424,00 € | |
|---|---|---|
| 10–30 Stück | 412,00 € | −3 % |
| ab 31 Stück | 403,00 € | −5 % |
Produktinformationen "ET-7204 Ethernet I/O Module, 4-ch AI/AO/DI with 2-port Switch"
The ET-7204 CR is a multifunction Ethernet I/O module that combines four analogue inputs, four analogue outputs and four digital inputs or counters in one DIN-rail unit. Each analogue input can be set to a suitable range, with 240 Vrms overvoltage protection, and each analogue input or output can be switched between voltage and current using its jumper position.
An integrated 2-port 10/100 Base-TX switch with LAN bypass allows the module to be daisy-chained along a network line without a separate switch. Modbus TCP and Modbus UDP are supported, and the built-in web server provides a Web HMI for configuration and monitoring.
Engineers typically choose the ET-7204 CR for building and factory automation, machine control, and remote maintenance or diagnosis projects, as well as test equipment. Dual watchdogs and programmable power-on and safe output values help keep the process in a defined state.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP |
| Digital inputs: | 4 |
| Analog inputs: | 4 |
| Analog outputs: | 4 |
| Ports: | 2 |
| Isolation: | 1500 VDC (Ethernet), 2500 VDC (I/O) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Analog Input | |
| Channels | 4 (Differential) |
| Type | Voltage Current |
| Range | ±500 mV, ±1 V, ±5 V, ±10 V 0 ~ 20 mA, ±20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% Fast Mode: ±0.5% or better |
| Sampling Rate | Normal Mode: 10 Hz (total channels) Fast Mode: 50 Hz (total channels) |
| Input Impedance | Voltage: 2 MΩ Current: 125 Ω |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | 240 Vrms |
| Overcurrent Protection | 50 mA at 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Open Wire Detection | For 4 ~ 20 mA only |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Analog Output | |
| Channels | 4 |
| Type | Voltage Current |
| Range | +0 ~ +5 VDC, ±5 VDC, +0 ~ +10 VDC, ±10 VDC 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Open Wire Detection | For 4 ~ 20 mA only |
| Voltage Output Capability | 10 V @ 20 mA |
| Current Load Resistance | 400 Ω |
| Individual Channel Configuration | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Digital Input/Counter | |
| Channels | 4 |
| Type | Dry Contact Wet Contact |
| ON Voltage Level | Dry: Open Wet: +1 VDC (max.) |
| OFF Voltage Level | Dry: Close to GND Wet: +3.5 ~ +30 VDC |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Effective Distance | 500m (max.) |
| Overvoltage Protection | +30 VDC |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 4.9 W (max.) |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 76 x 120 x 42 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
