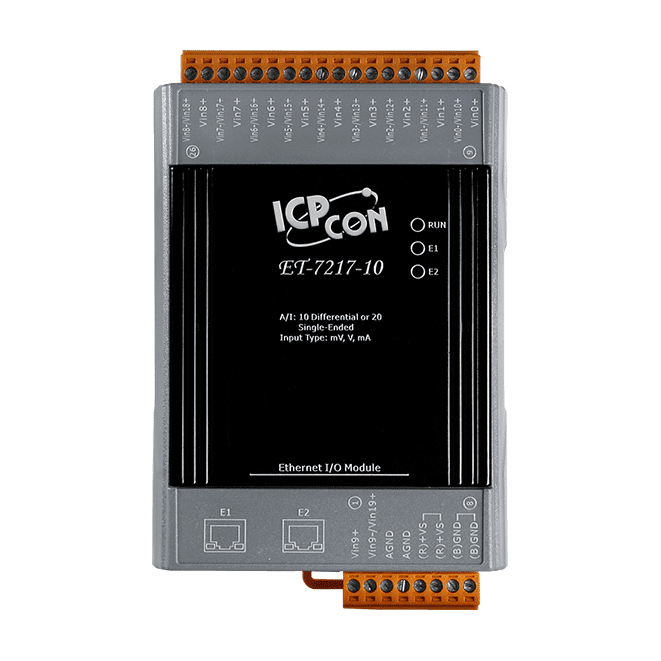

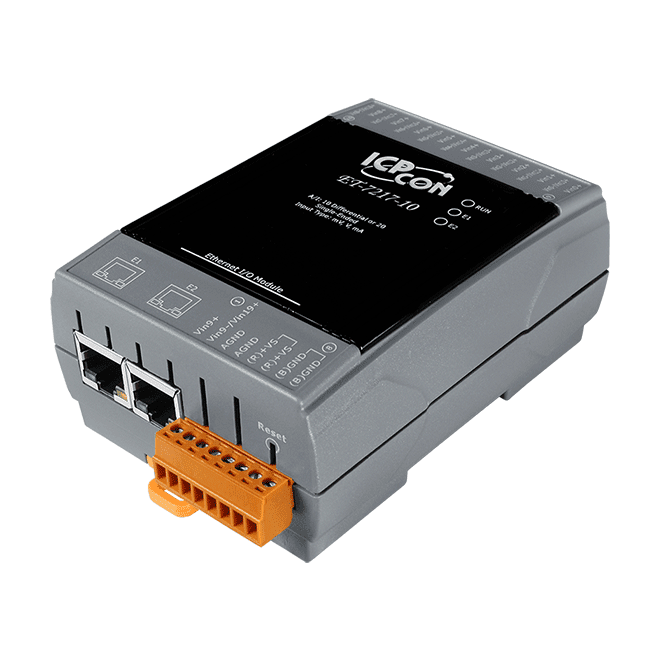

ET-7217-10 Ethernet I/O Module, 10/20-ch Analog Input with 2-port Switch
Ethernet I/O module with a 2-port switch and LAN bypass for daisy-chain wiring, offering 10 differential or 20 single-ended analog inputs with Modbus TCP and Modbus UDP support.
- 10 differential or 20 single-ended analogue inputs, configurable per channel
- Voltage and current ranges selectable in software, with jumper-selected input type
- 2-port 10/100 Base-TX switch with LAN bypass for daisy-chain topology
- Modbus TCP and Modbus UDP support with built-in web server and web HMI
- Access control by ID, password and IP filter, plus Communication Security
- Normal mode at 10 Hz and fast mode at 50 Hz sampling for all channels
319,00 € pro Stück
| 1–9 Stück | 319,00 € | |
|---|---|---|
| 10–30 Stück | 309,00 € | −3 % |
| ab 31 Stück | 303,00 € | −5 % |
Produktinformationen "ET-7217-10 Ethernet I/O Module, 10/20-ch Analog Input with 2-port Switch"
The ET-7217-10 CR brings analogue signal acquisition onto Ethernet, with 10 differential or 20 single-ended analogue inputs that can be configured channel by channel. Each channel is set to a voltage or current range in software, and the matching hardware jumper selects voltage or current input, so one module can handle a mixed set of sensor signals.
Engineers will value the built-in 2-port switch with LAN bypass, which lets modules be daisy-chained along a line without a separate switch. The module offers a built-in web server with web HMI, Modbus TCP and Modbus UDP communication, and Communication Security with ID, password and IP filter access control. Two sampling modes let you trade speed against accuracy, with the normal mode rated at 10 Hz and the fast mode at 50 Hz across all channels.
Protection features include 240 Vrms overvoltage protection on differential inputs, ±4 kV contact ESD protection on each terminal, and isolation rated at 2500 VDC on I/O and 1500 VDC on Ethernet. The module runs from +12 ~ +48 VDC and operates between -25 ~ +75 °C, and it mounts on a DIN rail.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP |
| Analog inputs: | 10 differential / 20 single-ended |
| Ports: | 2 x RJ-45 |
| Isolation: | 2500 VDC (I/O), 1500 VDC (Ethernet) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Analog Input | |
| Channels | 10 differential or 20 single-ended (Note1), software selectable |
| Type | Voltage Current |
| Range | ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% Fast Mode: ±0.5% or better |
| Sampling Rate | Normal Mode: 10 Hz (total channels) Fast Mode: 50 Hz (total channels) |
| Input Impedance | Voltage: 2 MΩ (Differential), 1 MΩ (Single-ended) Current: 125 Ω |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | Differential: 240 Vrms Single-ended: 150 Vrms |
| Overcurrent Protection | 50 mA at 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Open Wire Detection | For 4 ~ 20 mA only |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 3.6 W (max.) |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 76 x 120 x 42 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
