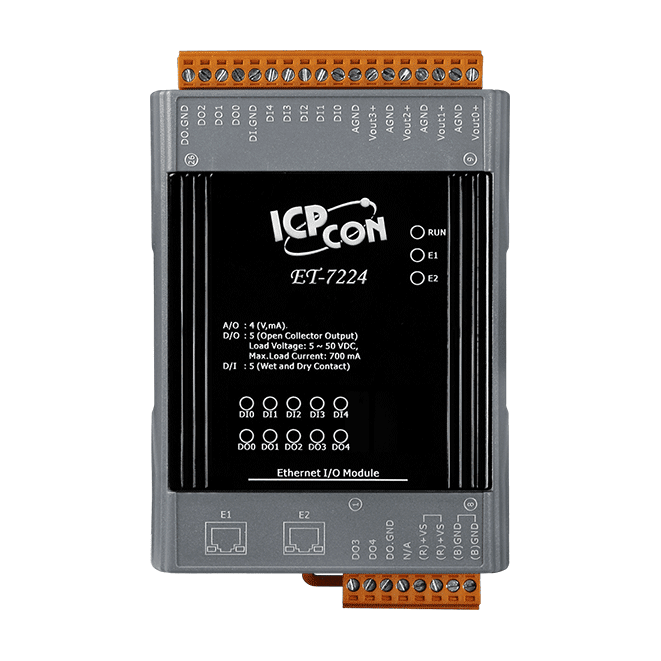

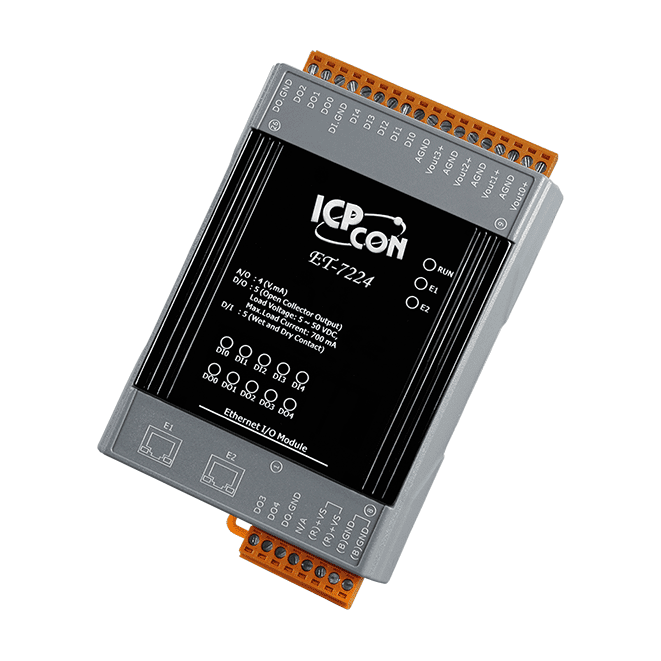

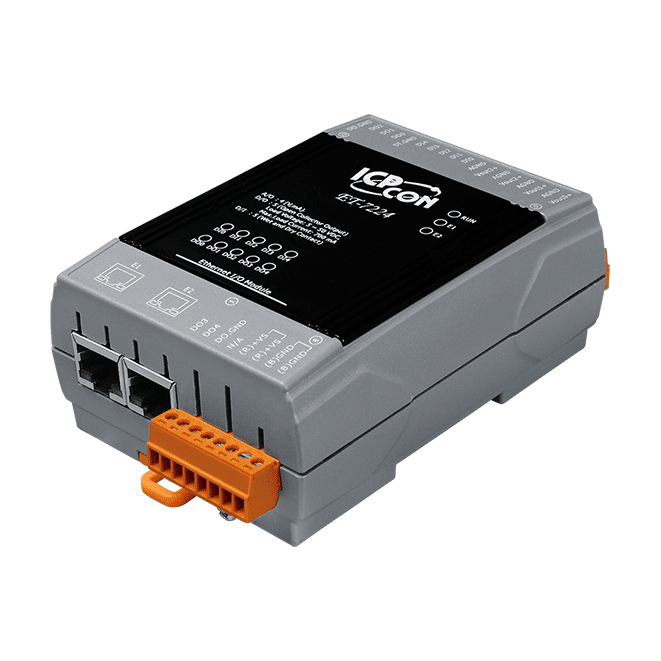

ET-7224 Ethernet I/O Module, 4-ch AO, 5-ch DI, 5-ch DO with 2-port Switch
Ethernet I/O module with 4 analogue outputs, 5 digital inputs and 5 digital outputs, plus a 2-port switch with LAN bypass for daisy-chain wiring and Modbus TCP/UDP.
- Four analogue outputs, jumper-selectable between voltage and current ranges, including +/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA
- 12-bit resolution with ±0.1% of FSR accuracy; open wire detection for 4 ~ 20 mA only
- Five digital inputs supporting dry or wet contact, with a 32-bit counter and 100 Hz frequency
- Five isolated open collector digital outputs, sink type, 600 mA per channel
- 2-port 10/100 Base-TX switch with LAN bypass for daisy-chain topology
- Modbus TCP and Modbus UDP support, built-in web server and web HMI
353,00 € pro Stück
| 1–9 Stück | 353,00 € | |
|---|---|---|
| 10–30 Stück | 342,00 € | −3 % |
| ab 31 Stück | 335,00 € | −5 % |
Produktinformationen "ET-7224 Ethernet I/O Module, 4-ch AO, 5-ch DI, 5-ch DO with 2-port Switch"
The ET-7224 CR combines analogue output, digital input and digital output channels in one DIN-rail Ethernet I/O module. Each of its four analogue outputs can be set by jumper to voltage or current, covering +/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA, which suits engineers who need to drive a mix of field actuators from a single module.
Communication is handled over Modbus TCP and Modbus UDP, with a built-in web server and web HMI for configuration and monitoring. The integrated 2-port 10/100 Base-TX switch, with LAN bypass, allows the module to be daisy-chained along a network line without a separate switch at each node.
Designed for building, factory and machine automation as well as remote maintenance and diagnosis, the module offers dual watchdogs, programmable power-on and safe values for outputs, and 2500 VDC I/O isolation with 1500 VDC Ethernet isolation.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP |
| Digital inputs: | 5 |
| Digital outputs: | 5 |
| Analog outputs: | 4 |
| Ports: | 2 |
| Isolation: | 2500 VDC (I/O), 1500 VDC (Ethernet) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Analog Output | |
| Channels | 4 |
| Type | Voltage Current |
| Range | +0 ~ +5 VDC, ±5 VDC, +0 ~ +10 VDC, ±10 VDC 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Open Wire Detection | For 4 ~ 20 mA only |
| Voltage Output Capability | 10 V @ 20 mA |
| Current Load Resistance | 500 Ω |
| Individual Channel Configuration | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Digital Input/Counter | |
| Channels | 5 |
| Type | Dry Contact Wet Contact |
| ON Voltage Level | Dry: Close to GND Wet: +1 VDC (max.) |
| OFF Voltage Level | Dry: Open Wet: +3.5 ~ +30 VDC |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Effective Distance | 500m (max.) |
| Overvoltage Protection | +30 VDC |
| Digital Output | |
| Channels | 5 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +50 VDC |
| Load Current | 600 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 5.2 W (max.) |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 76 x 120 x 42 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
