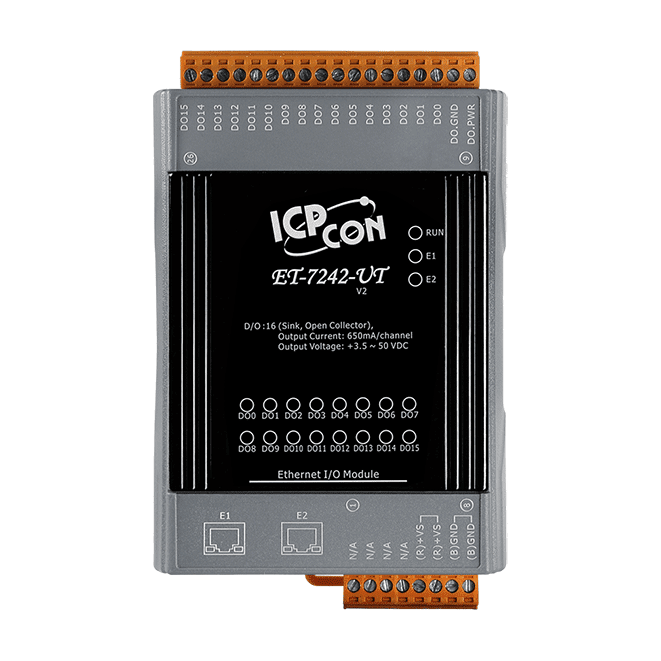

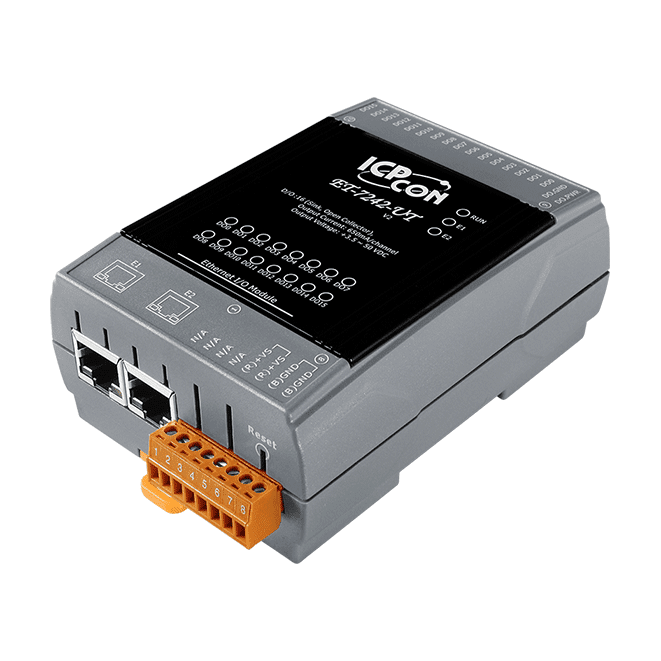

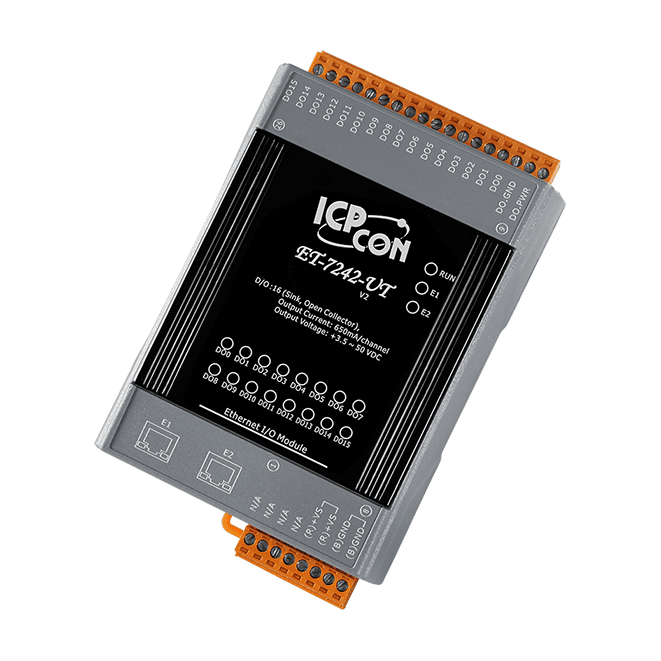

ET-7242-UT Ethernet I/O Module, 16-ch Sink-type DO with 2-port Switch
16-channel sink-type digital output Ethernet I/O module with a 2-port switch for daisy-chaining, Modbus TCP and UDP support, and operation from -40 to 75 °C.
- 16 isolated sink-type open-collector digital outputs, 650 mA per channel at 25°C
- Load voltage +3.5 to +50 VDC with +60 VDC overvoltage protection and short-circuit protection
- Built-in web server and Web HMI for browser-based access
- Modbus TCP and Modbus UDP support
- 2-port 10/100 Base-TX Ethernet switch with LAN bypass for daisy-chain topology
- Dual watchdog: module and communication, programmable
285,00 € pro Stück
| 1–9 Stück | 285,00 € | |
|---|---|---|
| 10–30 Stück | 276,00 € | −3 % |
| ab 31 Stück | 270,00 € | −5 % |
Produktinformationen "ET-7242-UT Ethernet I/O Module, 16-ch Sink-type DO with 2-port Switch"
The ET-7242-UT is an Ethernet-connected I/O module providing 16 isolated open-collector sink-type digital outputs. Each channel carries up to 650 mA at 25°C and can directly drive a power relay module, which is useful when switching inductive loads.
The built-in web server and Web HMI let engineers configure and monitor the module from a browser, while Modbus TCP and Modbus UDP provide host communication. The integrated 2-port 10/100 Base-TX switch with LAN bypass supports daisy-chain wiring. Dual watchdogs for the module and communication are programmable, and the power-on and safe values of each digital output can be set.
Optical isolation is rated at 3750 VDC on the I/O side and 1500 VDC on the Ethernet side. ESD, EFT and surge protection are specified to IEC 61000-4-2, -4-4 and -4-5. The module is rated for -40 to 75 °C operation and mounts on DIN-rail.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP |
| Digital outputs: | 16 |
| Ports: | 2 |
| Isolation: | 3750 VDC I/O, 1500 VDC Ethernet |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3750 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Output | |
| Channels | 16 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | + 3.5 ~ + 50 VDC |
| Load Current | 650 mA/channel at 25°C Direct Drive Power Relay Module |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.3 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 3.2 W (max.) |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 76 x 120 x 42 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -40 ~ +75°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
