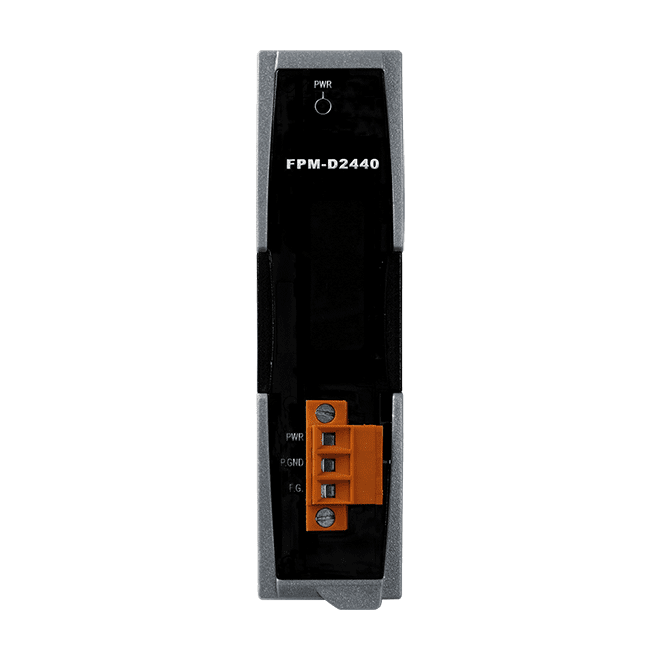

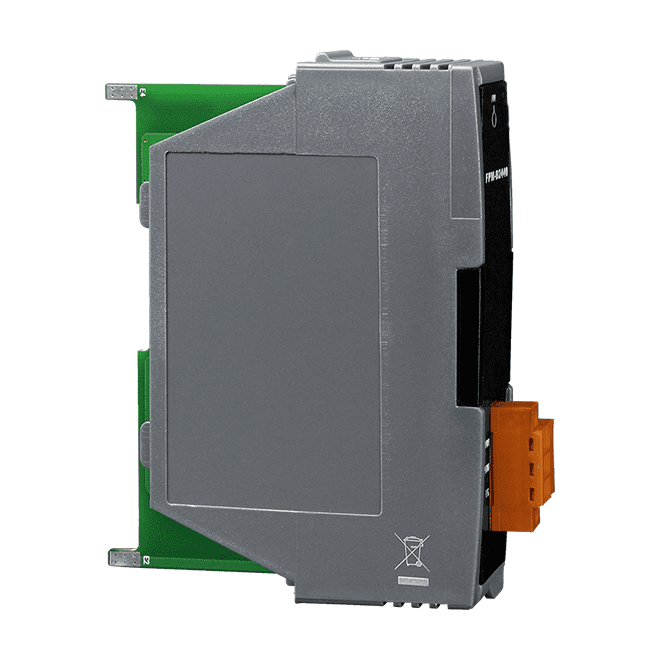

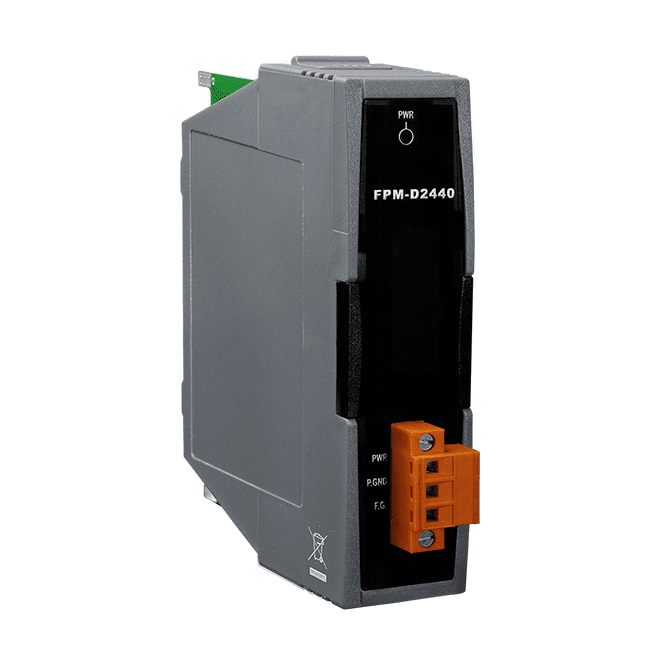

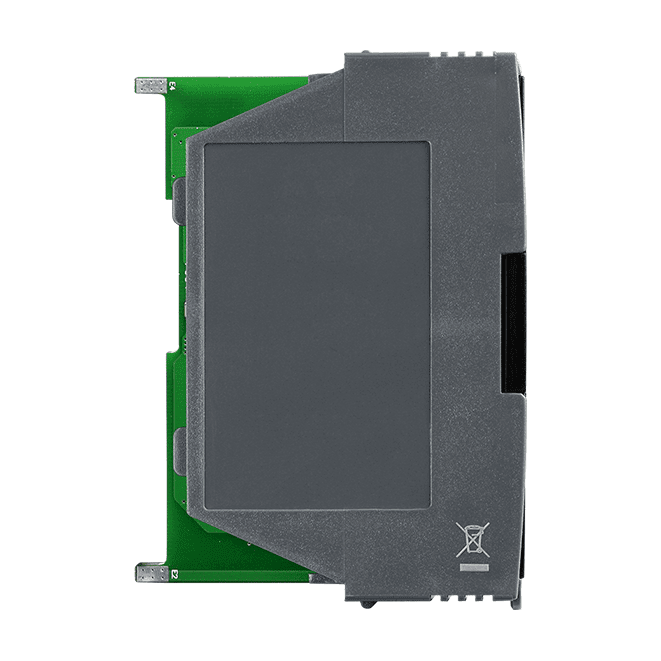

FPM-D2440 Field Power Module, 24 VDC Input for iDCS-8000 System
24 VDC input power module for the iDCS-8000 system, providing isolated 5V power up to 40W and non-isolated 24V output with 5A fuse limitation.
- 24 VDC input power module for the iDCS-8000 system
- Isolated 5V output, maximum 40W to the iDCS-8000 system
- Non-isolated 24V output with 5A fuse limitation
- 1000 VDC isolation between channels and backplane bus
- Reverse polarity protection
- EFT (IEC 61000-4-4) and ESD (IEC 61000-4-2) protection
334,00 € pro Stück
| 1–9 Stück | 334,00 € | |
|---|---|---|
| 10–30 Stück | 324,00 € | −3 % |
| ab 31 Stück | 317,00 € | −5 % |
Produktinformationen "FPM-D2440 Field Power Module, 24 VDC Input for iDCS-8000 System"
The FPM-D2440 CR supplies power to the iDCS-8000 system from a 24 VDC input. It provides an isolated 5V output rated at a maximum of 40W for the system, alongside a non-isolated 24V output protected by a 5A fuse limitation.
Galvanic isolation of 1000 VDC is provided between the channels and the backplane bus. Should a high voltage or current fault affect a channel, the backplanes, other modules and the control unit are shielded from the fault. A local LED shows power status, and the module includes reverse polarity protection.
Typical uses include building, factory and machine automation, as well as remote maintenance, remote diagnosis and test equipment. Specified EFT and ESD immunity to IEC 61000-4-4 and IEC 61000-4-2 supports reliable operation in electrically noisy environments.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Power Module |
|---|---|
| Isolation: | 1000 VDC |
| Power input: | 24 VDC |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 x Power |
| Power | |
| Reverse Polarity Protection | Yes |
| Mechanical | |
| Dimensions (mm) | 30 x 85 x 115 |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
