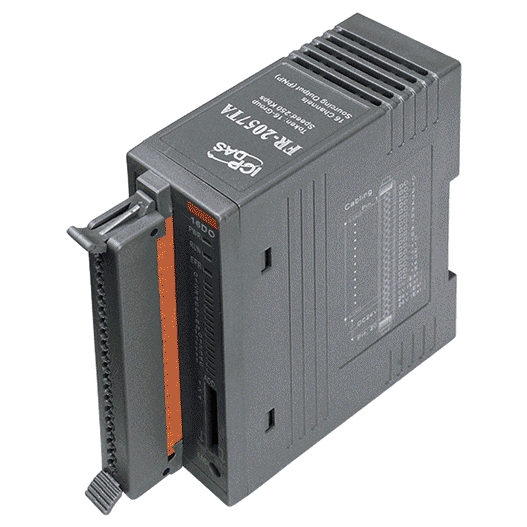

FR-2057TA FRnet I/O Module, 16-ch Isolated Source (PNP) Digital Output
FRnet remote I/O module with 16 isolated PNP (source) digital outputs, rated 30 VDC and 100 mA per channel, running at 250 kbps over up to 400 m of cable.
- 16 isolated PNP (source) digital outputs, 30 VDC max load, 100 mA max per channel
- FRnet interface at 250 kbps over up to 400 m using 2-wire Belden 9841 cabling
- 3750 Vrms intra-module isolation
- Fixed I/O scan time of 2.88 ms with I/O synchronisation
- Supports broadcasting (1:n) and easy output duplication
- EFT, ESD and surge immunity to IEC 61000-4-4, IEC 61000-4-2 and IEC 61000-4-5
155,00 € pro Stück
| 1–9 Stück | 155,00 € | |
|---|---|---|
| 10–30 Stück | 150,00 € | −3 % |
| ab 31 Stück | 147,00 € | −5 % |
Produktinformationen "FR-2057TA FRnet I/O Module, 16-ch Isolated Source (PNP) Digital Output"

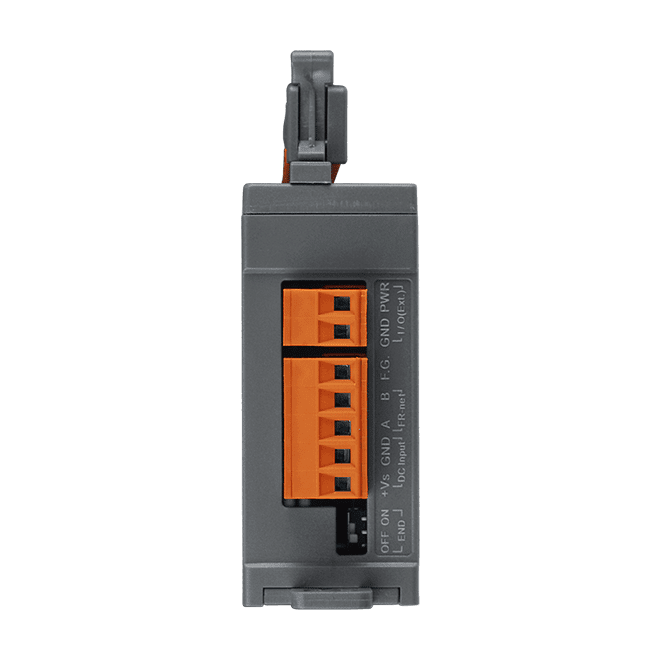

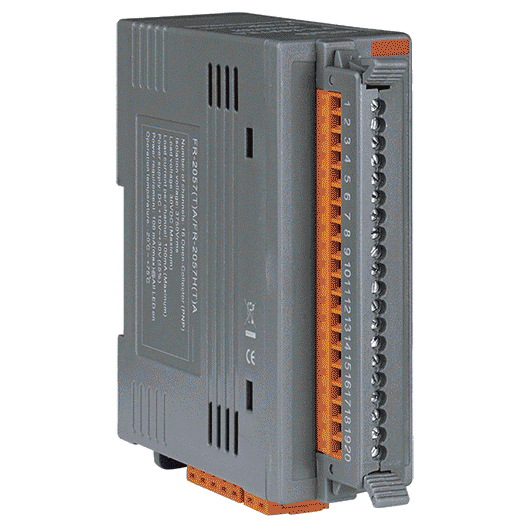

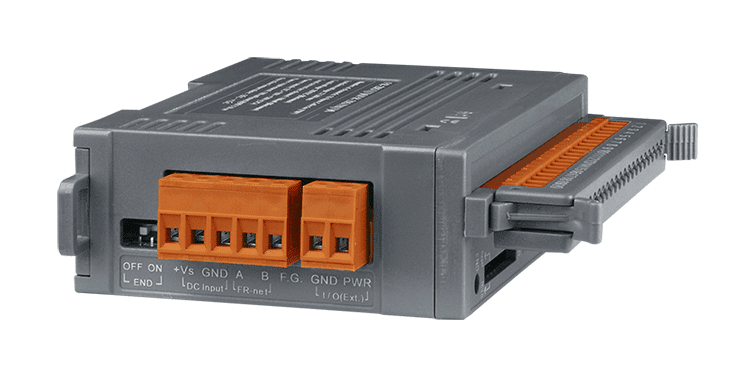

The FR-2057TA adds 16 isolated digital outputs to an FRnet network. Each channel is a PNP (source) open-collector output rated at 30 VDC and 100 mA maximum, with 3750 Vrms isolation. Modules are daisy-chained over a 2-wire FRnet bus, so a PC, PAC or PLC can control remote outputs without a dedicated I/O cabinet layout.
FRnet handles the wire-saving DI/DO control in hardware, so there is no software overhead on protocol processing. Outputs can be broadcast to several modules at once (1:n), duplicated easily, and updated on a fixed I/O scan time of 2.88 ms with I/O synchronisation.
This variant runs at 250 kbps with a transfer distance of up to 400 m. The FR-2057HTA, by comparison, runs at 1 Mbps over up to 100 m with a 0.72 ms cyclic time. The module is DIN-rail mounted, uses a 10 to 30 VDC supply with reverse polarity protection, and operates from -25 to +75 °C.
Applications
- Remote digital output control from a PC, PAC or PLC
- Extending remote I/O over a daisy-chained FRnet network
- Distributed switching of PNP-type loads in industrial control panels
| Product type: | Remote I/O module |
|---|---|
| Interface: | FRnet |
| Digital outputs: | 16 |
| Isolation: | 3750 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 Vrms |
| EMS Protection | |
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| Surge (IEC 61000-4-5) | Yes |
| LED Indicators | |

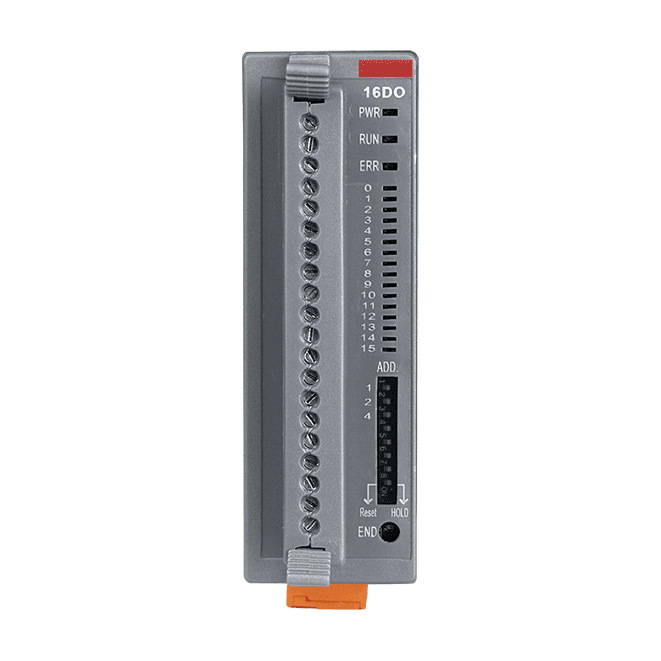

| Status | Power, Communication Run, Communication Error, Terminal Resistor, Digital Output |
| Digital Output | |
| Channels | 16 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Source (PNP) |
| Load Voltage | 30 VDC Max. |
| Load Current | 100 mA Max. |
| Isolation | 3750 Vrms |
| FRnet | |
| Wire Cable | 2-wire cabling Belden 9841 (2P twisted-pair cable), When different cables are used, the transmission distance may change |
| Transfer Speed | 250 kbps for FR-2057TA 1 Mbps for FR-2057HTA |
| Transfer Distance | Max. 400 m for FR-2057TA Max. 100 m for FR-2057HTA |
| Cyclic Time | 2.88 ms for FR-2057TA 0.72 ms for FR-2057HTA |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC (Non-isolation) |
| Consumption | 2.4 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 102 x 107 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
