FSM-510G-2F L2 Plus Managed Switch, 8-port Gigabit + 2 SFP
L2 Plus managed switch with 8 x 10/100/1000Base-T ports and 2 SFP slots, offering RSTP ring fail-over under 20 ms, IGMP snooping and SNMP management.
- 8 x 10/100/1000Base-T RJ-45 ports plus 2 x 100/1000 Mbps SFP fibre module slots
- Ring redundancy with STP and RSTP, fail-over under 20 ms
- IGMP v1/v2/v3 multicast support with proxy and snooping
- Storm control for multicast, broadcast and unknown unicast traffic
- Managed via RS-232 console, Telnet, web interface and SNMP
- QoS, VLAN, port trunking, IEEE 802.1X access control and port security
1.029,00 € pro Stück
| 1–9 Stück | 1.029,00 € | |
|---|---|---|
| 10–30 Stück | 998,00 € | −3 % |
| ab 31 Stück | 978,00 € | −5 % |
Produktinformationen "FSM-510G-2F L2 Plus Managed Switch, 8-port Gigabit + 2 SFP"

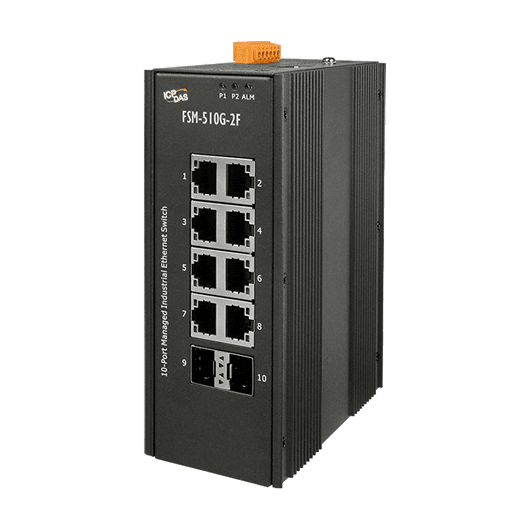

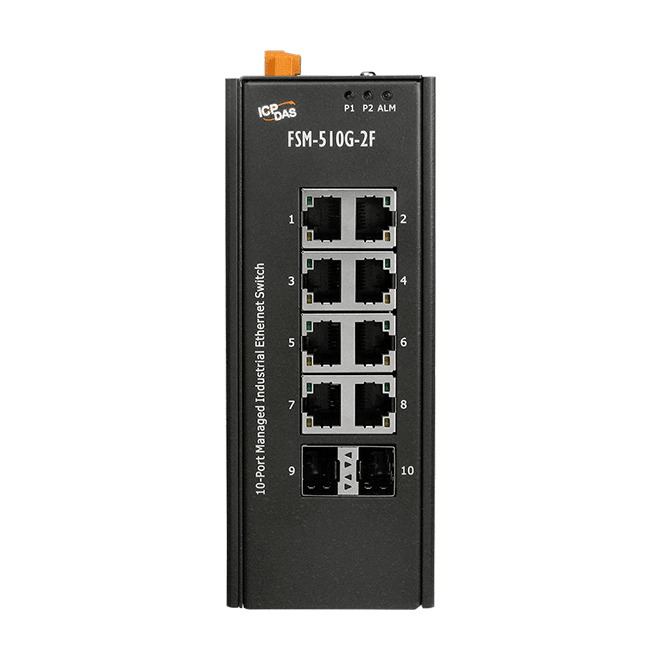

The FSM-510G-2F CR is a Layer 2 Plus managed switch for Ethernet networks that need Gigabit copper ports, fibre uplinks and centralised control. It combines eight RJ-45 ports at 10/100/1000 Mbps with two SFP slots for 100 or 1000 Mbps fibre modules.

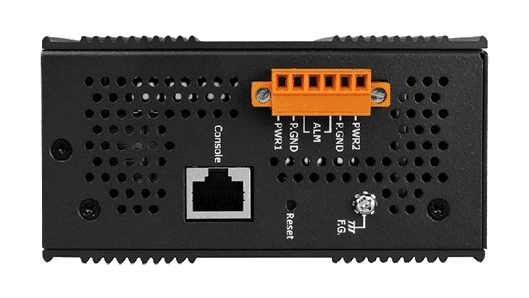

Configuration is available over an RS-232 console, Telnet or a web-based interface, and SNMP allows the switch to be monitored and controlled remotely. QoS, VLAN, port trunking, port security and port mirroring help engineers segment traffic, prioritise critical data and tighten access control on high-bandwidth segments.

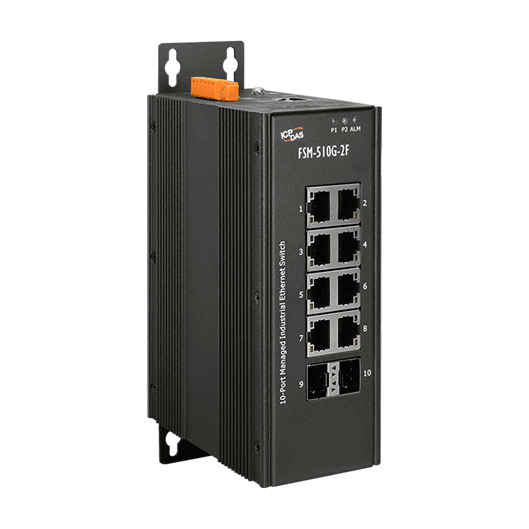

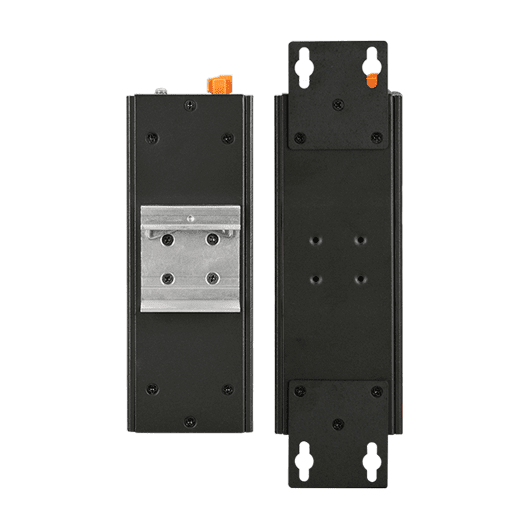

Ring redundancy with STP and RSTP provides fail-over in under 20 ms, and IGMP v1/v2/v3 snooping and proxy support keep multicast traffic under control. This ordering code includes a console cable and a wall mount kit, and the switch can be installed on a DIN rail or on a wall.
Applications
- Industrial communication networks
- High-bandwidth Ethernet segments that require VLAN segmentation and QoS
| Product type: | Managed Switch |
|---|---|
| Interface: | 10/100/1000Base-T, SFP |
| Protocol: | IGMP, LLDP, SNMP, Telnet |
| Ports: | 8 RJ-45 + 2 SFP |
| Isolation: | 1500 Vrms |
| Power input: | +12 VDC ~ +48 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Technische Daten
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| Surge (IEC 61000-4-5) | Yes |
| LED Indicators | |
| Status | POWER, ALARM , TP Port LED |
| Ethernet | |
| Ports | 8 x RJ-45, 10/100/1000Base-TX |
| Standards | Port Mirroring helps supervisor monitoring network IEEE 802.1Q tag-based VLAN for performance IEEE 802.1X Access Control improve network security IEEE 802.1D Compatible, IEEE802.1w Rapid Spanning Tree & IEEE802.1s Multiple Spanning Tree IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3 Unknown Unicast/Broadcast/Multicast storm control IP-MAC-Port binding for LAN security QCL Based on Application traffic for QoS and rate limitation management Supports DHCP snooping ACL Based on Ethernet Type/ARP/IPv4 for packets permit or deny, rate limitation and port copy Supports "power saving" for Green Ethernet requirement Supports LLDP (Link Layer Discovery Protocol) provides a standards-based method for enabling switches to advertise themselves. |
| Processing Type | Store & forward |
| MAC Table | 8 K |
| Protocol | VLAN, QoS, Port Trunk, NTP, TELNET, SNMP, IGMP, IEEE802.1X, LLDP |
| Redundant Strategy | STP, RSTP |
| Isolation | 1500 Vrms 1 minute |
| Fiber | |
| Ports | 2 x 100/1000 Mbps SFP Fiber Module slots |
| COM Ports | |
| Ports | 1 x RS-232 |
| Power | |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 10.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 57 x 164 x 121 (W x L x H) Wall mounting: 57 x 203 x 113 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 5 ~ 95% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
