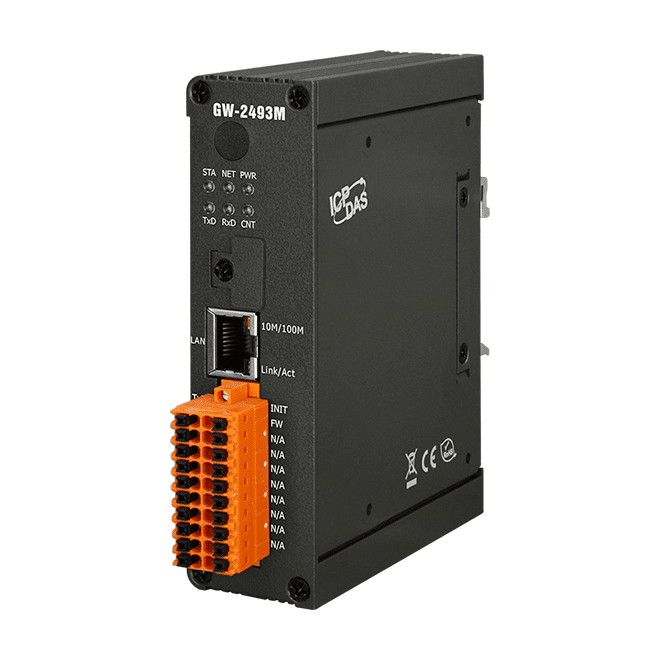

GW-2493M BACnet/IP to Modbus TCP Gateway, Register Mapping to BACnet Objects
DIN-rail BACnet/IP to Modbus TCP gateway that lets BACnet clients read and write Modbus registers through configurable object mapping, with a web browser configuration interface.
- Read and write Modbus registers via BACnet objects
- Configurable BACnet/IP server and Modbus TCP client
- Supports BACnet AI, AO, AV, BI, BO, BV, MSI, MSO and MSV object types
- Handles Modbus discrete inputs, coils, input registers and holding registers
- Up to 180 DI, 180 DO, 180 AI and 180 AO transferred to BACnet objects
- Modbus TCP client supports up to 32 stations
516,00 € pro Stück
| 1–9 Stück | 516,00 € | |
|---|---|---|
| 10–30 Stück | 501,00 € | −3 % |
| ab 31 Stück | 491,00 € | −5 % |
Produktinformationen "GW-2493M BACnet/IP to Modbus TCP Gateway, Register Mapping to BACnet Objects"
GW-2493M is a network gateway that gives BACnet/IP clients access to Modbus devices, acting as a Modbus TCP client on the field side. It suits building automation projects where Modbus equipment must be integrated into a BACnet network.
The gateway provides a large pool of BACnet objects (AI, AO, AV, BI, BO, BV, MSI, MSO and MSV), so Modbus TCP registers can be mapped flexibly onto any combination of them. Data can be manipulated in simple ways as it passes between the two protocols. Several BIBBs are supported, including DS-RP-B, DS-RPM-B, DS-WP-B and DS-WPM-B, and all configuration is carried out through a standard web browser.

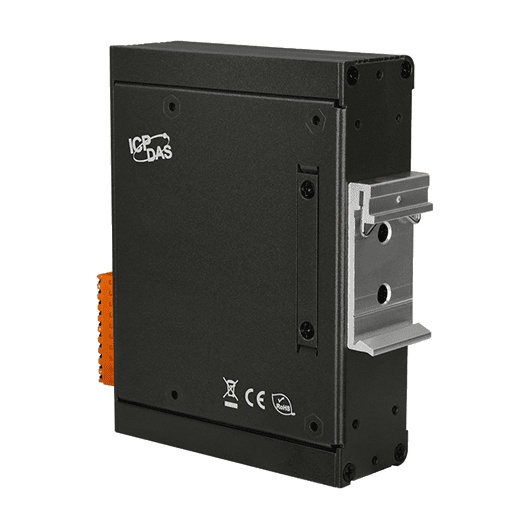

Typical use cases include HVAC control, lighting control, access control and fire detection systems. The metal housing mounts on a DIN rail and accepts a +10 ~ +30 VDC supply.
Applications
- Building automation
- Heating, ventilating and air-conditioning (HVAC) control
- Lighting control
- Access control
- Fire detection systems
| Product type: | Gateway |
|---|---|
| Interface: | Ethernet |
| Protocol: | BACnet/IP, Modbus TCP |
| Ports: | 1 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Technische Daten
| LED Indicators | |
|---|---|

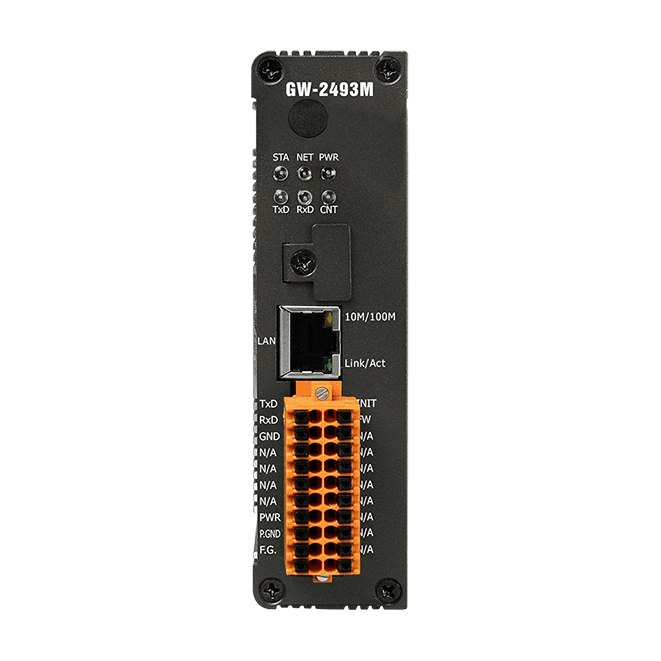

| Status | Power (1), BACnet/IP Status (1), BACnet/IP Net(1), Modbus TCP TxD/RxD/Link (3) Ethernet LED Ethernet Status (RJ-45) (2) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-TX |
| BACnet/IP | |
| Protocol | Modbus TCP Client(Supports up to 32 stations) |
| Objects | AI, AO, AV, BI, BO, BV, MSI, MSO, MSV(Convert modbus 180 DI, 180 DO, 180 AI and 180 AO) |
| BIBBs | DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-RD-B |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Consumption | 5 W @ 24 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 33 x 120 x 116 |

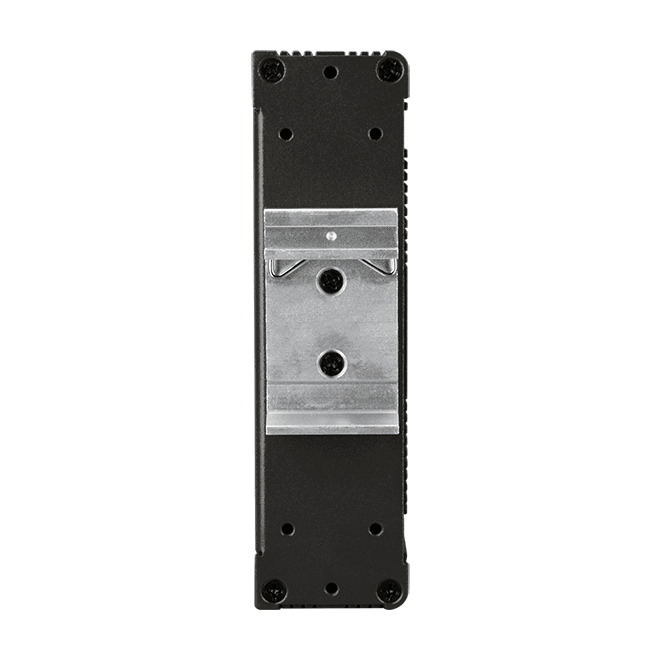

| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
