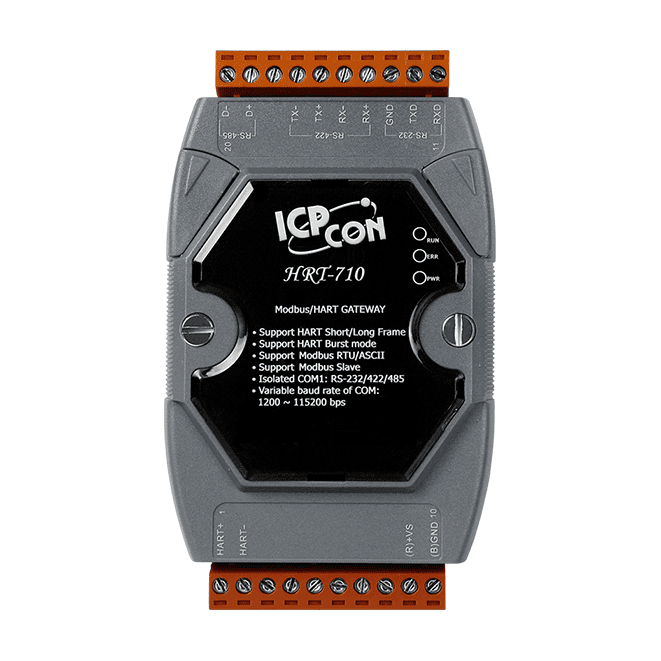

HRT-710 Modbus RTU/ASCII to HART Gateway, Up to 15 HART Devices
Modbus RTU/ASCII to HART gateway that presents HART transmitters and actuators to a Modbus master as slave devices, with Short/Long frame and Burst mode support.
- Modbus slave mode lets a Modbus master access HART device data directly
- Supports HART Short and Long frame formats and Burst mode
- Point-to-point or multi-drop HART operation, up to 15 HART devices
- Allows two HART masters
- Modbus RTU and ASCII over RS-232 (3 wires), RS-422 or RS-485, 1200 to 115200 baud
- Automatic Long Frame address acquisition and on-line replacement of HART devices
366,00 € pro Stück
| 1–9 Stück | 366,00 € | |
|---|---|---|
| 10–30 Stück | 355,00 € | −3 % |
| ab 31 Stück | 348,00 € | −5 % |
Produktinformationen "HRT-710 Modbus RTU/ASCII to HART Gateway, Up to 15 HART Devices"
The HRT-710 CR bridges HART field devices onto a Modbus network. It acts as the HART master and exposes each connected device as a Modbus slave, so an HMI or SCADA system can read HART data using its standard Modbus RTU or ASCII communication.
Up to 15 HART devices can be connected in point-to-point or multi-drop topology, and the unit supports two HART masters. Configuration and HART device diagnosis are handled through the HG_Tool software utility, and firmware can be updated via the COM port. Loop power is not supplied by this model.
- Suited to flow meters, transmitters and actuators in factory and process automation
- Certified CE, UKCA, FCC, RoHS and WEEE
Applications
- Industrial automation
- Factory automation
- Process automation
- Integrating HART flow meters and transmitters into HMI or SCADA systems over Modbus
| Product type: | HART gateway |
|---|---|
| Interface: | RS-232 / RS-422 / RS-485 |
| Protocol: | Modbus RTU / Modbus ASCII |
| Ports: | 1 HART |
| Isolation: | UL1577 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail / wall |
Technische Daten
| COM Ports | |
|---|---|
| Ports | RS-232(3 wires) / RS-422 / RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Protocol | Modbus RTU / Modbus ASCII |
| HART | |
| Ports | 1 |
| Device | 2-wired or 4-wired HART devices |
| Topology | Point to Point or Multi-Drop |
| Data | Only Digital Data |
| Frame Type | Short and Long Frame |
| Burst Mode | Supported |
| Max. HART Device | 15 |
| Loop Resistor | 250 Ω (1/4W) by Jumper |
| Isolation | UL1577 Spec. |
| Protocol | 2-pin screwed terminal block |
| Loop Power | No |
| Power | |
| Reverse Polarity Protection | Power reverse polarity protection, Over-voltage brown-out protection |
| Input Range | Unregulated +10 ~ +30 VDC |
| Consumption | 1 W |
| Mechanical | |
| Dimensions (mm) | 72 x 35 x 121 (W x L x H) Detail |
| Installation | DIN-Rail or Wall Mounting (Horizontal) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
