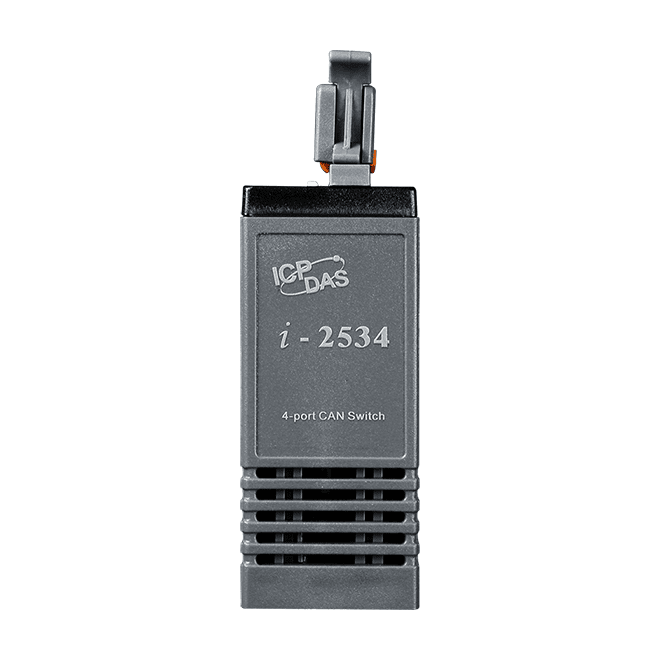

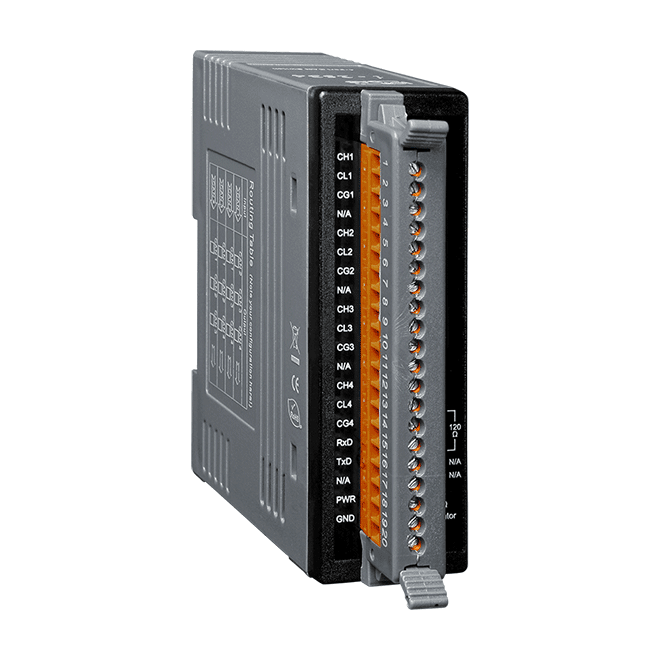

I-2534 4-Port CAN Bus Switch, Plastic Case, DIN-Rail
Four-port CAN bus switch with independent channels, configurable filtering and baud rates from 5 kbps to 1 Mbps, for splitting, extending and bridging CAN networks.
- Four independent CAN communication ports for star or tree topologies
- Compatible with CAN 2.0A and CAN 2.0B, fully compliant with ISO 11898-2

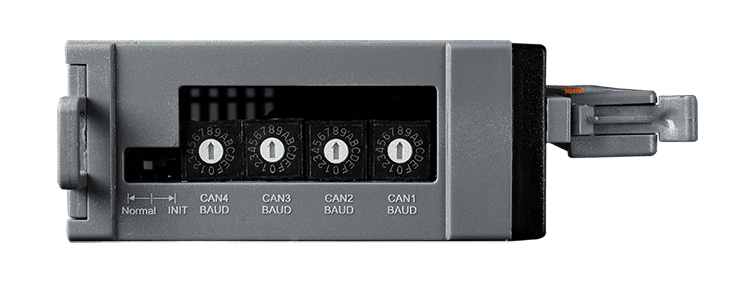

- Baud rate selectable by rotary switch, user-defined baud rate via utility tool
- Configurable CAN bus filter and CAN-ID mapping of up to 32 IDs per channel
- 100-frame data buffer per CAN channel, maximum data flow of 2500 fps across all channels
- Isolation of 3000 VDC (DC-to-DC) and 2500 Vrms (photo-coupler)
291,00 € pro Stück
| 1–9 Stück | 291,00 € | |
|---|---|---|
| 10–30 Stück | 283,00 € | −3 % |
| ab 31 Stück | 277,00 € | −5 % |
Produktinformationen "I-2534 4-Port CAN Bus Switch, Plastic Case, DIN-Rail"
The I-2534 CR is a 4-port CAN bus switch with four independent channels, suited to building star or tree CAN topologies. Each channel handles CAN 2.0A and CAN 2.0B frames and conforms to ISO 11898-2, so it can join existing CAN segments without changing the node hardware.
Engineers typically use it to divide a large network into several subnets, which increases the number of nodes a CAN network can support, or to extend the physical reach of a bus. It can also pass data between segments running at different baud rates. Baud rate is set with a rotary switch, the 120Ω terminating resistor is selected by DIP switch, and CAN filters and CAN-ID mapping can be configured with the supplied utility tool.
The unit has a flame-resistant plastic casing for DIN-rail mounting and accepts a +10 VDC to +30 VDC supply. Its specified operating range is -25 ~ +75 °C. The CR ordering code is listed with RoHS compliance.
Applications
- Industrial machinery
- Building automation
- Vehicle automation
- Splitting CAN networks into subnets to increase node count
- Extending CAN bus distance
- Integrating CAN networks with different baud rates

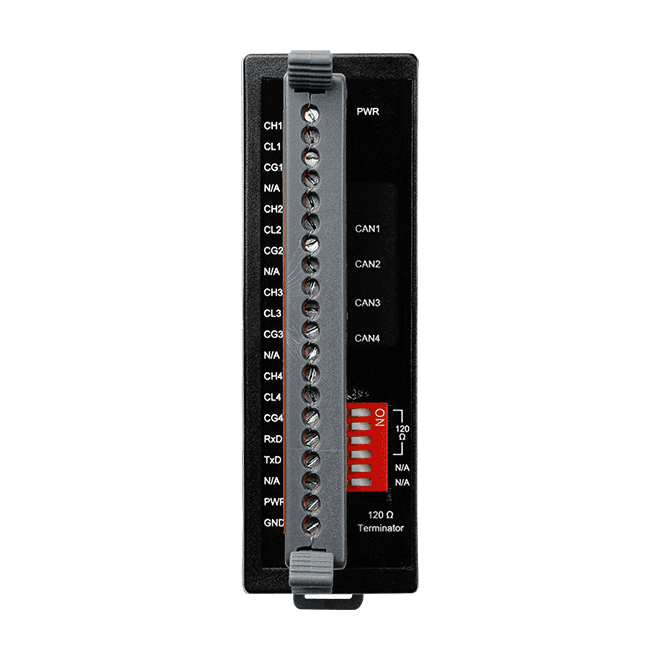

| Product type: | CAN bus switch |
|---|---|
| Interface: | CAN, RS-232 |
| Protocol: | CAN 2.0A, CAN 2.0B |
| Ports: | 4 |
| Isolation: | 3000 VDC / 2500 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| LED Indicators | |
|---|---|
| Status | 1 x Power 4 x CAN status |
| COM Ports | |
| Ports | 1 x RS-232 (3-pin screwed terminal block (TxD, RxD, GND )) |
| Fiber | |
| Propagation Delay | 240 us ~ 1360 us |
| CAN | |
| Controller | High Performance Microcontroller |
| Ports | 4 |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 5 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Selectable 120Ω terminal resistor by DIP switch |
| Filter | Yes |
| Time Delay | [ 1Mbps (8-byte Data) ] ID-11bit => 240 us ; [ 5Kbps (8-byte Data) ] ID-29bit => 1360 us |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 3 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 32.3 x 99 x 77.5 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
