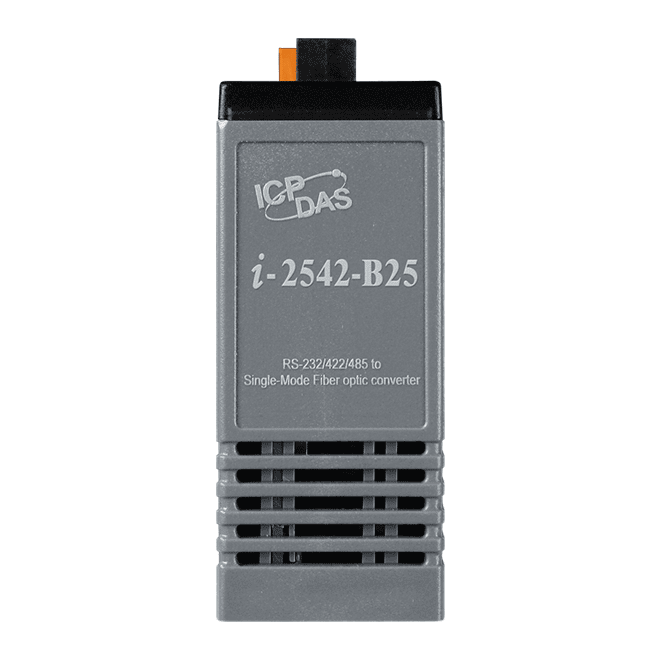

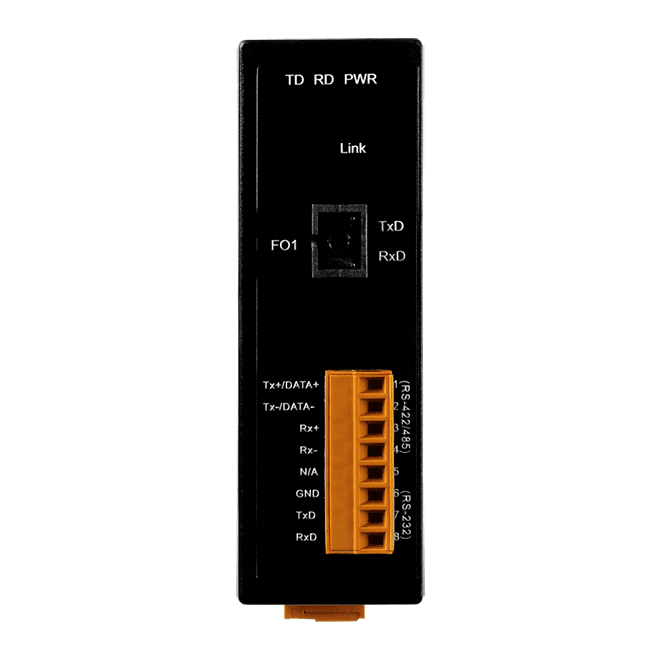

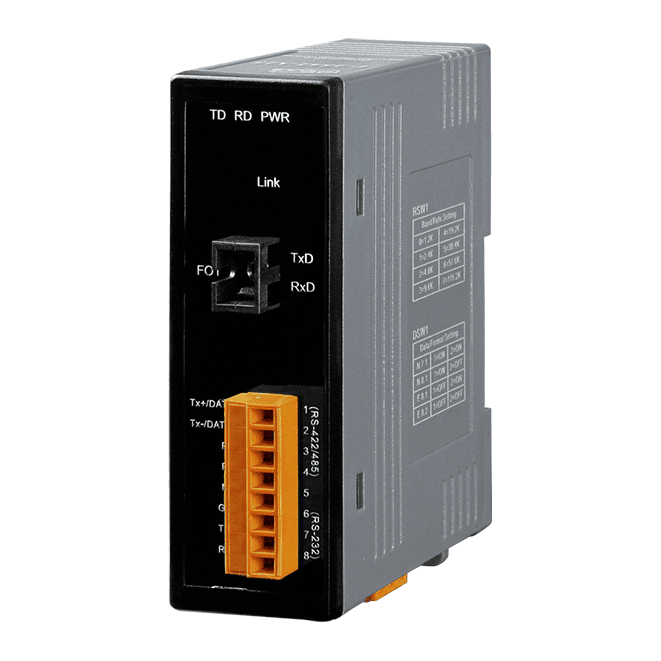

I-2542-B25 RS-232/422/485 to Single-Mode Fiber Converter, 25 km SC
Single-strand WDM fibre converter that carries one RS-232/422/485 serial port over single-mode fibre up to 25 km. TX 1550 nm, RX 1310 nm, SC connector.
- Single-mode SC fibre link up to 25 km, with 9/125 μm recommended
- WDM operation: TX 1550 nm and RX 1310 nm over one fibre, two independent channels
- One RS-232/422/485 serial port at 1200 ~ 115200 bps
- Automatic RS-485 direction control
- ESD protection on the RS-232/422/485 data line
- Protection against lightning strikes and EMI/RFI interference
256,00 € pro Stück
| 1–9 Stück | 256,00 € | |
|---|---|---|
| 10–30 Stück | 248,00 € | −3 % |
| ab 31 Stück | 243,00 € | −5 % |
Produktinformationen "I-2542-B25 RS-232/422/485 to Single-Mode Fiber Converter, 25 km SC"
I-2542-B25 converts an RS-232, RS-422 or RS-485 serial link into a single-mode fibre optic link, extending serial communication over 25 km. Wavelength division multiplexing lets two independent data channels share one fibre, which is useful where spare fibre is limited or new cabling is costly.
This B-variant transmits at 1550 nm and receives at 1310 nm, so it is supplied as one half of a matched pair with the I-2542-A25. The unit includes automatic RS-485 direction control, so no separate direction signal is needed from the host. Its serial data line has ESD protection, and it is designed to resist lightning strikes and EMI/RFI interference.

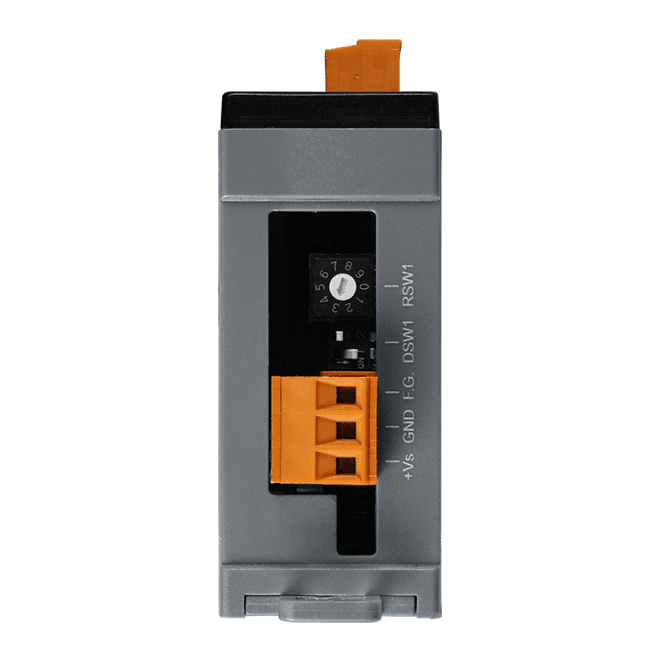

The converter runs from a +10 VDC to +30 VDC supply, draws 2 W and mounts on a DIN rail. It is rated for -25 ~ +75 °C operation, which suits cabinets and field installations. Fibre cable of 8.3/125, 8.7/125, 9/125 or 10/125 μm is supported, with 9/125 μm recommended for the 25 km distance.
Applications
- Extending serial RS-232, RS-422 or RS-485 links over long single-mode fibre runs
- Reusing existing single-mode fibre infrastructure through wavelength division multiplexing
- Serial communication in electrically noisy or lightning-exposed installations
| Product type: | Fiber optic converter |
|---|---|
| Interface: | RS-232/422/485 |
| Ports: | 1 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 x Power and Communication |
| COM Ports | |
| Ports | 1 x RS-232/422/485 |
| Baud Rate | 1200 ~ 115200 bps |
| Fiber | |
| Ports | Single-Mode; SC connector x 1 |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Wavelength | TX: 1550, RX: 1310 nm |
| Transmission Distance | 25 km (9/125 μm recommended) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
| Consumption | 2 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 89 x 107 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
