I-7547 Ethernet to HART Converter, 4-Channel HART Master/Slave Gateway
Four-channel Ethernet to HART converter that works as a HART master or slave, with VxComm virtual COM support, a built-in web server and 500 VDC isolation.
- Four HART channels with selectable 250 Ω terminal resistor per port
- Supports HART short and long frames, burst mode, point-to-point and multi-drop operation
- Up to 15 HART slave devices and two HART masters
- VxComm support for virtual COM access to HART devices over Ethernet
- HC_Tool utility for configuration and HART communication testing
- HDS compatibility for HART slave simulation
400,00 € pro Stück
| 1–9 Stück | 400,00 € | |
|---|---|---|
| 10–30 Stück | 388,00 € | −3 % |
| ab 31 Stück | 380,00 € | −5 % |
Produktinformationen "I-7547 Ethernet to HART Converter, 4-Channel HART Master/Slave Gateway"

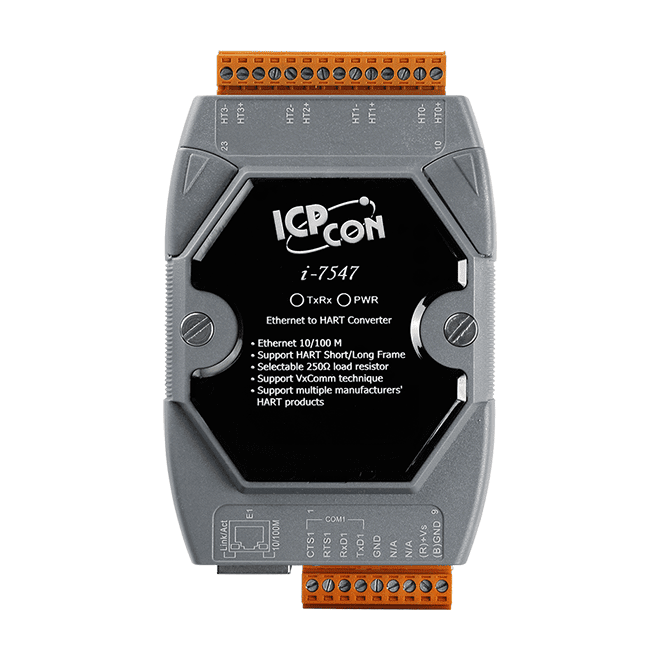

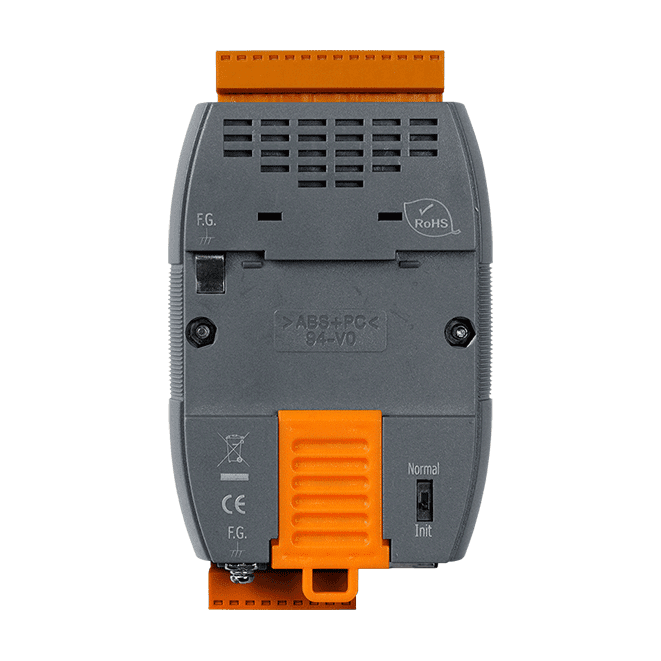

I-7547 CR bridges Ethernet and four HART channels, letting engineers reach HART field devices from a PC or control application over the network. Used with the VxComm utility, the HART network appears as virtual COM ports, so existing serial software can collect and process HART data without rework. The grey-cover CR variant is the RoHS-compliant ordering option of the I-7547.
The converter supports HART short and long frames, burst mode, and point-to-point or multi-drop topologies with up to 15 HART slave devices. Two HART masters can be allowed at the same time, and each HART port has a selectable 250 Ω terminal resistor. The free HC_Tool utility handles module configuration and HART communication tests, while firmware can be updated over Ethernet.
The unit can also act as a HART slave when paired with the HDS (HART Device Simulator) software, which simulates several HART field devices so master programs can be developed and verified without physical instruments. Typical uses include current measurement, environmental and building monitoring, tunnel monitoring, and petrochemical plant applications, including FDT-based configuration systems.
Applications
- Current measuring
- Petrochemical industry
- Environment monitoring
- Tunnel monitoring
- Building monitoring
- Monitor systems
- FDT (Field Device Tool) based HART configuration and control
| Product type: | Ethernet to HART converter |
|---|---|
| Interface: | Ethernet |
| Protocol: | HART |
| Ports: | 4 |
| Isolation: | 500 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail or wall |
Technische Daten
| LED Indicators | |
|---|---|
| Status | PWR : Power Indicator TxRx : Data Received from Ethernet / HART Indicator |
| Ethernet | |
| Ports | 10/100 Base-TX with Auto MDI/MDI-X |
| Built-In Web Server | Yes |
| Virtual COM | Yes (VxComm Utility) |
| HART | |
| Ports | 4 |
| Terminal Resistor | Selectable 250 Ω terminal resistor for each HART port |
| Isolation | 500 VDC |
| Power | |
| Reverse Polarity Protection | Power reverse polarity protection, Over-voltage brown-out protection |
| Input Range | Unregulated +10 ~ +30 VDC |
| Consumption | Maximum : 1.5W |
| Mechanical | |
| Dimensions (mm) | 123 x 72 x 35 (H x W x D) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C (-13 to 167 ℉) |
| Storage Temperature | -30 ~ +80 °C (-22 to 176 ℉) |
| Humidity | 5% ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
