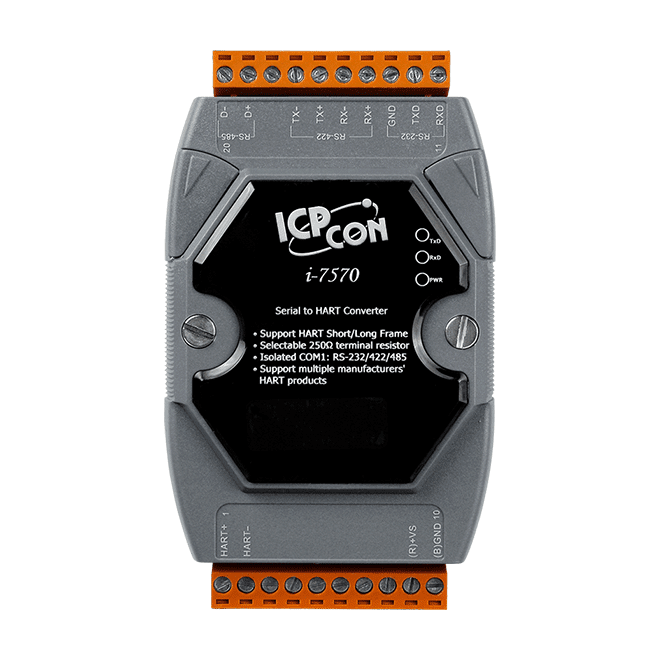

I-7570 Serial to HART Converter, RS-232/422/485 to HART
The I-7570 CR converts RS-232, RS-422 or RS-485 serial links to HART, working as a HART master or as a HART slave for up to 15 field devices.
- Serial to HART conversion with HART short and long frame support
- Point-to-point or multi-drop HART operation for up to 15 slave devices
- Burst mode support and two HART masters allowed
- Utility tool for module configuration and HART communication testing
- HART master (HC_Tool) or HART slave simulation (HDS) operation
- 4 kV ESD protection and built-in watchdog
399,00 € pro Stück
| 1–9 Stück | 399,00 € | |
|---|---|---|
| 10–30 Stück | 387,00 € | −3 % |
| ab 31 Stück | 379,00 € | −5 % |
Produktinformationen "I-7570 Serial to HART Converter, RS-232/422/485 to HART"
The I-7570 CR bridges a serial host and HART field devices. Connect a PC or controller over RS-232, RS-422 or RS-485 and access HART transmitters, actuators and current output devices without writing HART framing yourself. Used with the HC_Tool utility, it operates as a HART master; with the HDS utility, it can emulate HART slave devices.
Point-to-point or multi-drop HART operation is supported, with up to 15 HART slave devices. Two HART masters are allowed, and both HART short and long frames and Burst mode are supported. The bundled utility tool helps you configure the module and test HART communication quickly.
The gray-cover version is powered from an unregulated +10 ~ +30 VDC supply and includes 4 kV ESD protection and a built-in watchdog. It mounts on DIN-rail or wall and is suited to monitoring and instrumentation installations, including FDT-based configuration systems.
Applications
- Current measuring
- Petrochemical industry
- Environment monitoring
- Tunnel monitoring
- Building monitoring
- Monitor systems
- FDT (Field Device Tool) based HART configuration and control
| Product type: | Serial to HART converter |
|---|---|
| Interface: | RS-232 / RS-422 / RS-485 |
| Protocol: | HART |
| Ports: | 1 serial, 1 HART |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail / wall |
| Housing: | Gray cover |
Technische Daten
| LED Indicators | |
|---|---|
| Status | PWR / TxD / RxD |
| COM Ports | |
| Ports | RS-232(Tx / Rx / GND) / RS-422 / RS-485 9-pin screwed terminal block |
| Baud Rate | 1200 bps (For FW_v1.1) 1200 ~ 115200bps (For FW_v1.1 / HW_v1.2) |
| Data Format | O(odd parity), 8(data bit), 1(stop bit) (For FW_v1.1) N/O/E(parity), 8(data bit), 1/2(stop bit) (For FW_v1.1 / HW_v1.2) |
| HART | |
| Ports | 1 |
| Protocol | 2-pin screwed terminal block |
| Power | |
| Reverse Polarity Protection | Power reverse polarity protection, Over-voltage brown-out protection |
| Input Range | Unregulated +10 ~ +30 VDC |
| Consumption | 1 W |
| Mechanical | |
| Dimensions (mm) | 121 x 72 x 35 (H x W x D) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C (-13 to 167 ℉) |
| Storage Temperature | -30 ~ +85 °C (-22 to 185 ℉) |
| Humidity | 5% ~ 95%, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
