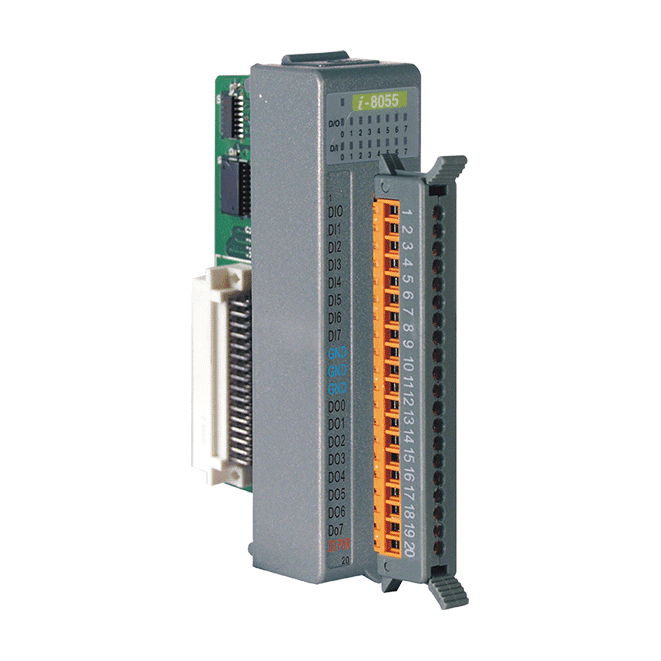

I-8055-G 8-ch DI/8-ch DO Digital I/O Module, Dry Contact Input and Sink Output
8-channel non-isolated dry contact digital input and 8-channel sink-type (NPN) open-collector digital output module with 16 status LEDs and 4 kV ESD protection.
- 8 non-isolated digital input channels with dry contact wiring (ON when connected to GND, OFF when open)
- 8 non-isolated open-collector digital output channels, sink-type (NPN), 100 mA per channel
- Load voltage range of +5 VDC to +30 VDC on the outputs
- 16 LED indicators for I/O status plus power and communication status
- 4 kV ESD protection (IEC 61000-4-2 ± 4 kV contact) on each terminal
- Operating temperature range of -25 ~ +75 °C, storage -40 ~ +85 °C
82,00 € pro Stück
| 1–9 Stück | 82,00 € | |
|---|---|---|
| 10–30 Stück | 79,00 € | −4 % |
| ab 31 Stück | 78,00 € | −5 % |
Produktinformationen "I-8055-G 8-ch DI/8-ch DO Digital I/O Module, Dry Contact Input and Sink Output"
The I-8055-G is a digital I/O module from the I-8K/I-87K low-profile series, combining eight dry contact inputs with eight sink-type outputs on a single unit. It suits engineers who need straightforward switching and sensing signals in automation panels without galvanic isolation between channels.
Each input channel is activated by connecting it to GND and reads as open when released, so standard switches, relay contacts and push-buttons can be wired directly. The outputs are open-collector, sink-type (NPN) channels rated from +5 VDC to +30 VDC at 100 mA per channel, and 16 LED indicators show the state of the I/O channels together with power and communication status.
The module is suited to building, factory and machine automation as well as remote maintenance, remote diagnosis and test equipment. The grey cover identifies the -G variant, and 4 kV ESD protection is provided on every input and output channel.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Digital I/O Module |
|---|---|
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Isolation: | Non-isolated |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Digital Input | |
| Channels | 8, Non-isolated Digital logic |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Connect to GND |
| OFF Voltage Level | Open |
| Digital Output | |
| Channels | 8, Non-isolated |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 VDC ~ +30 VDC |
| Load Current | 100 mA/Channel |
| Power | |
| Consumption | 1 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
