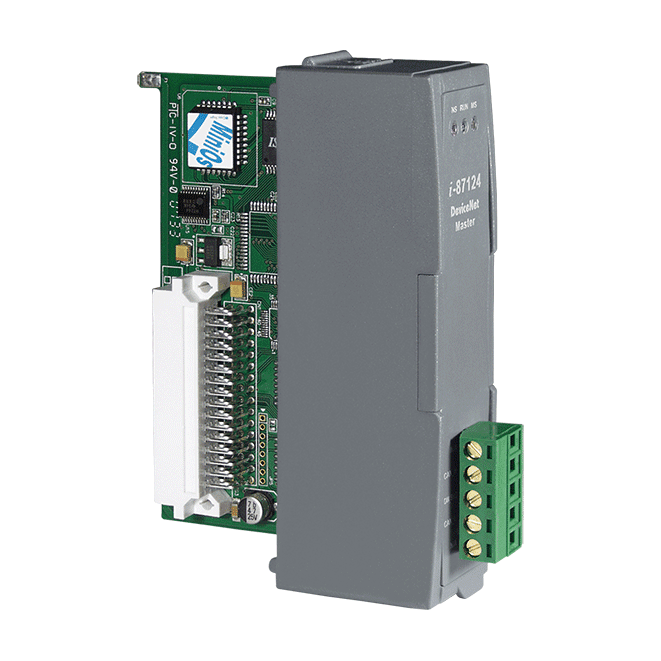

I-87124-G 1-Port DeviceNet Master Module, CAN Bus for WinPAC/ViewPAC
DeviceNet master module that adds one isolated DeviceNet port to WinPAC or ViewPAC controllers, managing up to 63 slave nodes at 125 k, 250 k or 500 k baud.
- DeviceNet master on a single isolated CAN port with 5-pin screw terminal connector
- Supports up to 63 slave nodes, with up to 512 input bytes and 512 output bytes per slave
- Poll, Bit-Strobe and Change Of State/Cyclic I/O operation modes
- Group 2 and UCMM functions with auto-detection of compatible devices and auto-scan of slaves
- Online addition and removal of devices, plus automatic reconnection after a broken connection
- Baud rates of 125 k, 250 k and 500 k with a switchable 120 Ω terminal resistor
244,00 € pro Stück
| 1–9 Stück | 244,00 € | |
|---|---|---|
| 10–30 Stück | 236,00 € | −3 % |
| ab 31 Stück | 231,00 € | −5 % |
Produktinformationen "I-87124-G 1-Port DeviceNet Master Module, CAN Bus for WinPAC/ViewPAC"
The I-87124-G gives WinPAC and ViewPAC controllers a DeviceNet master port, so a PAC can poll and manage slave devices on a DeviceNet network without a separate fieldbus gateway. The module sits on the CAN bus side as a standalone CAN controller and handles the master role, with support for up to 63 slave nodes.
Engineers choosing this module will find a full set of I/O operation modes and network management features. Poll, Bit-Strobe and Change Of State/Cyclic modes are supported, together with Group 2 and UCMM functions, automatic detection of Group 2 and UCMM devices, and automatic scanning of slave devices. Devices can be added to or removed from a running network, and the connection re-establishes automatically if it is broken.
For electrical design, the port is isolated, with 3000 VDC for DC-to-DC and 2500 Vrms for photo-coupling, and includes a switchable 120 Ω terminal resistor. Software support covers Windows CE with SDKs for VB.Net 2005, C#.Net 2005 and eVC++ 4.0. The module is rated for an operating temperature of -25 ~ +75 ℃.
Applications
- Industrial automation
- Industrial machinery
- Building automation
- Food and beverage
- Semiconductor fabrication
- Vehicle, marine and embedded control networks
- Control systems
| Product type: | DeviceNet master module |
|---|---|
| Interface: | 5-pin screw terminal, CAN bus |
| Protocol: | DeviceNet |
| Ports: | 1 |
| Isolation: | 3000 VDC / 2500 Vrms |
| Operating temperature: | -25 ~ +75 ℃ |
Technische Daten
| Software | |
|---|---|
| Driver | Windows CE |
| SDK | VB.Net 2005, C#.Net 2005, eVC++ 4.0 |
| CPU Module | |
| CPU | x86 |
| Watchdog Timer | CPU built-in |
| LED Indicators | |
| Status | NS LED, RUN LED, MS LED |
| DeviceNet | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Baud Rate | 125 k, 250 k, 500 k |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Switch for 120 Ω terminal resistor |
| Protocol | DeviceNet Volumn I ver2.0, Volumn II ver2.0 |
| CAN Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Power | |
| Consumption | 2 W |
| Mechanical | |
| Dimensions (mm) | 31 x 115 x 91 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
