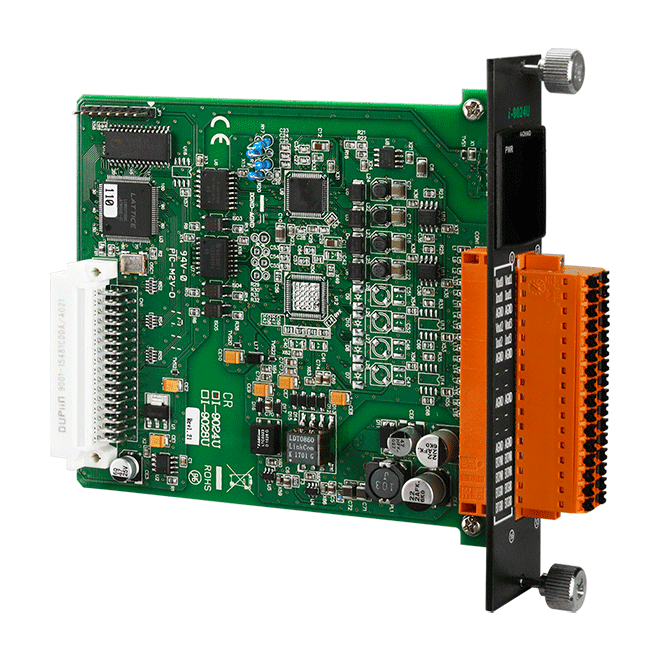

I-9024U 4-ch Isolated Analog Output Module, Voltage and Current
Four-channel isolated analog output module from the I-9K/I-97K series, with each channel independently set to 0 ~ +5 V, ±5 V, 0 ~ +10 V, ±10 V, +4 ~ +20 mA or 0 ~ +20 mA.
- Four single-ended analog output channels, each individually configurable
- Output ranges: 0 ~ +5 V, ±5 V, 0 ~ +10 V, ±10 V, +4 ~ +20 mA and 0 ~ +20 mA
- 16-bit resolution with accuracy of ±0.02% of FSR
- Short circuit protection on outputs
- Configurable power-on value and safe value for each channel
- Open wire detection for +4 ~ +20 mA output
278,00 € pro Stück
| 1–9 Stück | 278,00 € | |
|---|---|---|
| 10–30 Stück | 269,00 € | −3 % |
| ab 31 Stück | 264,00 € | −5 % |
Produktinformationen "I-9024U 4-ch Isolated Analog Output Module, Voltage and Current"
The I-9024U provides four single-ended analog outputs for engineers who need voltage or current control signals from a PAC I/O system. Each channel can be configured on its own, so a single module can drive a mix of 0 ~ +10 V, ±10 V and current-loop devices without a separate module for each signal type.
Output protection and fail-safe behaviour are built in. Short circuit protection is fitted to the outputs, and both a power-on value and a safe value can be set per channel so outputs settle to a defined state at start-up or when communication is lost. Open wire detection is available for the +4 ~ +20 mA range.
The module is rated for 3000 VDC intramodule isolation and ±4 kV contact ESD protection on each terminal. It is powered from a 15 ~ 30 VDC terminal block with reverse polarity protection, and draws 2 W maximum. Its operating range is -25 ~ +75 °C, and the housing measures 31 x 134 x 144 mm (W x L x H).
| Product type: | Analog output module |
|---|---|
| Analog outputs: | 4 |
| Isolation: | 3000 VDC |
| Power input: | 15 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Output | |
| Channels | 4 |
| Range | Voltage: 0 ~ +5 VDC、±5 VDC、0 ~ +10 VDC、±10 VDC Current: 0 ~ +20 mA、+4 ~ +20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.02% of FSR |
| Zero Drift | ±0.2 μV/°C |
| Span Drift | ±25 ppm/°C |
| Short Circuit Protection | Yes |
| Response Time | 105 us per channel |
| Programmable Output Slope | Voltage: 0.5 V/us Current: 0.024 mA/us |
| Current Output Wiring | Source |
| Power-on Value | Yes |
| Safe Value | Yes |
| Power | |
| Reverse Polarity Protection | Yes |
| Isolation | 3000 VDC |
| Consumption | 2 W Max. |
| Powered from Terminal Block | Yes, 15 ~ 30 VDC |
| Mechanical | |
| Dimensions (mm) | 31 x 134 x 144 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
