IR-210-5 Universal IR Learning Module, 6 IR Outputs, RS-232/RS-485
Universal IR learning module with six IR outputs, controlled over RS-232 or RS-485 via Modbus RTU or DCON. Includes two CA-IR-SH2251-5 emitter cables.
- Six IR output channels for individual or simultaneous control of multiple devices
- One IR learning input supporting 33, 36, 37, 38, 40 and 56 kHz carrier frequencies
- Capacity for 224 IR commands stored in the module or saved to a file
- RS-232 and RS-485 serial interfaces with Modbus RTU (function codes 0x06 and 0x10) and DCON ASCII strings
- Baud rates from 9600 to 115200 bps
- Supplied with two CA-IR-SH2251-5 emitter cables; the -5 cable offers 125% of the remote control range of the CA-IR-SH2251
210,00 € pro Stück
| 1–9 Stück | 210,00 € | |
|---|---|---|
| 10–30 Stück | 203,00 € | −3 % |
| ab 31 Stück | 199,00 € | −5 % |
Produktinformationen "IR-210-5 Universal IR Learning Module, 6 IR Outputs, RS-232/RS-485"

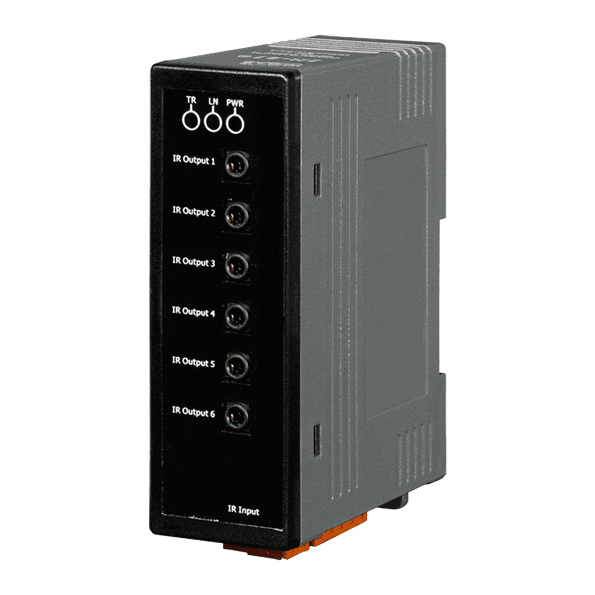

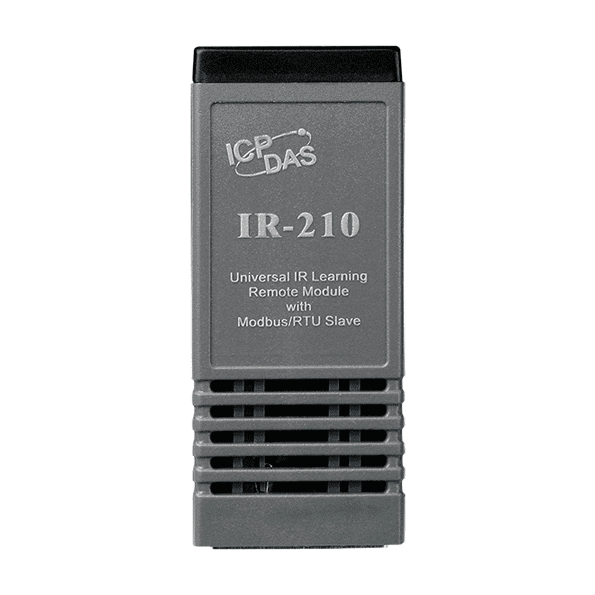

IR-210-5 CR is a universal infrared learning module that captures IR remote commands from a wide range of consumer and AV equipment, stores them in the module, and replays them on demand. Its six independent IR outputs allow one device to control several targets at once or each output to drive a different device.
The module is designed for integration into automated systems. It accepts Modbus RTU commands and DCON ASCII strings over RS-232 or RS-485, so a PLC, PAC or PC can trigger IR commands directly. A PC API library is available for custom software, and the supplied utility handles learning, testing and storage of commands.
- Suited to smart home and building automation projects where legacy IR remotes need to be replaced by controller logic.
- Delivered with two CA-IR-SH2251-5 emitter cables for connecting to target equipment.
Applications
- Home entertainment control
- Video conferencing systems
- Surveillance systems
- e-classroom services
- Lighting scene control
- Home and building automation
- IR remote control from ICP DAS PAC systems
| Product type: | IR learning module |
|---|---|
| Interface: | RS-232, RS-485 |
| Protocol: | DCON, Modbus RTU |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| LED Indicators | |
|---|---|

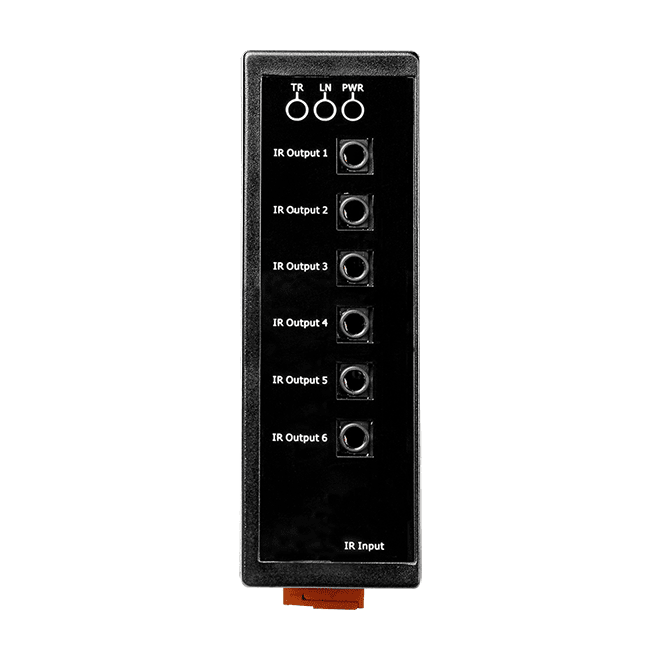

| Status | 1 x TR (IR Transmitting) 1 x LN (IR Learning) 1 x PWR (Power) |
| Infrared | |
| IR Learning Input | 1 channel. Supports 6 IR carrier frequencies: 33, 36, 37, 38, 40, 56 kHz. |
| IR Output Channels | 6 channels with 3.5 mm audio jack |
| IR Remote Commands | Capacity: 224 |
| COM Ports | |

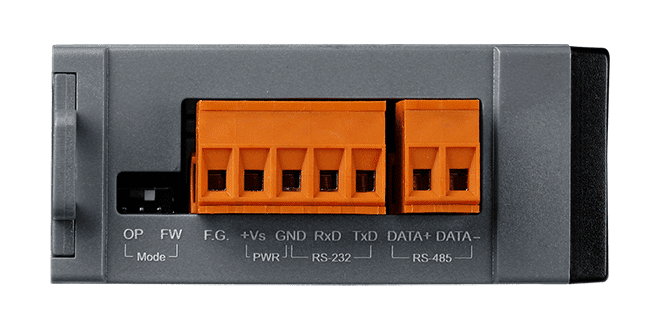

| Ports | RS-232 (TxD, RxD, GND) RS-485 (DATA+, DATA-) |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 |
| Protocol | Modbus RTU Slave |
| Power | |
| Consumption | Stand By:0.65 W Using 1 IR Output:2.5 W Using 6 IR Outputs:12 W (Max.) |
| Mechanical | |
| Dimensions (mm) | 33 x 78 x 107 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
