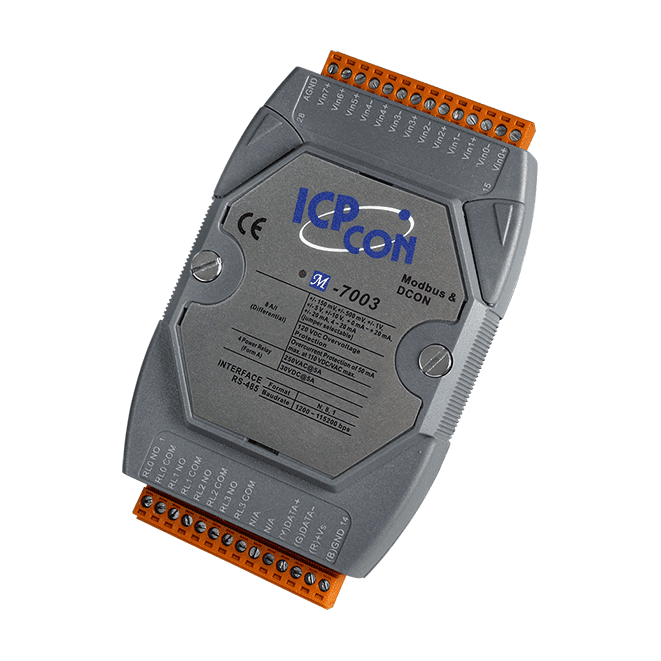

M-7003-G 8-ch Analog Input and 4-ch Relay Output Module, Modbus RTU/DCON
16-bit RS-485 remote I/O module with eight analog inputs (voltage or current, jumper selectable) and four Form A power relay outputs, supporting DCON and Modbus RTU.
- Eight 16-bit analog inputs with individually configurable voltage and current ranges
- Jumper-selectable voltage or current input, with ranges from ±150 mV to ±20 mA and 4 ~ 20 mA
- Four Form A power relays rated 5 A @ 250 VAC or 5 A @ 30 VDC
- Normal mode (10 Hz) and fast mode (60 Hz) sampling
- 120 VDC overvoltage protection on analog channels and 2500 VDC intra-module isolation
- Programmable power-on and safe values for relay outputs
286,00 € pro Stück
| 1–9 Stück | 286,00 € | |
|---|---|---|
| 10–30 Stück | 278,00 € | −3 % |
| ab 31 Stück | 272,00 € | −5 % |
Produktinformationen "M-7003-G 8-ch Analog Input and 4-ch Relay Output Module, Modbus RTU/DCON"
The M-7003-G is an RS-485 remote I/O module that combines eight 16-bit analog inputs with four Form A relay outputs in a single DIN-rail unit. Each analog channel can be given its own input range, which suits mixed sensor installations where signal types differ between channels. Voltage or current input is selected by jumper, and the sampling rate can be switched between normal and fast mode depending on the response needed.
The module is built for electrically demanding environments. Analog channels tolerate up to 120 VDC overvoltage, and the design includes 2500 VDC intra-module isolation and a 4 kV ESD rating on each terminal. A built-in dual watchdog supports unattended operation, while the relay power-on and safe values can be programmed so outputs take a defined state after start-up or a communication fault.
The M-7003-G is grey-cover variant of the M-7003 for engineers who need DCON or Modbus RTU access over a shared RS-485 bus. Typical uses include building and factory automation, machine control, and remote maintenance and diagnosis.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Remote I/O module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus RTU |
| Relay outputs: | 4 |
| Analog inputs: | 8 |
| Ports: | 1 |
| Isolation: | 2500 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Gray |
Technische Daten
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ±3 kV for Power Line |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 8 (5 Differential and 3 Single-ended) |
| Type | Voltage Current |
| Range | Voltage: ±150 mV, ±500 mV, ±1 V , ±5 V, ±10 V Current: ±20 mA , 0 ~ 20 mA, 4 ~ 20 mA (Jumper selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: 0.1% of FSR Fast Mode: 0.5% of FSR |
| Sampling Rate | Normal Mode: 10 Hz Fast Mode: 60 Hz |
| Input Impedance | Voltage: 20 MΩ (Differential), 10 MΩ (Single-ended) Current: 139Ω |
| Common Voltage Protection | ±15 VDC |
| Overvoltage Protection | 120 VDC |
| Individual Channel Configuration | Yes |
| Relay Output | |
| Channels | 4 |
| Type | Power Relay (Form A) |
| Contact Rating | 5 A @ 250 VAC 5 A @ 30 VDC |
| Operate Time | 3 ms |
| Release Time | 2 ms |
| Electrical Endurance | 10^5 ops. |
| Mechanical Endurance | 2 x 10^7 ops. |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.8 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
