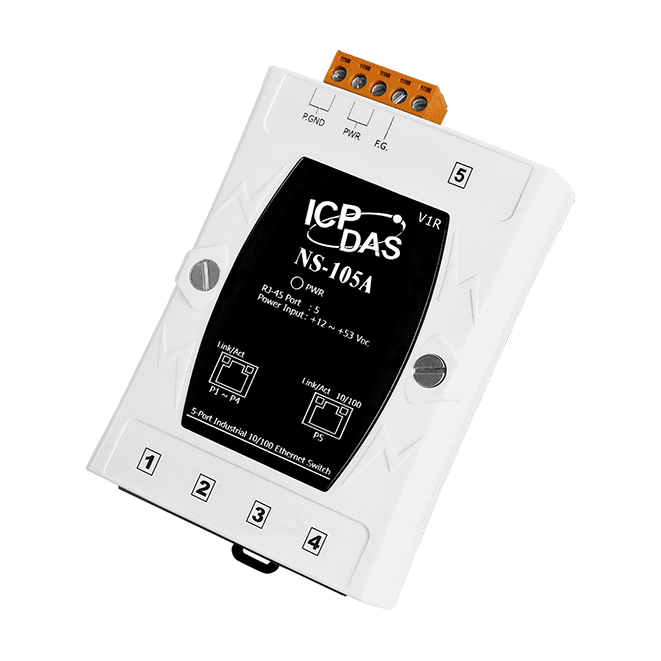

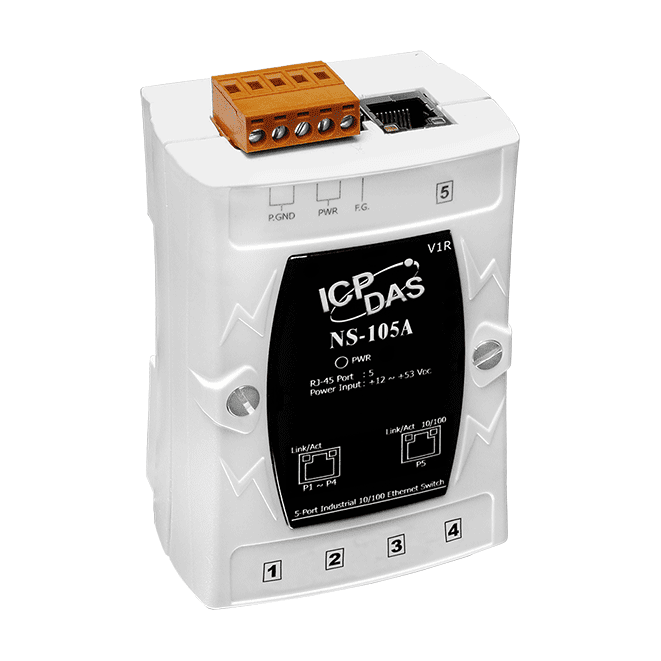

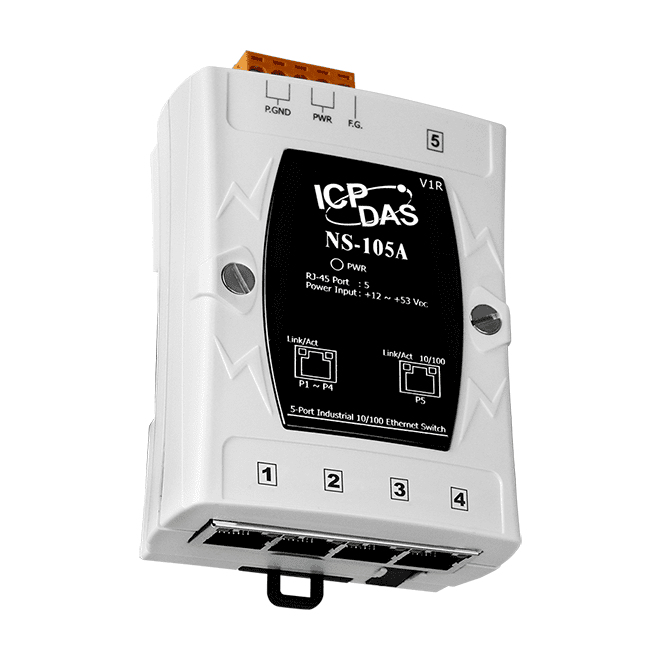

NS-105A Unmanaged 5-Port Industrial Ethernet Switch, +12 to +53 VDC Input
The NS-105A CR is an unmanaged 5-port industrial Ethernet switch with 10/100Base-TX RJ-45 ports, auto MDI/MDI-X and a +12 VDC to +53 VDC power input for DIN-rail installation.
- Five 10/100Base-TX RJ-45 ports with automatic speed negotiation and auto MDI/MDI-X
- Store-and-forward architecture with wire speed switching
- IEEE 802.3x full duplex and back pressure flow control
- Wide +12 VDC to +53 VDC power input with reverse polarity protection
- Soft start, overload protection and high-low voltage protection
- Operating temperature range of -40 °C to +75 °C
112,00 € pro Stück
| 1–9 Stück | 112,00 € | |
|---|---|---|
| 10–30 Stück | 109,00 € | −3 % |
| ab 31 Stück | 107,00 € | −4 % |
Produktinformationen "NS-105A Unmanaged 5-Port Industrial Ethernet Switch, +12 to +53 VDC Input"
The NS-105A CR is an unmanaged 5-port Industrial Ethernet switch for connecting up to five workstations or devices over 10/100Base-TX. Each port auto-negotiates its speed between 10 Mbps and 100 Mbps and its flow control mode, and auto MDI/MDI-X lets you use either straight or crossover cables without configuration.

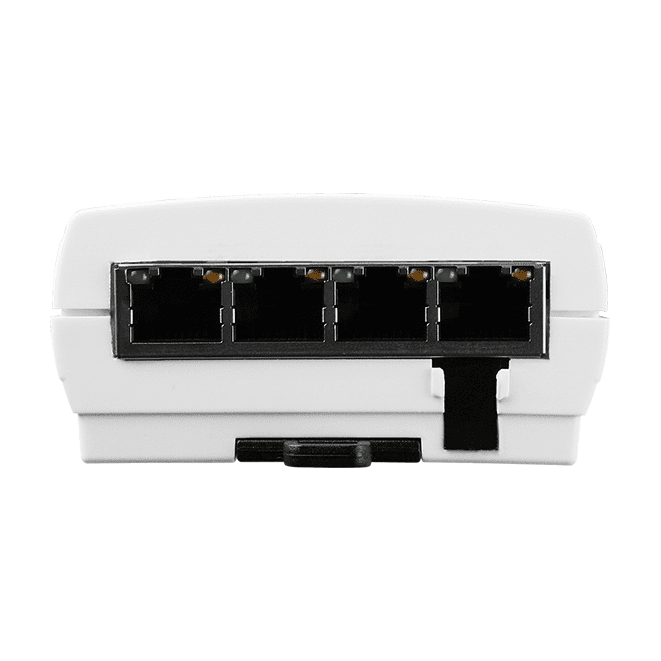

Store-and-forward switching with IEEE 802.3x and back pressure flow control suits engineers who need a simple, compact switch on a DIN rail. Each port has activity, link and data rate LEDs to help with fault finding, and the shielded RJ-45 connectors are provided for each port.

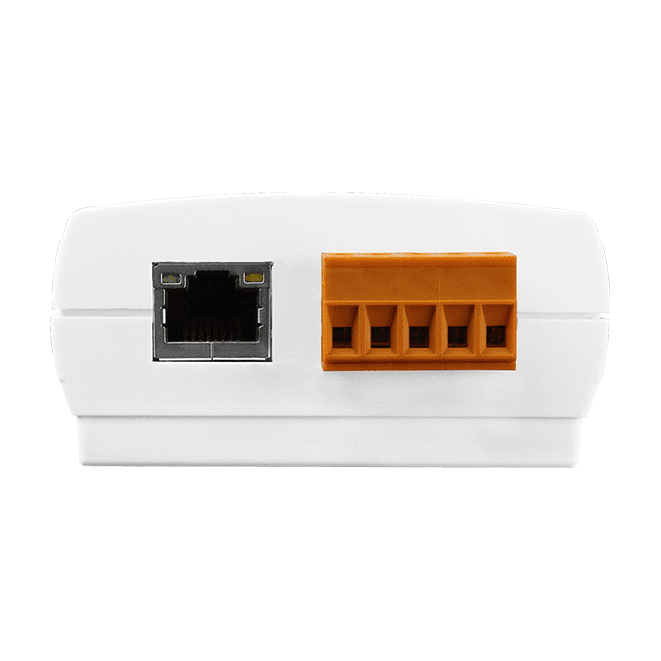

The switch accepts a wide +12 VDC to +53 VDC input and includes reverse polarity protection, a soft start function, overload protection and high-low voltage protection. It is rated for operating temperatures from -40 °C to +75 °C and is supplied in a slim plastic housing measuring 76 x 118 x 38 mm.
Applications
- Connecting up to five workstations or devices in industrial Ethernet networks
- Compact DIN-rail installations where a wide DC supply voltage range is needed
| Product type: | Unmanaged Ethernet switch |
|---|---|
| Interface: | RJ-45 |
| Protocol: | IEEE 802.3 |
| Ports: | 5 |
| Isolation: | 1500 Vrms 1 min |
| Power input: | +12 ~ +53 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| LED Indicators | |
|---|---|
| Status | Power, Link/Act, 10/100M |
| Ethernet | |
| Ports | 5 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 2048 |
| Frame Buffer Memory | 768 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +53 VDC (Non-isolated) |
| Consumption | 0.1 A @ 24 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 76 x 118 x 38 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
