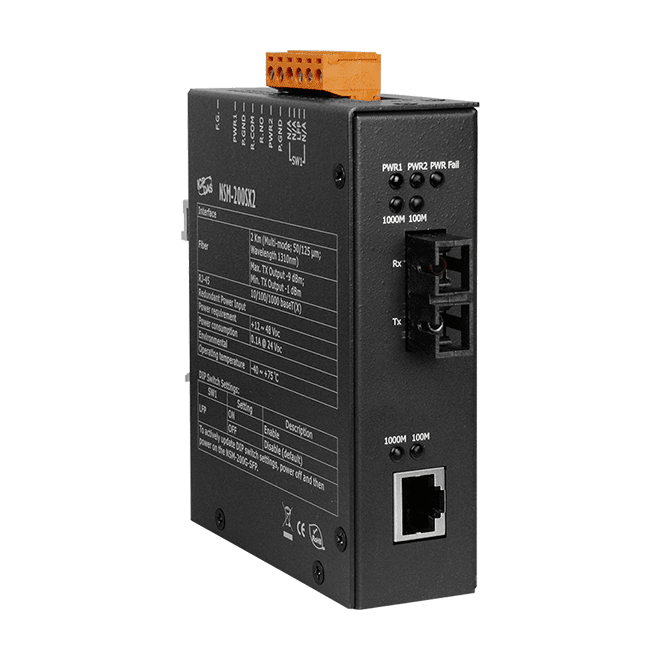

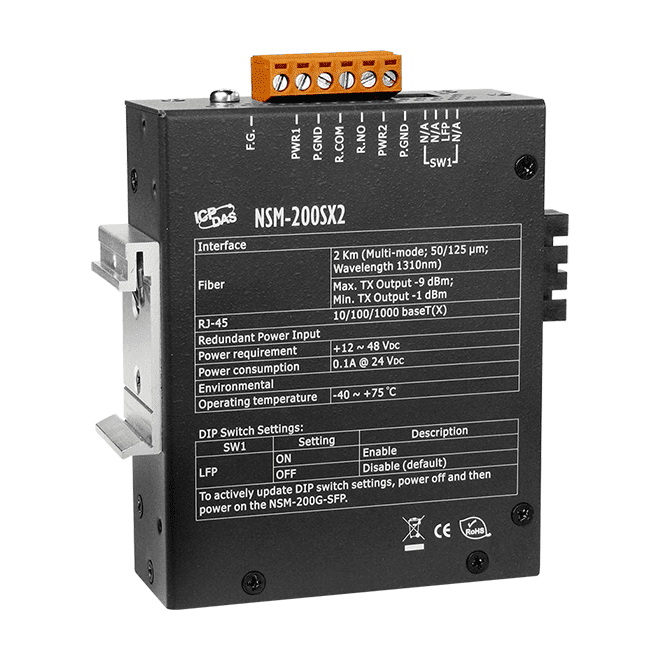

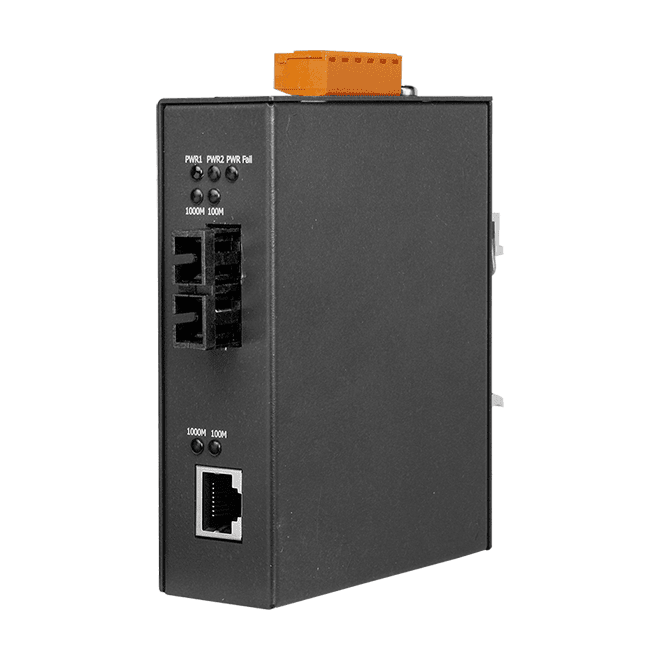

NSM-200SX2 Gigabit Media Converter, 1000Base-T to 1000Base-SX Multi-mode SC
Industrial 1000Base-T to 1000Base-SX media converter with one multi-mode SC fibre port at 1310 nm for 2 km links, rated for -30 °C ~ +75 °C operation.
- 1 x 1000Base-FX multi-mode port with SC connector, 50/125 μm fibre, 1310 nm, 2 km
- 1 x RJ-45 10/100/1000Base-T(X) copper port with IEEE 802.3ab support
- Link Fault Pass-through (LFP), enabled via DIP switch
- Store-and-forward processing with 512 Kbit frame buffer memory and jumbo frame transparency
- Redundant +12 VDC ~ +48 VDC dual power inputs with reverse polarity protection
- Relay alarm output rated 1 A @ 30 VDC
308,00 € pro Stück
| 1–9 Stück | 308,00 € | |
|---|---|---|
| 10–30 Stück | 299,00 € | −3 % |
| ab 31 Stück | 293,00 € | −5 % |
Produktinformationen "NSM-200SX2 Gigabit Media Converter, 1000Base-T to 1000Base-SX Multi-mode SC"
NSM-200SX2 converts a 10/100/1000Base-T copper Ethernet connection into a 1000Base-SX multi-mode fibre link, letting engineers extend an existing network or connect a copper-only device to fibre without changing the rest of the installation. The single SC port uses 50/125 μm multi-mode fibre at 1310 nm with a rated distance of 2 km.
The unit suits industrial cabinets where reliability matters. It offers store-and-forward processing, transparency to jumbo frames, and Link Fault Pass-through (LFP), which can be enabled by DIP switch so that a fault on one side of the link is reflected to the other. Redundant +12 VDC ~ +48 VDC power inputs, a relay alarm output and a metal casing complete the specification, with DIN-rail or optional wall mounting.
Choose the NSM-200SX2 CR when you need a 1000Base-SX multi-mode solution with an extended operating range from -30 °C to +75 °C. Related models in the series include the NSM-200SX, NSM-200LX and NSM-200G-SFP.
Applications
- Extending the reach of an existing copper Gigabit Ethernet network over multi-mode fibre
- Connecting a 1000Base-T device to a 1000Base-SX fibre link
- Extending the distance between two Gigabit Ethernet devices
- Linking non-fibre equipment to a fibre backbone in industrial installations
| Product type: | Media Converter |
|---|---|
| Interface: | RJ-45, SC |
| Ports: | 1 x RJ-45, 1 x SC |
| Isolation: | Non-isolated |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -30 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Technische Daten

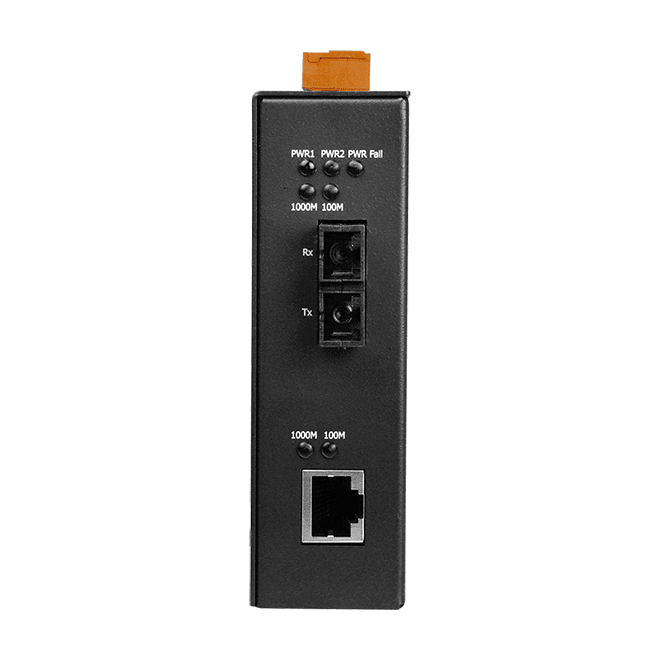

| LED Indicators | |
|---|---|
| Status | PWR1, PWR2, P-Fail, Link/Act, 100M, 1000M |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000Base-T(X) |
| Standards | IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX; IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity |
| Processing Type | Store & forward |
| Frame Buffer Memory | 512 Kbit |
| Jumbo Frames | 16K |
| DIP Switch | 1 x LFP Enable |
| Fiber | |
| Ports | 1 x 1000Base-FX, SC connector |
| Mode | Multi-Mode |
| Fiber Cable | 50/125 μm |
| Distance | 2 km |
| Wavelength | 1310 nm |
| TX Output | -9 dBm Min. -1 dBm Max. |
| RX Sensitivity | -19 dBm |
| RX Overload | -1 dBm |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC Redundant dual Input(Non-isolated) |
| Redundant Power Inputs | Yes |
| Consumption | 0.1 A @ 24 VDC |
| Alarm Output | Yes,Relay 1 A @ 30 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 33 x 120 x 109 (W x L x H) Wall mounting: 33 x 159 x 103 (W x L x H) |

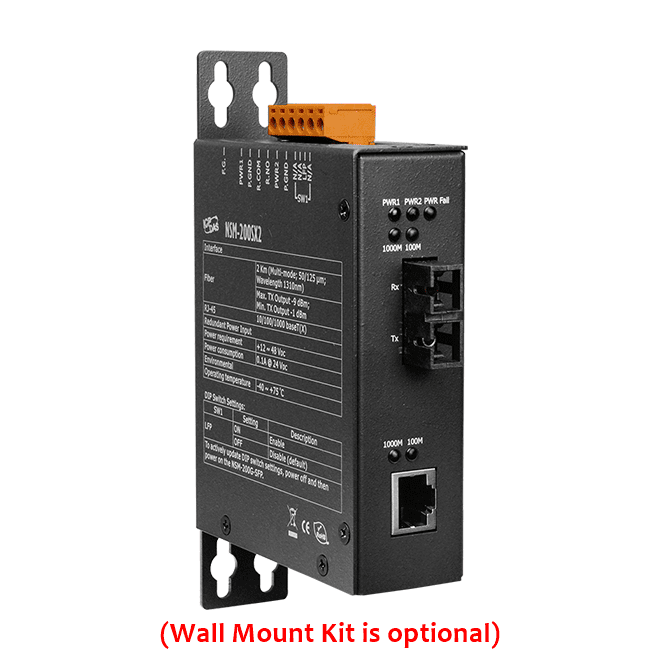

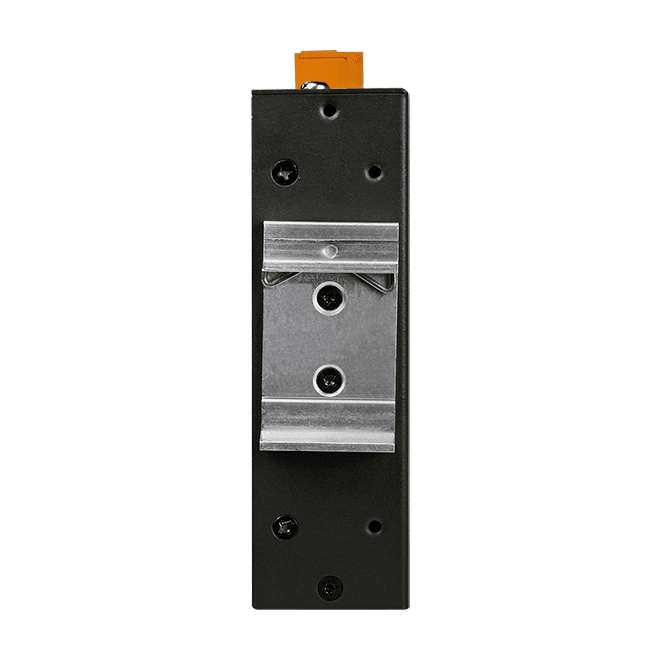

| Installation | DIN-rail mounting or wall mounting (optional) |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
