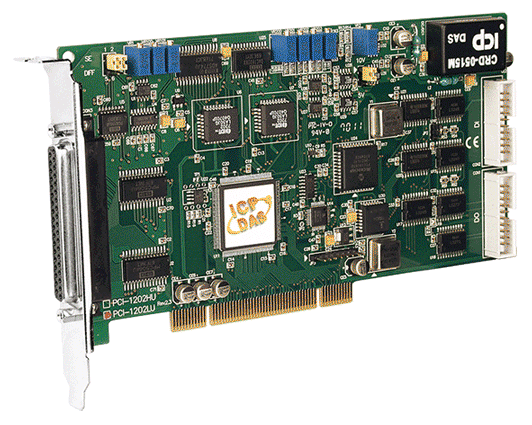

PCI-1202LU Universal PCI DAQ Board, 110 kS/s, 32-ch 12-bit Analog Input

Produktinformationen "PCI-1202LU Universal PCI DAQ Board, 110 kS/s, 32-ch 12-bit Analog Input"

The PCI-1202LU CR is a universal PCI data acquisition board for engineers who need fast 12-bit analogue input in a PC. It offers 32 single-ended or 16 differential inputs sampling at up to 110 kS/s, with a 1024-sample FIFO to buffer data between the board and the host.

Beyond analogue input, the board provides 2 analogue outputs, 16 TTL/5 V digital inputs with pull-high and pull-low resistors, 16 TTL/5 V digital outputs, and three 16-bit timer/counter channels. Software, internal pacer and external 5 V/TTL triggering are supported, with data transferred by polling.

This ordering code is the low-gain 110 kS/s variant with the 1K-word FIFO. The HU version samples at 44 kS/s for high-gain work, and the /8K versions add an 8K-sample FIFO. The board is supplied with one CA-4002 D-Sub connector.

Applications

  • High speed data acquisition systems
  • Process monitoring and control
  • Vibration analysis
  • Digital pattern generation from digital I/O port
Product type: DAQ board
Interface: Universal PCI
Digital inputs: 16
Digital outputs: 16
Analog inputs: 32 SE / 16 Diff
Analog outputs: 2
Operating temperature: 0 ~ +60 °C

Technische Daten

Hardware
ConnectorFemale DB37 x 1
Male 20-bit ribbon x 2
Card IDYes (4-bit) for Version 4.0 or above
Analog Input
Channels32 single-ended/16 differential
RangePCI-1202LU :
Gain: 0.5, 1, 2, 4, 8
Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V
Unipolar Range: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V
PCI-1202HU :
Gain: 0.5, 1, 5, 10, 50, 100, 500 ,1000
Bipolar Range: ±10 V, ±5 V, ±1 V, ±0.5 V, ±0.1 V, ±0.05 V, ±0.01 V, ±0.005 V
Unipolar Range: 0 ~ 10 V, 0 ~ 1 V, 0 ~ 0.1 V, 0 ~ 0.01 V
Resolution12-bit
Accuracy0.1% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling RatePCI-1202LU : 110 kS/s. Max.
PCI-1202HU : 44 kS/s. Max.
Input Impedance10 MΩ/6 Pf
Overvoltage ProtectionContinuous ±35 Vp-p
Zero Drift±4 ppm/°C of FSR
FIFO Size1024 samples
Trigger ModeSoftware, Internal programmable pacer, External (5 V/TTL)
Data TransferPolling
Analog Output
Channels2
Range±5 V, ±10 V
Resolution12-bit
Accuracy0.06% of FSR ±1 LSB @ 25 °C, ±10 V
Response Time1.0 MHz (Typical)
Voltage Output Capability±5 mA
Slew Rate8.33 V/μs
Operation ModeStatic Update
Digital Input
Channels16
Type5 V/TTL
ON Voltage Level2.0 V Min.
OFF Voltage Level0.8 V Max.
Response Speed1.0 MHz (Typical)
Trigger ModeStatic Update
Digital Output
Channels16
Type5 V/TTL
Operation ModeStatic Update
Load VoltageLogic 0: 0.4 V Max.
Logic 1: 2.4 V Min.
Load CurrentSink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V
Response Speed1.0 MHz (Typical)
Timer/Counter/Frequency
Channels3 (Independent x 1/Internal pacer x 1/External pacer x 1)
Type5 V/TTL
Resolution16-bit
Input Frequency10 MHz Max.
Reference ClockInternal: 8 MHz
PC Bus
Type3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus16-bit
Power
Consumption300 mA @ +5 V
Mechanical
Dimensions (mm)105 x 196 x 22 (W x L x D)
Environment
Operating Temperature0 ~ +60°C
Storage Temperature-20 ~ +70°C
Humidity5 ~ 85% RH, Non-condensing

Technische Daten laut Hersteller. Änderungen vorbehalten.
