PCIe-8620 PCI Express AI Board, 8-ch 16-bit 200 kS/s, 4-ch Isolated DIO
A 16-bit, 8-channel simultaneously sampled PCI Express analogue input board at up to 200 kS/s per channel, with 4 isolated digital inputs and 4 isolated digital outputs.
- PCI Express x1 interface in full-profile or low-profile form, with both brackets supplied
- 8 single-ended 16-bit analogue inputs, simultaneously sampled at 200 kS/s per channel
- Selectable ±10 V or ±5 V input range with gain of 1 or 2 and 0.05 % of FSR ±1 LSB accuracy at 25 °C
- 2048-sample hardware FIFO and built-in MagicScan controller
- 4 isolated digital inputs (5 V/TTL) and 4 isolated digital outputs (5 V/CMOS) with DO readback
- 2500 VDC bus-type isolation
354,00 € pro Stück
| 1–9 Stück | 354,00 € | |
|---|---|---|
| 10–30 Stück | 344,00 € | −3 % |
| ab 31 Stück | 337,00 € | −5 % |
Produktinformationen "PCIe-8620 PCI Express AI Board, 8-ch 16-bit 200 kS/s, 4-ch Isolated DIO"

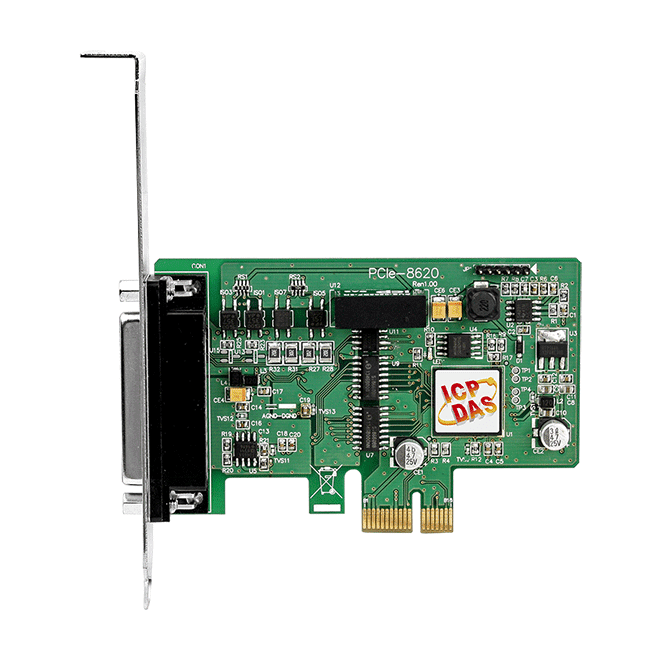

The PCIe-8620 CR is a PCI Express x1 data acquisition board that combines eight single-ended 16-bit analogue inputs with four isolated digital inputs and four isolated digital outputs on one card. All eight analogue channels sample simultaneously at up to 200 kS/s each, so it suits applications where channel-to-channel timing matters. Input ranges are software-selectable at ±10 V or ±5 V.
Isolation is rated at 2500 VDC bus-type across the analogue and digital I/O. A built-in MagicScan controller and a 2048-sample hardware FIFO help buffer high-rate acquisition. The board includes a second-order anti-alias filter, with a typical -3 dB frequency of 15 kHz on the ±5 V range and 23 kHz on the ±10 V range.

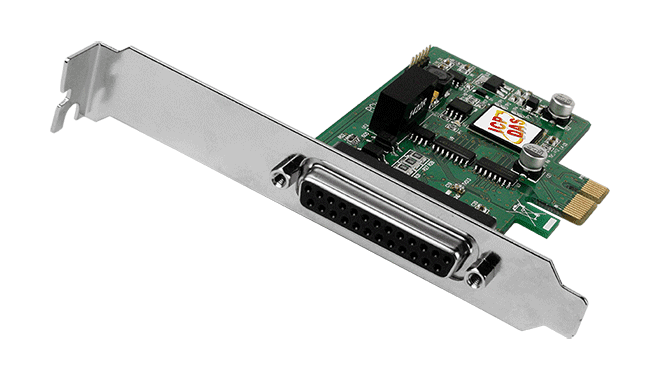

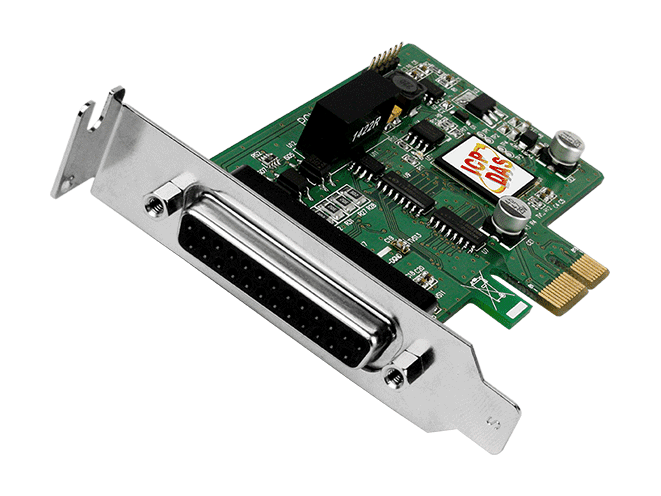

This is a low-profile board for compact PCs, and it is supplied with both full-height and low-profile brackets for standard-size systems. The ordering code includes one CA-PC25M D-Sub connector and one low-profile bracket. The card is CE, UKCA, FCC, RoHS and WEEE listed, with an operating range of 0 ~ +60°C.
Applications
- Isolated high-speed analogue data acquisition in PCs
- Data acquisition in computers with limited installation space
| Product type: | DAQ board |
|---|---|
| Interface: | PCI Express x1 |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Analog inputs: | 8 |
| Isolation: | 2500 VDC |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | PCI Express slot |
Technische Daten
| Hardware | |
|---|---|
| Connector | Female DB25 x 1 |
| Card ID | Yes (4-bit) |
| Analog Input | |
| Channels | 8 single-ended (Simultaneously) |
| Range | Gain: 1, 2 Bipolar Range: ±10 V, ±5 V |
| Resolution | 16-bit |
| Accuracy | 0.05 % of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate | 200 kS/s |
| Input Impedance | 10,000 MΩ/4pF |
| Overvoltage Protection | Continuous ±35 Vp-p |
| FIFO Size | 2048 samples |
| Trigger Mode | Software, Pacer |
| Isolation | 2500 VDC (Bus-type) |
| Data Transfer | Polling, Interrupt, DMA |
| Digital Input | |
| Channels | 4 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Data Transfer | Polling |
| Isolation | 2500 VDC |
| Digital Output | |
| Channels | 4 |
| Type | 5 V/CMOS |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V |
| Response Speed | 1.0 MHz (Typical) |
| Isolation | 2500 VDC |
| DO Readback | Yes |
| PC Bus | |
| Type | PCI Express x 1 |
| Data Bus | 32-bit |
| Power | |
| Consumption | 500 mA @ +3.3 V 200 mA @ +12 V |
| Mechanical | |
| Dimensions (mm) | Full-profile: 120 x 107 x 22 Low-profile: 80 x 107 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
