PDS-220FT Serial-to-Fibre Device Server, Modbus Gateway, 1x ST Fibre
Programmable device server adding a 2 km multi-mode ST fibre link to one RS-232 and one RS-422/485 serial port, with a Modbus TCP to RTU/ASCII gateway.
- Adds 100Base-FX multi-mode ST fibre connectivity (2 km) to serial devices
- One RS-232 port and one RS-422/485 port with a Self-Tuner ASIC controller on the RS-485 port
- Modbus TCP to RTU/ASCII gateway function built in
- Programmable device server running the built-in MiniOS7 from ICP DAS
- Virtual COM utility extends COM ports to Windows 32/64-bit systems
- Watchdog timer and +/-4 kV ESD protection on the serial port for harsh environments
279,00 € pro Stück
| 1–9 Stück | 279,00 € | |
|---|---|---|
| 10–30 Stück | 271,00 € | −3 % |
| ab 31 Stück | 265,00 € | −5 % |
Produktinformationen "PDS-220FT Serial-to-Fibre Device Server, Modbus Gateway, 1x ST Fibre"

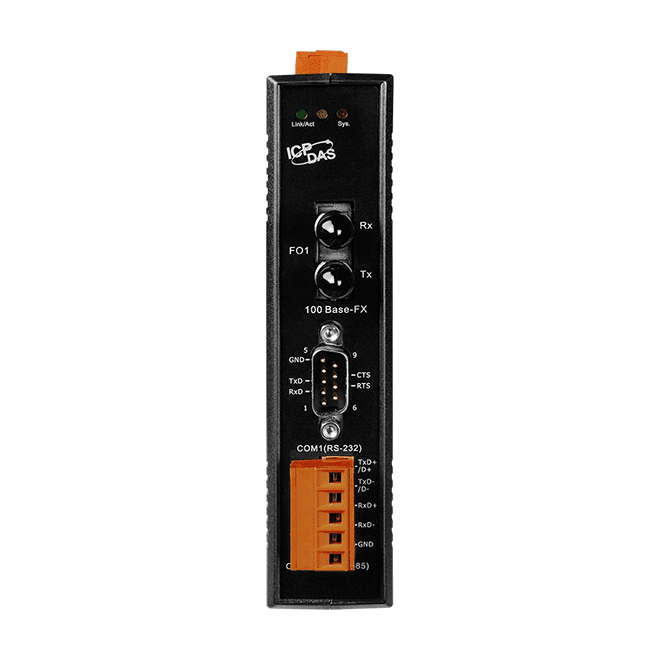

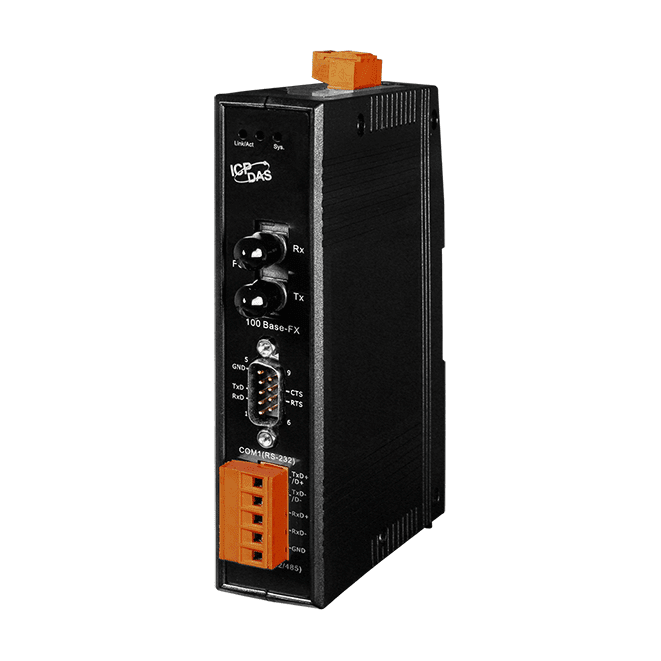

The PDS-220FT CR is a programmable device server that brings optical fibre connectivity to serial equipment. It connects one RS-232 port and one RS-422/485 port to a 100Base-FX Ethernet link over multi-mode ST fibre, rated at 2 km, so serial devices can communicate over distances that copper cabling struggles to cover.
Fibre suits sites with heavy electrical noise from motors, relays and welders, areas near high-voltage equipment or with differing earth potentials, and locations with flammable gases, as optical signals produce no sparks. The unit also includes a Modbus TCP to RTU/ASCII gateway, so Modbus TCP clients can reach Modbus RTU or ASCII devices on the serial side.

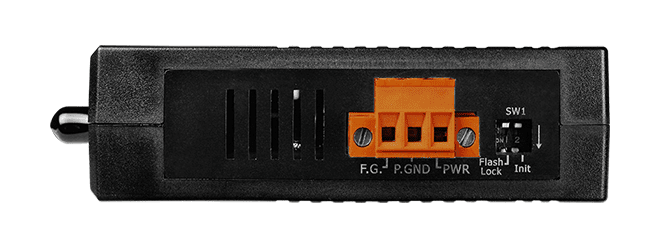

The VxComm-based Virtual COM utility maps the built-in serial ports to standard COM ports on Windows, while the built-in MiniOS7 and Xserver programming structure let engineers build custom Ethernet applications. A watchdog timer, removable terminal block and DIN-rail mounting support robust installation in industrial cabinets.
Applications
- Factory Automation
- Building Automation
- Home Automation
| Product type: | Serial-to-Fibre Device Server |
|---|---|
| Interface: | 100Base-FX, RS-232, RS-422/485 |
| Protocol: | Modbus TCP |
| Ports: | 2 serial + 1 fibre |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Fire retardant plastic |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| Flash | 512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycle |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power 2 x Ethernet |
| Ethernet | |
| Ports | 100 Base-FX (ST connector) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232 1 x RS-485/RS-422 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| Node Address | 254 (max.) |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 0.14 A @ 24 VDC |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Fire Retardant Plastic |
| Dimensions (mm) | 31 mm x 157 mm x 121 mm (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
