PISO-DA16U/S Universal PCI Isolated Analog Output Board, 16-ch 14-bit
16-channel, 14-bit isolated analog output board for universal PCI slots, with ±10 V or 0 to 20 mA outputs and a CA-3710 D-Sub cable included.
- 16-channel 14-bit analog output with ±10 V or 0 to 20 mA ranges, configurable per channel
- 2500 V DC bus-type isolation with built-in DC/DC converter rated for 3000 V DC protection
- Software calibration with data saved in EEPROM, no manual trimming required
- 16-channel 5 V/TTL digital input and 16-channel 5 V/TTL digital output
- Pull-high and pull-low function on DI channels
- Three 16-bit timer/counter channels with 4 MHz internal reference clock
636,00 € pro Stück
| 1–9 Stück | 636,00 € | |
|---|---|---|
| 10–30 Stück | 617,00 € | −3 % |
| ab 31 Stück | 604,00 € | −5 % |
Produktinformationen "PISO-DA16U/S Universal PCI Isolated Analog Output Board, 16-ch 14-bit"

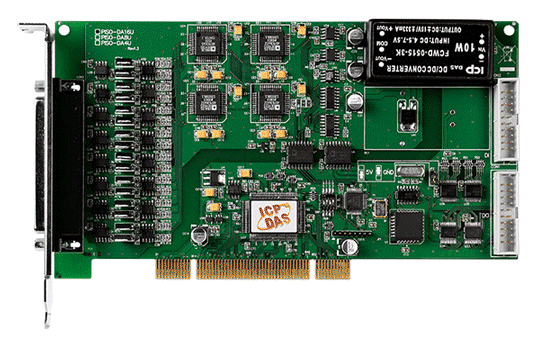

The PISO-DA16U/S CR is a universal PCI analog output board with 16 channels of 14-bit output. Each channel can be set individually to voltage (±10 V) or current (0 to 20 mA), which suits engineers who need mixed signal types on one card.
The board is designed as a drop-in replacement for the PIO-DA series, so existing software and drivers do not need to be modified. Its 2500 V DC bus-type isolation helps protect the host PC from power surges. Calibration is performed in software, and the calibration data is stored in EEPROM, so no jumpers or trim-pots are needed.
This /S variant ships with a CA-3710 D-Sub cable. Choose the CR connector version (CA-4002) if you prefer that accessory instead. The onboard 4-bit Card ID switch lets software identify the board when two or more cards are fitted in the same computer.
Applications
- High speed data acquisition systems
- Process monitoring and control
- Vibration analysis
- Digital pattern generation from digital I/O port
| Product type: | PCI DAQ board |
|---|---|
| Interface: | Universal PCI (3.3 V/5 V) |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog outputs: | 16 |
| Isolation: | 2500 V DC |
| Operating temperature: | 0 ~ +60 °C |
Technische Daten
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin Box header x 2 |
| Card ID | Yes (4-bit) |
| Analog Output | |
| Channels | PISO-DA4U : 4 PISO-DA8U : 8 PISO-DA16U : 16 |
| Range | Voltage: ±10 V Current: 0 ~ 20 mA |
| Resolution | 14-bit |
| Accuracy | 0.04% of FSR ±2 LSB @ 25 °C, ± 10 V |
| Response Time | 333 kHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 0.71 V/μs |
| Isolation | 2500 V (Bus Type) |
| Operation Mode | Static Update |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Reference Clock | Internal: 4 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | PISO-DA4U : 2200 mA @ +5 V PISO-DA8U : 2400 mA @ +5 V PISO-DA16U : 3000 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 188 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
