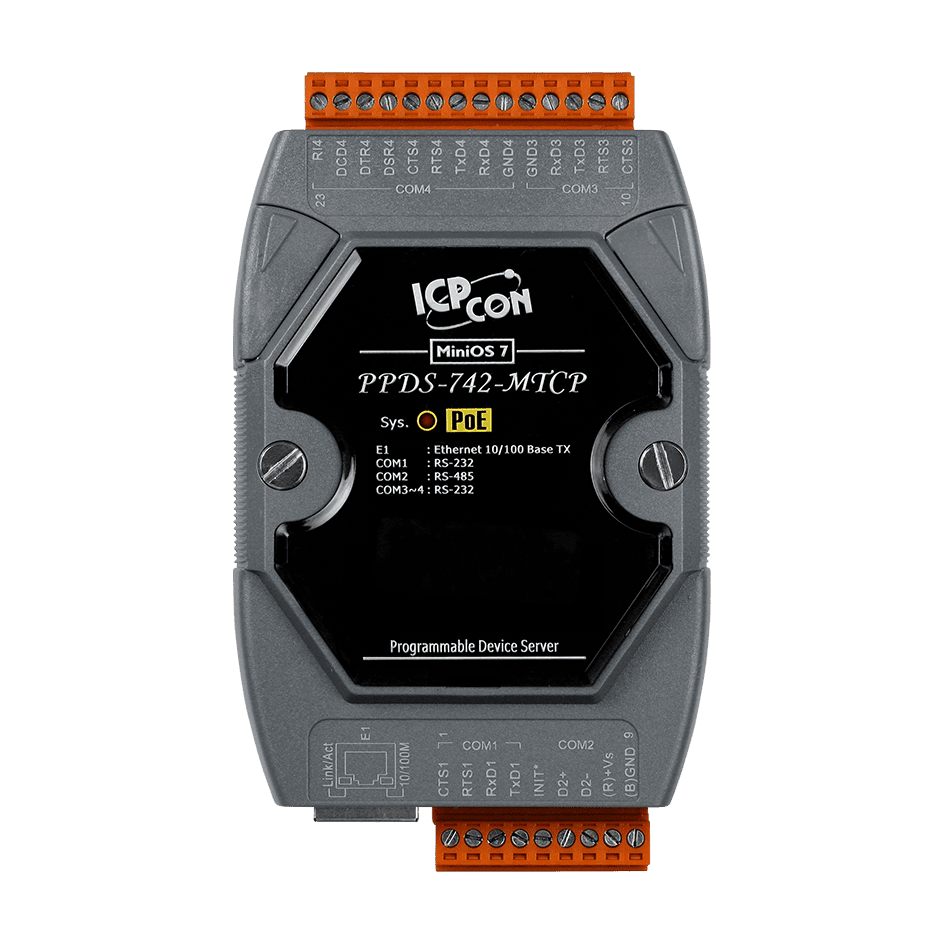

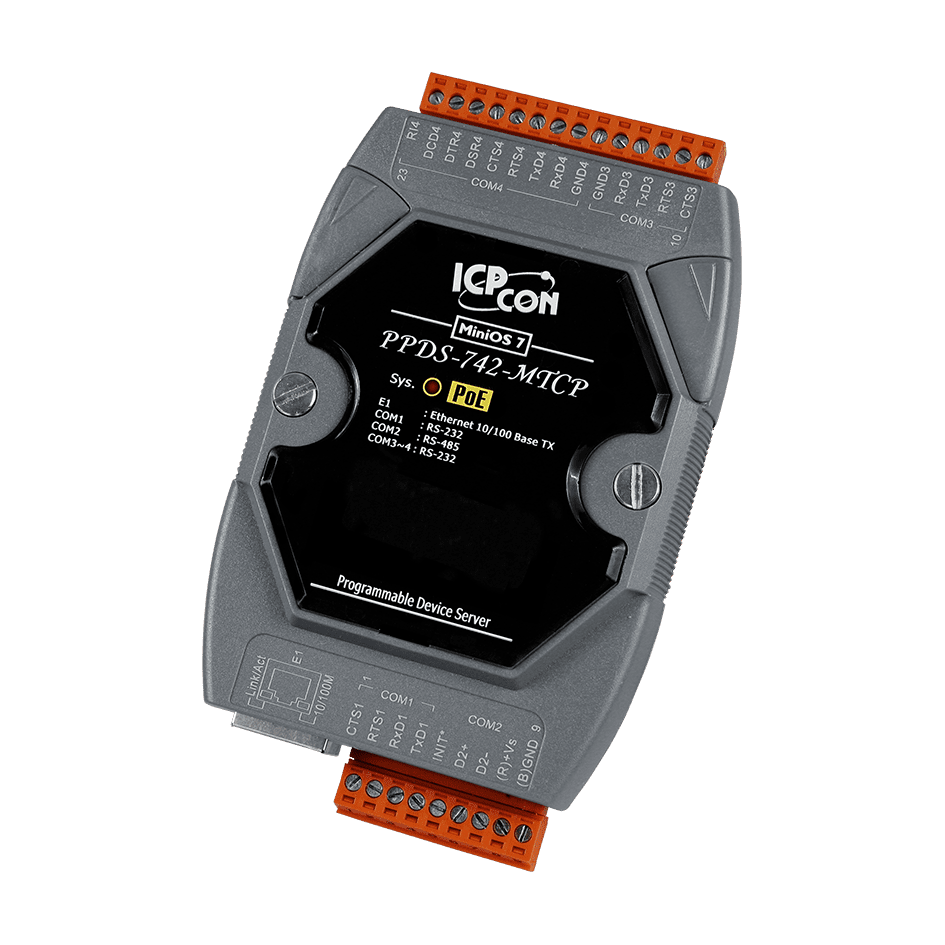

PPDS-742-MTCP Serial-to-Ethernet Device Server, 3x RS-232 + 1x RS-485, PoE
Programmable device server linking three RS-232 ports and one RS-485 port to Ethernet, with PoE power and a Modbus TCP to RTU/ASCII gateway function.
- Three RS-232 ports and one RS-485 port bridged to a 10/100 Base-TX Ethernet connection
- Modbus TCP to RTU/ASCII gateway for SCADA and HMI communications
- Virtual COM operation via the VxComm utility on 32/64-bit Windows 7 SP1, 10, 2012 and 2016
- Programmable device server with built-in MiniOS7 and watchdog timer
- IEEE 802.3af Class 1 PoE or +12 ~ 48 VDC terminal block power
- +/-4 kV ESD protection on serial ports and a self-tuner ASIC controller on RS-485
320,00 € pro Stück
| 1–9 Stück | 320,00 € | |
|---|---|---|
| 10–30 Stück | 311,00 € | −3 % |
| ab 31 Stück | 304,00 € | −5 % |
Produktinformationen "PPDS-742-MTCP Serial-to-Ethernet Device Server, 3x RS-232 + 1x RS-485, PoE"
The PPDS-742-MTCP brings legacy serial equipment onto an Ethernet network. It provides three RS-232 ports and one RS-485 port, and can be powered over Ethernet using IEEE 802.3af Class 1 PoE from a standard category 5 cable. Its VxComm driver can map the device's serial ports to virtual COM ports on a Windows PC, so existing COM-based software can keep working.
Beyond simple serial tunnelling, the unit runs a programmable device server environment with the built-in MiniOS7 firmware, and it can act as a Modbus TCP to RTU/ASCII gateway for SCADA and HMI systems that speak Modbus TCP. Serial ports carry +/-4 kV ESD protection, and the RS-485 port uses a self-tuner ASIC controller.
This ordering code is supplied with a CA-0910 cable. The unit has a plastic casing, a removable terminal block for wiring, and can be installed on a DIN rail or wall. Its operating range is -25 ~ +75 °C.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 3x RS-232, 1x RS-485, 1x Ethernet |
| PoE: | IEEE 802.3af Class 1 |
| Power input: | +12 ~ 48 VDC, PoE |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power/PoE |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 2 x 5-wire RS-232 1 x 9-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 ~ COM4 |
| Stop Bit | 1, 2: for COM1 ~ COM4 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.2 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
