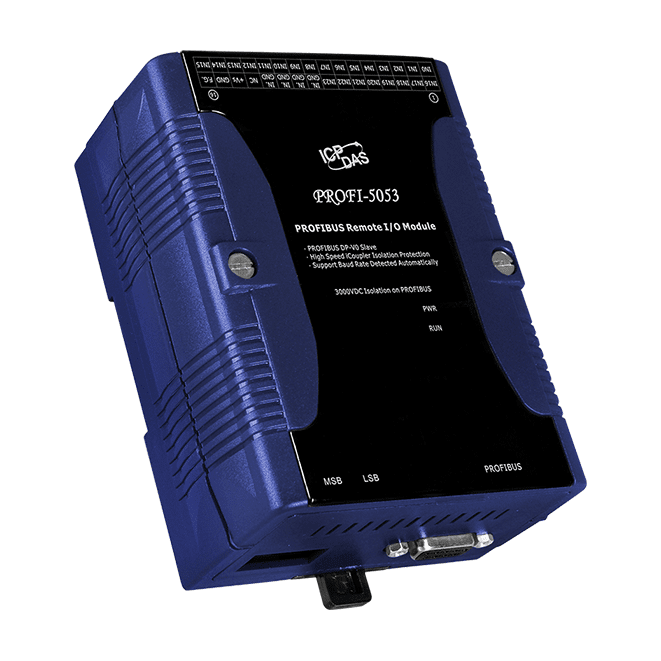

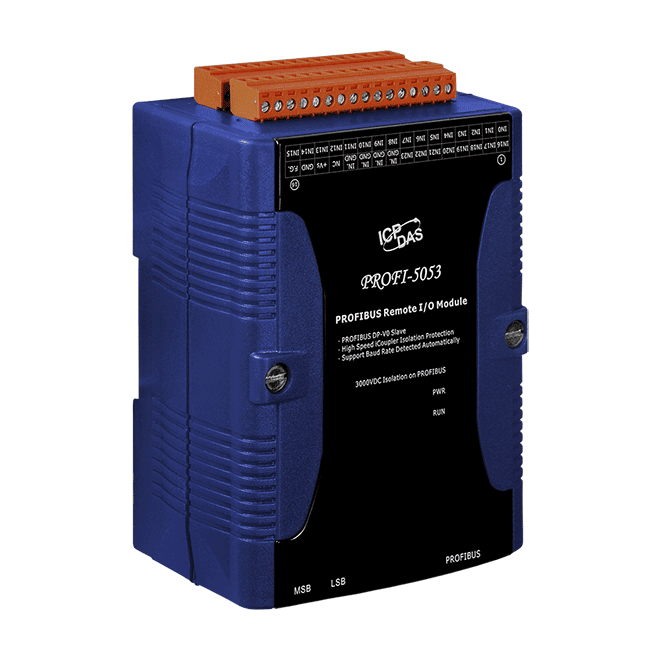

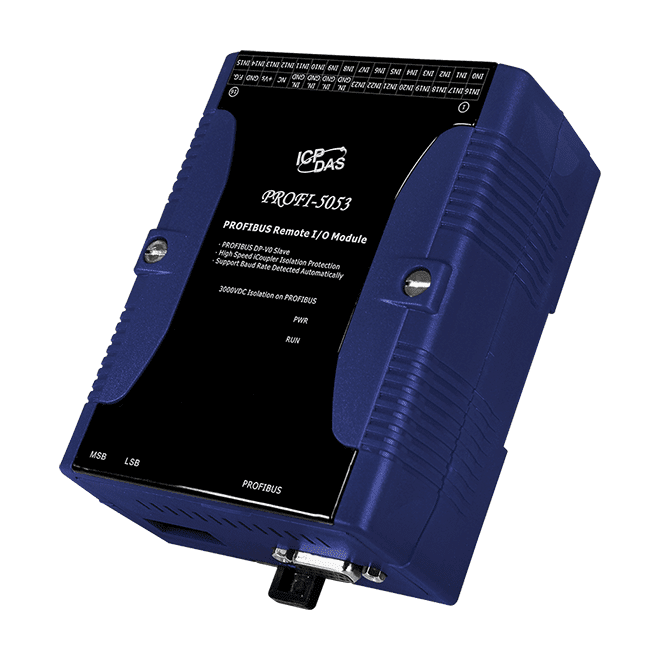

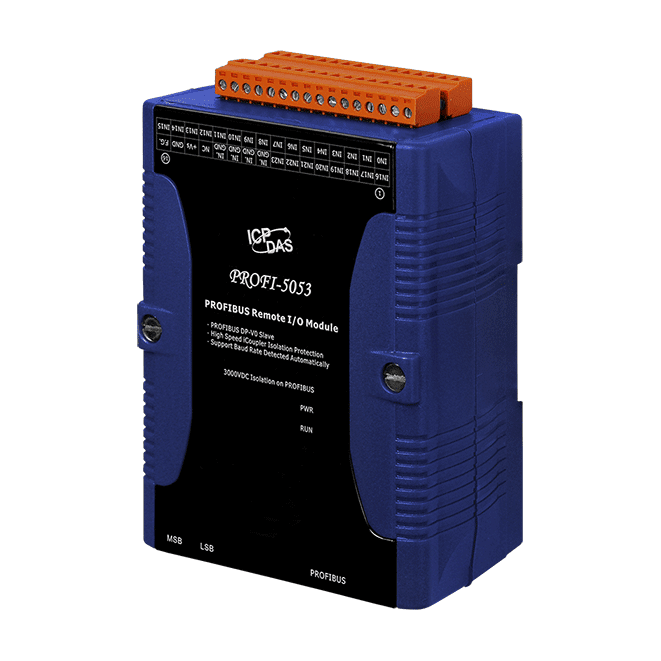

PROFI-5053 PROFIBUS DP Remote I/O Module, 24-ch Dry Contact Digital Input
PROFIBUS DP-V0 slave remote I/O module with 24 non-isolated dry contact digital inputs, configured through a GSD file and mounted on DIN-rail.
- PROFIBUS DP-V0 slave with 24 dry contact digital input channels, non-isolated inputs
- Transmission rate detected automatically, supporting 9.6 k up to 12 M baud
- Node address 0~99 set by rotary switches
- Configured by GSD file in any PROFIBUS configurator
- High Speed iCoupler network isolation and 3000 VDC DC isolation on the PROFIBUS side
- 4KV ESD protection with contact for each terminal
237,00 € pro Stück
| 1–9 Stück | 237,00 € | |
|---|---|---|
| 10–30 Stück | 230,00 € | −3 % |
| ab 31 Stück | 225,00 € | −5 % |
Produktinformationen "PROFI-5053 PROFIBUS DP Remote I/O Module, 24-ch Dry Contact Digital Input"

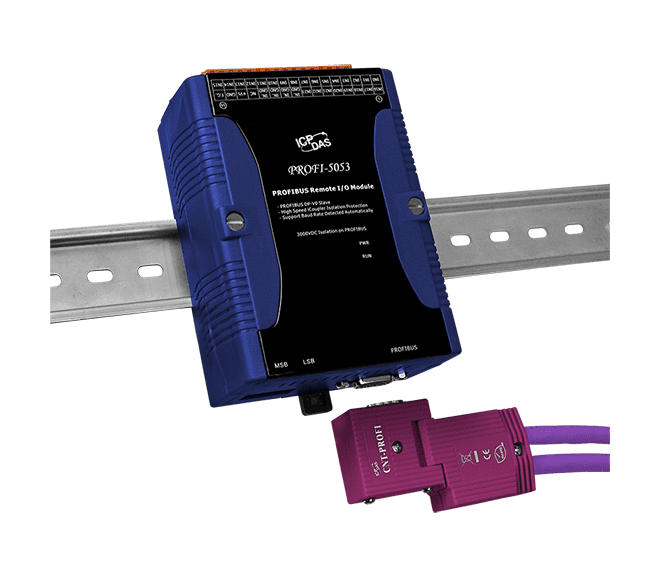

The PROFI-5053 CR is a PROFIBUS DP slave that brings 24 dry contact digital inputs onto a PROFIBUS network. It suits engineers who need a compact, DIN-rail mounted input point for distributed machine or plant signals without adding a separate PLC input card.
Integration is straightforward. The module is set up from its GSD file in any PROFIBUS configurator, and the node address is chosen between 0 and 99 using rotary switches. The transmission rate is detected automatically across the listed PROFIBUS baud rates, up to 12 M.
For electrically noisy or mixed-potential installations, the bus side is isolated, with 3000 VDC DC-to-DC and 2500 Vrms bus-to-logic isolation, and each terminal carries 4KV ESD protection. The unit is rated for operation from -25 ~ +75℃.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Remote I/O module |
|---|---|
| Interface: | PROFIBUS |
| Protocol: | DP-V0 |
| Digital inputs: | 24 |
| Isolation: | 3000 VDC DC-to-DC, 2500 Vrms bus-to-logic |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| LED Indicators | |
|---|---|
| Status | PWR LED, RUN LED |
| Digital Input | |
| Channels | 24 Channels (Dry Contact), Non-Isolated. Off Voltage Level: Close to IN.GND. On Voltage Level: Open |
| PROFIBUS | |
| Controller | Profichip VPCLS2 |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 |
| Power | |
| Consumption | 1 W |
| Mechanical | |
| Dimensions (mm) | 91 x 128 x 52 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
