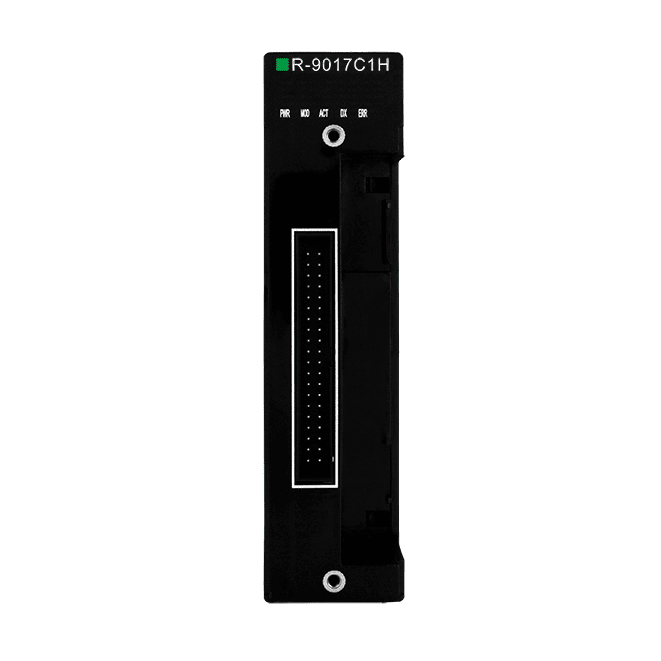

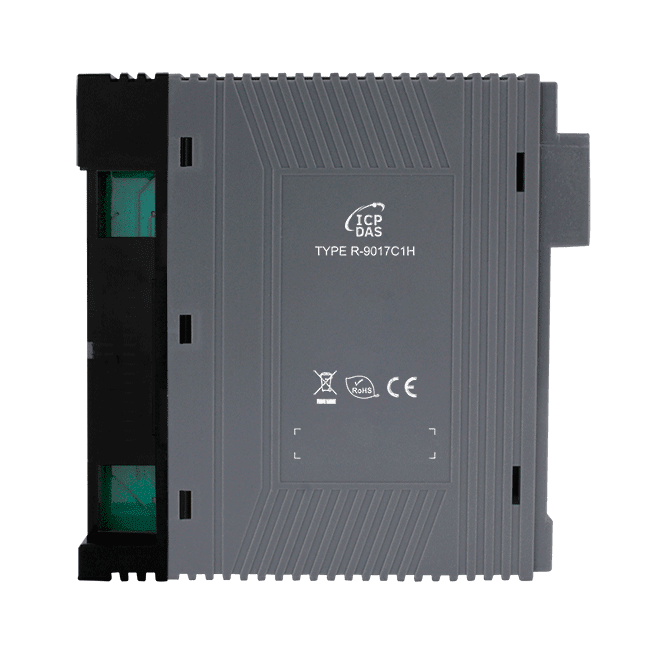

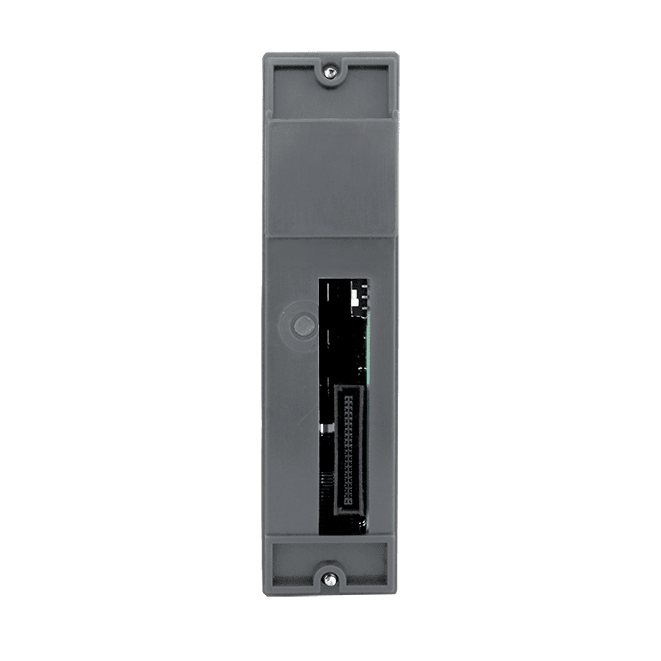

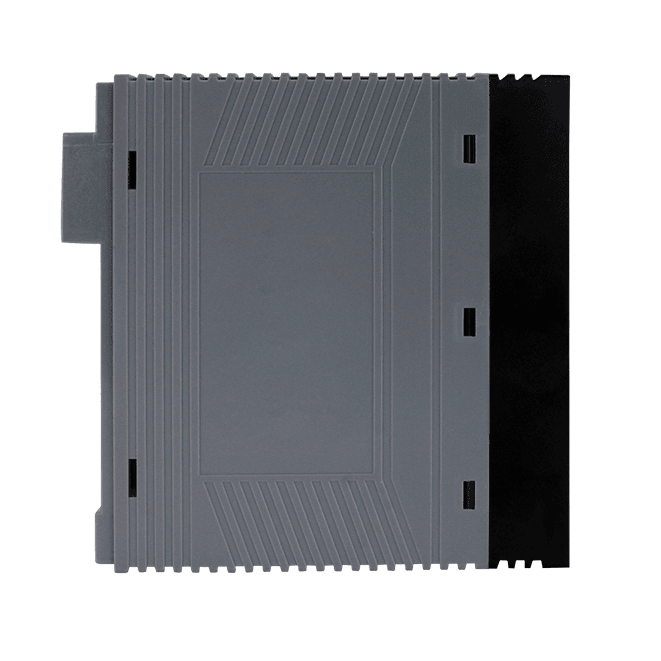

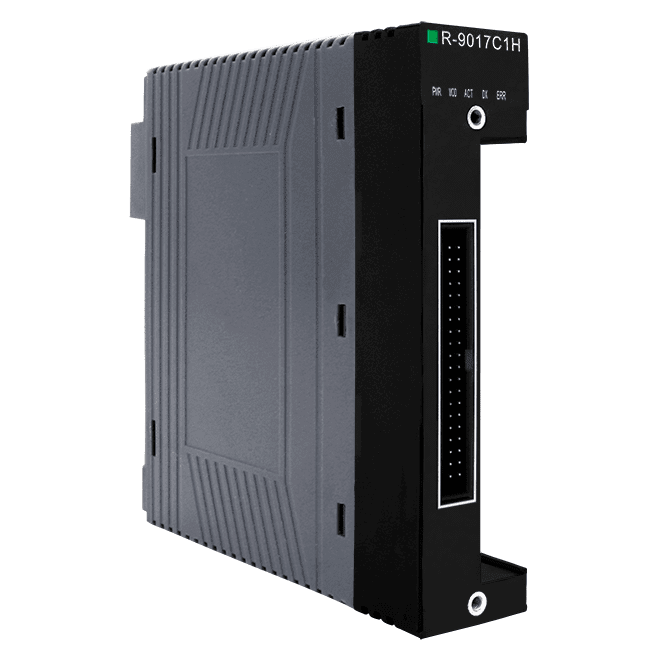

R-9017C1H 8-ch Isolated 4~20mA Input Module with HART Master
8-channel, 16-bit isolated 4~20mA analog input module with a built-in HART master, overrange measurement to 24 mA and redundancy support within the RIO-98x0 system.
- Eight channel-isolated 4~20 mA current inputs with 16-bit resolution and ±0.05% FSR accuracy
- Overrange measurement from 0 to 24 mA
- Built-in HART master for accessing HART device information
- Redundant switching time below 1 ms within the RIO-98x0 redundancy design
- Channel disconnection and terminal board disconnection detection
- High/low alarm and break-line LED indication for each channel
1.346,00 € pro Stück
| 1–9 Stück | 1.346,00 € | |
|---|---|---|
| 10–30 Stück | 1.306,00 € | −3 % |
| ab 31 Stück | 1.279,00 € | −5 % |
Produktinformationen "R-9017C1H 8-ch Isolated 4~20mA Input Module with HART Master"
The R-9017C1H CR is a redundancy-capable analog input module for engineers who need eight channel-isolated current inputs with HART device access. Each channel accepts 4~20 mA signals and measures up to 0~24 mA, covering the ±25% overrange band, at 16-bit resolution and ±0.05% FSR accuracy.
Built-in HART master communication allows the module to read HART device information directly, with the HART topology set to master in a monodrop (point-to-point) configuration. Channel loop power of 28 VDC is available to simplify field wiring, and the module reports channel high/low alarms and break-line conditions through its LEDs and diagnostics.
The module must be used with a terminal board, either RDB-S09 or RDB-D09, and it detects terminal board disconnection to help keep wiring reliable. Within the RIO-98x0 redundancy design, the system can keep running if a single I/O module fails, with a switching time below 1 ms. The CR suffix denotes the RoHS-compliant version.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Analog Input Module |
|---|---|
| Protocol: | HART |
| Analog inputs: | 8 |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +70 °C |
Technische Daten
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 PWR, 1 MOD, 1 ACT, 1 DX, 1 ERR LED 0~7 for CH High/Low Alarm LED 16~23 for CH Break Line |
| Analog Input | |
| Channels | 8 |
| Type | 4 ~ 20 mA (Support ±25% overrange) |
| Range | 0~24 mA |
| Resolution | 16 bit |
| Accuracy | ±0.05% FSR |
| Sampling Rate | 100 Samples/sec(Total) |
| Input Impedance | 105.3 Ω ±1 % (Single/Duplex) |
| Common Mode Rejection | 86 dB |
| Normal Mode Rejection | 100 dB |
| Zero Drift | ±0.002 LBS/℃ |
| Span Drift | ±5 ppm/℃ |
| Isolation | 3000 VDC |
| I/O Expansion | |
| I/O Type | RDB-S09 / RDB-D09 |
| HART | |
| Topology | Master, Monodrop (Point-to-Point) |
| Power | |
| Consumption | 4.6 W |
| Mechanical | |
| Dimensions (mm) | 33 x 129 x 130 |
| Environment | |
| Operating Temperature | -25 °C ~ +70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
