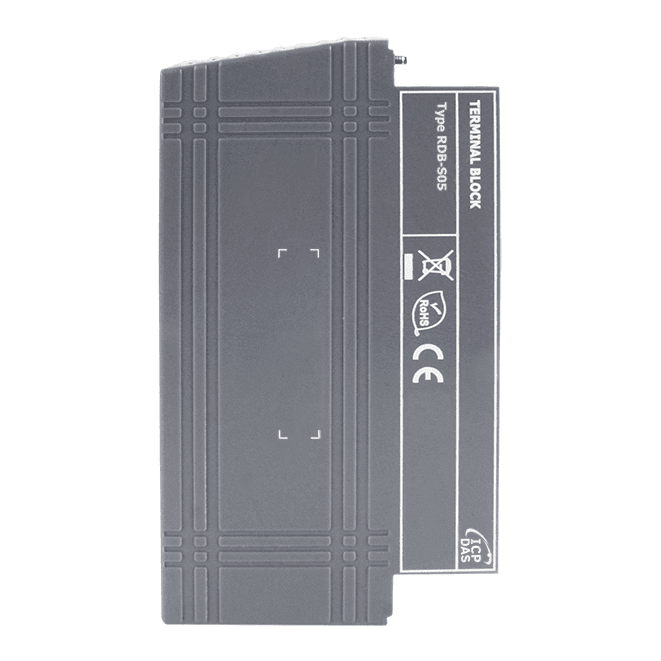

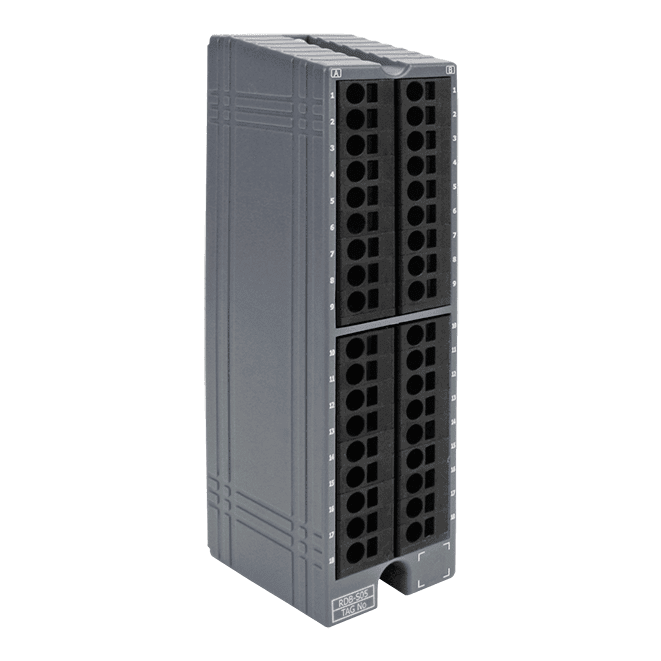

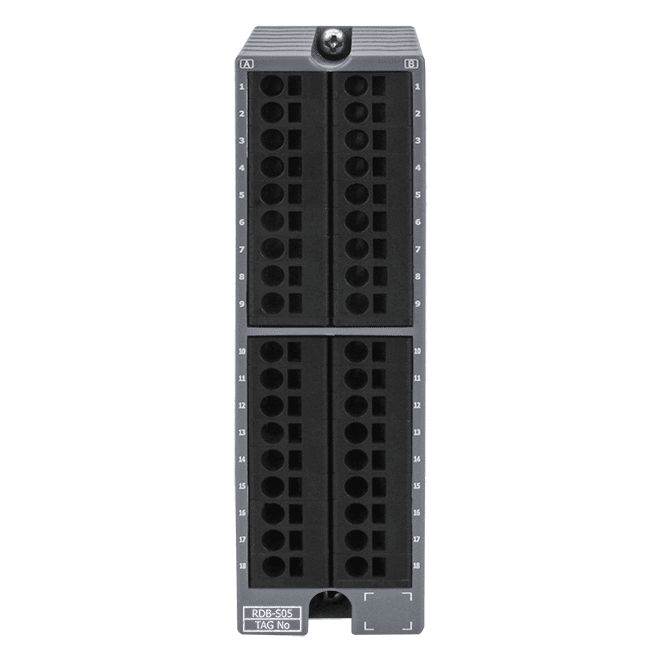

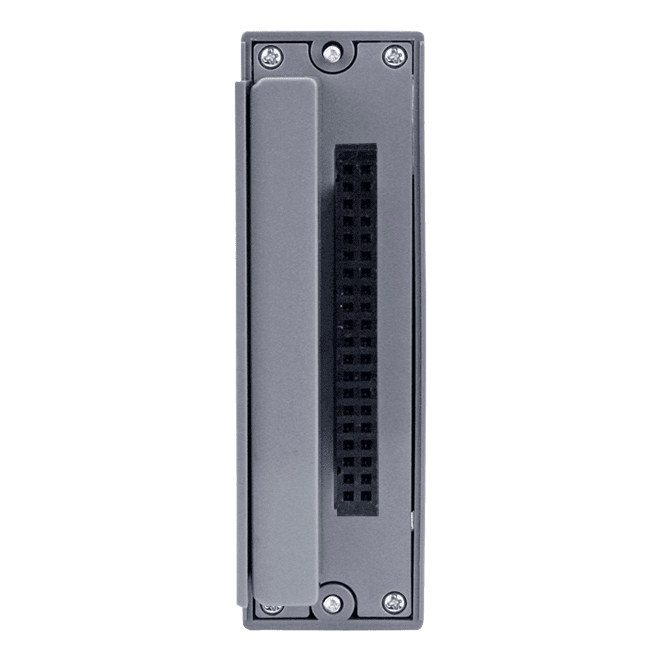

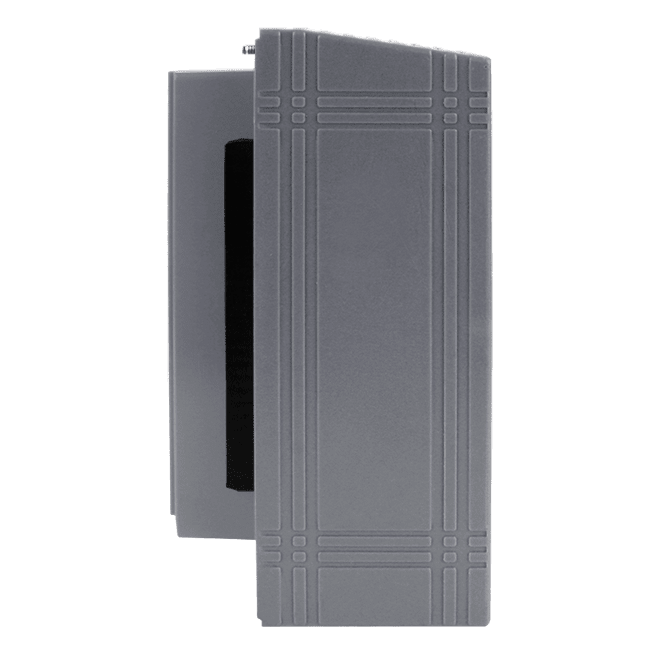

RDB-S05 Spring Clamp Termination Board for R-9041, 32-ch Digital Output
Spring clamp termination board for the R-9041 digital output module, with disconnection detection that raises an alarm if the board separates from the I/O module.
- Spring clamp terminal wiring for faster field connections
- Disconnection detection triggers an alarm if the board separates from the I/O module
- Termination board for 32 digital output channels
- Supports the R-9041 I/O module
- Dimensions 32 x 115 x 60 mm
- Operating temperature -25 °C to 75 °C
153,00 € pro Stück
| 1–9 Stück | 153,00 € | |
|---|---|---|
| 10–30 Stück | 149,00 € | −3 % |
| ab 31 Stück | 146,00 € | −5 % |
Produktinformationen "RDB-S05 Spring Clamp Termination Board for R-9041, 32-ch Digital Output"
RDB-S05 CR is a single I/O termination board designed to be paired with the R-9041 digital output module. Its spring clamp terminals give a quicker, tool-assisted wiring route for field signals, which helps reduce commissioning and installation time on panels with many connections.
The board includes disconnection detection. If it becomes separated from the I/O module, an alarm is triggered promptly, so faults in the signal path are flagged early. This supports more dependable wiring in installations where reliability and stability are critical.
Listed under the RIO-98x0 (Redundancy I/O) category, the RDB-S05 CR is supplied in the RoHS-compliant version and carries CE, UKCA, RoHS and WEEE marks. It is rated for an operating temperature of -25 °C to 75 °C and 5 to 95% RH, non-condensing.
Applications
- Digital output wiring in industrial automation panels
- Remote I/O installations requiring high reliability and stable signal wiring
| Product type: | Termination board |
|---|---|
| Interface: | Spring clamp terminal |
| Digital outputs: | 32 |
| Operating temperature: | -25 ~ 75 °C |
Technische Daten
| Digital Output | |
|---|---|
| Channels | 32 |
| Mechanical | |
| Dimensions (mm) | 32 x 115 x 60 |
| Environment | |
| Operating Temperature | -25 °C ~ 75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
