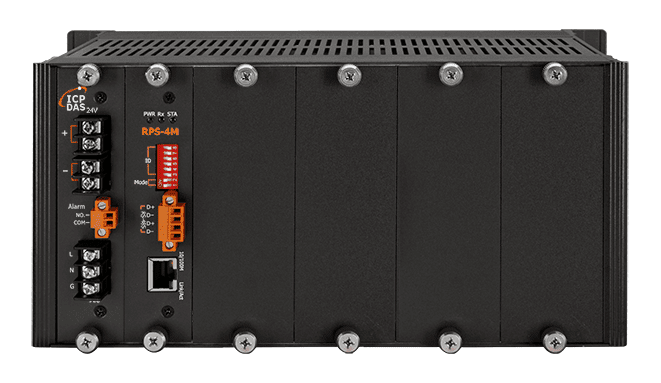

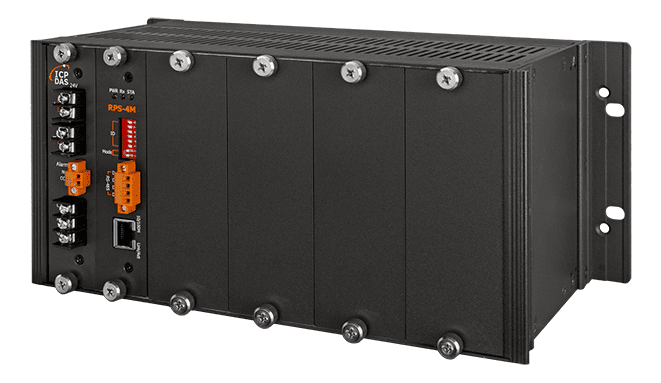

RPS-4M 4-Slot Redundant Power Communication Module, Modbus RTU/TCP
4-slot N+1 redundant power communication module with hot-swappable power modules, status monitoring and a relay alarm output, accessible over Modbus RTU/TCP.
- Four power slots supporting up to 400W in total, each accepting a 100W power module
- N+1 redundancy with up to three active modules, with load current shared evenly across them
- Hot-swappable power modules for replacement without system shutdown
- Per-module monitoring of temperature, output current, status and usage time
- 1 x relay alarm output (Form A, 5A) for module failure signalling
- Modbus RTU slave over RS-485 and Modbus TCP server over Ethernet for remote status access
656,00 € pro Stück
| 1–9 Stück | 656,00 € | |
|---|---|---|
| 10–30 Stück | 636,00 € | −3 % |
| ab 31 Stück | 623,00 € | −5 % |
Produktinformationen "RPS-4M 4-Slot Redundant Power Communication Module, Modbus RTU/TCP"
RPS-4M CR is a 4-slot redundant power communication module that combines N+1 power backup with remote monitoring of the power modules it hosts. Each slot takes a 100W power module, and when four modules are fitted the unit can deliver the rated power of three, so the failure of any one module does not interrupt supply. The load current is shared evenly across the modules, which avoids premature wear on a single unit.
Power modules can be hot-swapped, so a faulty unit can be replaced without shutting down the system. The built-in diagnostics report the temperature, output current, status and usage time of each module, and a relay alarm output signals a module failure to external equipment. Diagnostic data can be read by a supervisory system over RS-485 or Ethernet.
Communication uses Modbus RTU slave on the RS-485 port and Modbus TCP server with a built-in web server on the 10/100Base-TX Ethernet port. Engineers can use the module in ICP DAS redundant architectures covering I/O, controller, Ethernet ring and HMI redundancy.
Applications
- Redundant power supply for I/O data acquisition systems
- Controller redundancy for program control
- Ethernet ring communication redundancy
- HMI redundancy for display and information recording
- Remote monitoring of power module condition in industrial control cabinets
| Product type: | Redundant power communication module |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | Modbus RTU, Modbus TCP |
| Relay outputs: | 1 |
| Ports: | 2 (1 x RJ-45, 1 x RS-485) |
| Power input: | 90 ~ 264 VAC |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Technische Daten
| EMC | |
|---|---|
| Standard | IEC 61000-4-2(ESD): ±4 kV for Contact IEC 61000-4-4(EFT): ±500 V for Signal |
| LED Indicators | |
| Status | 3, PWR, Rx, STA |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-TX |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP server, Web server |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps default: 9600 bps |
| Data Format | (N,8,1),(N,8,2),(E,8,1),(O,8,1) default:(N,8,1) |
| Protocol | Modbus RTU slave |
| Node Address | Hardware: 1 ~ 64 Software: 1~255 |
| General | |
| Slot | 4, for power modules |
| Self-diagnostic | |
| Current Measurement | 0A~5A; +/- 0.25A |
| Temperature Measurement | 0℃~100℃; +/- 5℃ |
| Alarm Output | 1x Relay; Form A, 5A |
| Power | |
| Input Range | 90 ~ 264 VAC |
| Consumption | 110 VAC, 45 mA, 4.95W |
| Mechanical | |
| Casing | metal |
| Dimensions (mm) | 133 x 266 x 177 (W x L x D) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -20 ~ +50 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
