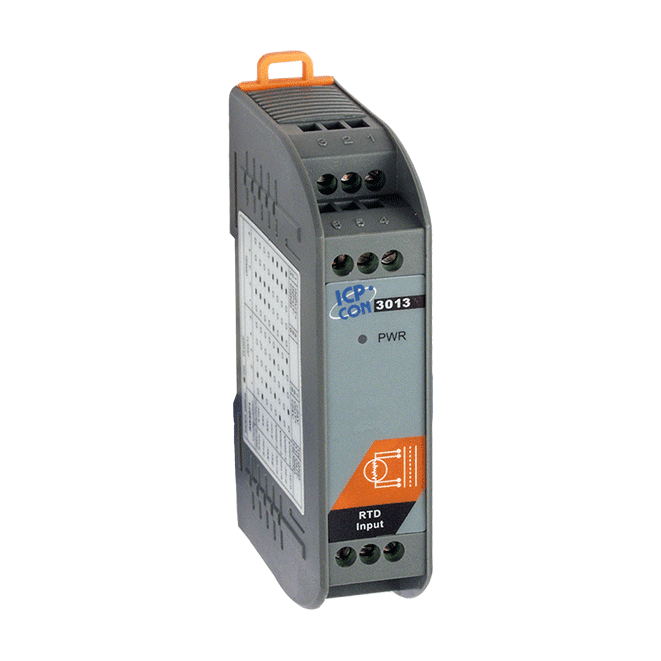

SG-3013-G RTD Input Signal Conditioner with Voltage/Current Output
DIN-rail RTD to voltage or current signal conditioner with 1000 VDC three-way isolation, ±0.1% of full range accuracy and a +10 to +30 VDC power input.
- Single RTD input supporting Pt100 α=0.00385, Pt100 α=0.003916, Ni 120 and Pt1000 α=0.00385
- Voltage output of 0 ~ 5 VDC or 0 ~ 10 VDC, or current output of 0 ~ 20 mA or 4 ~ 20 mA, selected by internal configuration switches
- 1000 VDC three-way isolation between input, output and power
- Accuracy of ±0.1% of full range with 100 ms response time
- Operating temperature range of -25 °C ~ 75 °C
- Power input of +10 ~ +30 VDC with reverse polarity protection and 1.2 W consumption
160,00 € pro Stück
| 1–9 Stück | 160,00 € | |
|---|---|---|
| 10–30 Stück | 155,00 € | −3 % |
| ab 31 Stück | 152,00 € | −5 % |
Produktinformationen "SG-3013-G RTD Input Signal Conditioner with Voltage/Current Output"
The SG-3013-G CR conditions a single RTD sensor signal and delivers it as a standard voltage or current output for control and monitoring equipment. It accepts Pt100, Ni 120 and Pt1000 sensors, and internal configuration switches let you adjust the input and output ranges without changing the hardware.
Isolation and accuracy: Input, output and power are separated by 1000 VDC three-way isolation, and the module holds an accuracy of ±0.1% of full range with a 100 ms response time. It is rated for operation from -25 °C to 75 °C, so it suits installations with a wide temperature range.
Installation: The module mounts on a standard DIN rail in a 25 mm x 114 mm x 70 mm housing. Reverse polarity protection is fitted on the supply input, and the ordering code is listed as RoHS compliant.
| Product type: | Signal conditioner |
|---|---|
| Isolation: | 1000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Isolation | |
|---|---|
| Three-way Isolation | 1000 VDC |
| Analog Input | |
| Channels | 1 |
| Type | Pt100 α=0.00385 / Pt100 α=0.003916 / Ni 120 / Pt1000 α=0.00385 |
| Accuracy | ±0.1% of full range |
| Response Time | 100 ms |
| Analog Output | |
| Channels | 1 |
| Range | Voltage: 0 ~ 5 VDC, 0 ~ 10 VDC Current: 0 ~ 20 mA, 4 ~ 20 mA |
| Current Load Resistance | 0 ~ 500 Ω (Source) |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.2 W |
| Mechanical | |
| Dimensions (mm) | 25 mm x 114 mm x 70 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 °C ~ 75 °C |
| Storage Temperature | 30 °C ~ 75 °C |
| Humidity | 5 ~ 95%, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
