TPD-283U-M1 2.8-inch Touch HMI Device with PoE Ethernet and RS-485
2.8-inch resistive touch HMI with a 240 x 320 TFT display, PoE Ethernet, RS-485, RTC and Modbus TCP/RTU support, designed for wall-mounted building and home automation control.
- 2.8-inch 240 x 320 TFT colour display with resistive touch panel
- PoE (IEEE 802.3af, Class 1) or +12 ~ 48 VDC terminal block power
- One RJ-45 10/100 Base-TX Ethernet port and one RS-485 port with Self-Tuner
- Modbus TCP and Modbus RTU protocol support plus custom C-language protocols
- Real-time clock (RTC) on board
- Free HMIWorks tool with Ladder Designer and C language environment
186,00 € pro Stück
| 1–9 Stück | 186,00 € | |
|---|---|---|
| 10–30 Stück | 180,00 € | −3 % |
| ab 31 Stück | 176,00 € | −5 % |
Produktinformationen "TPD-283U-M1 2.8-inch Touch HMI Device with PoE Ethernet and RS-485"

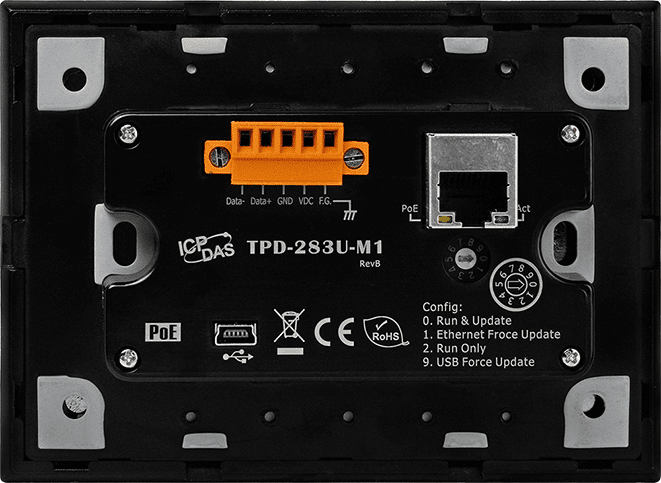

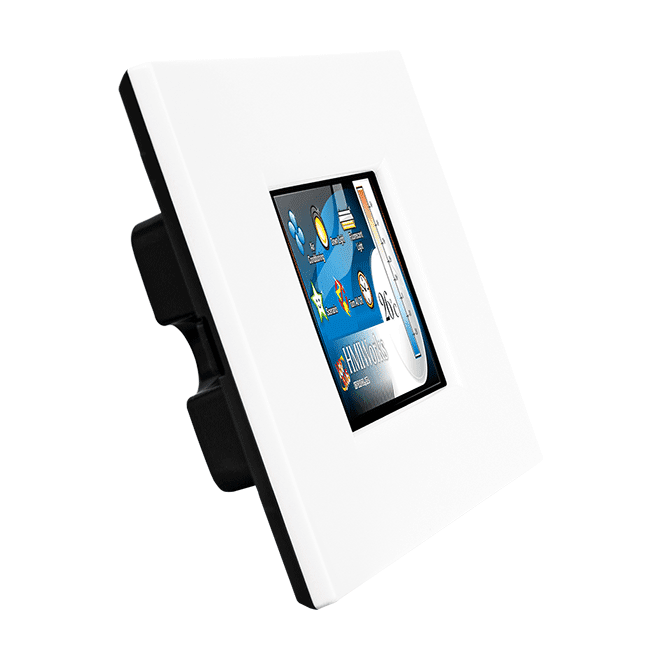

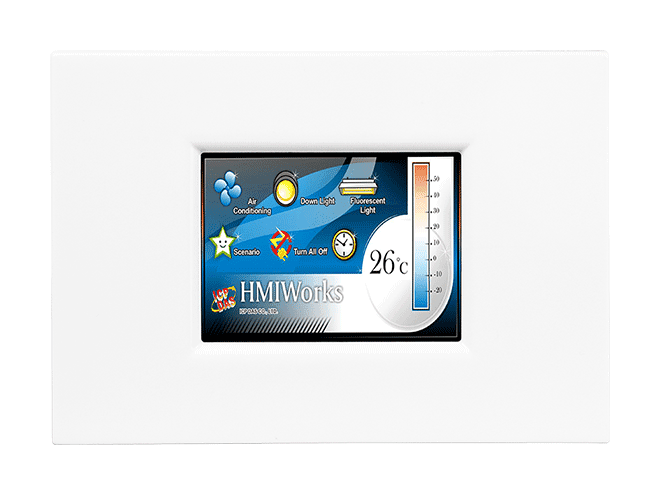

The TPD-283U-M1 CR is a compact 2.8-inch touch HMI for wall-mounted control points, where it can replace conventional mechanical switches with a programmable touch interface. It combines a 240 x 320 TFT colour display with a resistive touch panel, a buzzer, a rotary switch and a reset button.
Connectivity covers a 10/100 Base-TX Ethernet port with PoE (IEEE 802.3af, Class 1), one RS-485 port with Self-Tuner, and a USB 1.1 client port for firmware updates. The unit can also be powered from a +12 ~ 48 VDC terminal block. Modbus TCP and Modbus RTU are supported, and a custom communication protocol can be written in C.
Programming options suit both PLC-oriented and IT-oriented engineers. The free HMIWorks tool provides Ladder Designer for ladder logic and a C language environment for application development, with a GUI design facility for building the screens. The white cover variant is the colour finish of this ordering code.
Applications
- Building automation control panels
- Home automation control points
- Replacement of mechanical switches with intelligent touch control pads
| Product type: | Touch HMI |
|---|---|
| Interface: | Ethernet, RS-485, USB |
| Protocol: | Modbus RTU, Modbus TCP |
| Ports: | 2 |
| PoE: | Yes (IEEE 802.3af, Class 1) |
| Power input: | +12 ~ 48 VDC, PoE |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Wall |
| Housing: | IP40 front panel |
Technische Daten
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 2.8” TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Resistive Touch |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-485 (including Self-Tuner) |
| USB | |
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 1.5 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 127 mm x 92 mm x 31 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
